IPDM E/R

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT Function (IPDM E/R)


APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.






SELF DIAGNOSTIC RESULT

Refer to "DTCIndex"

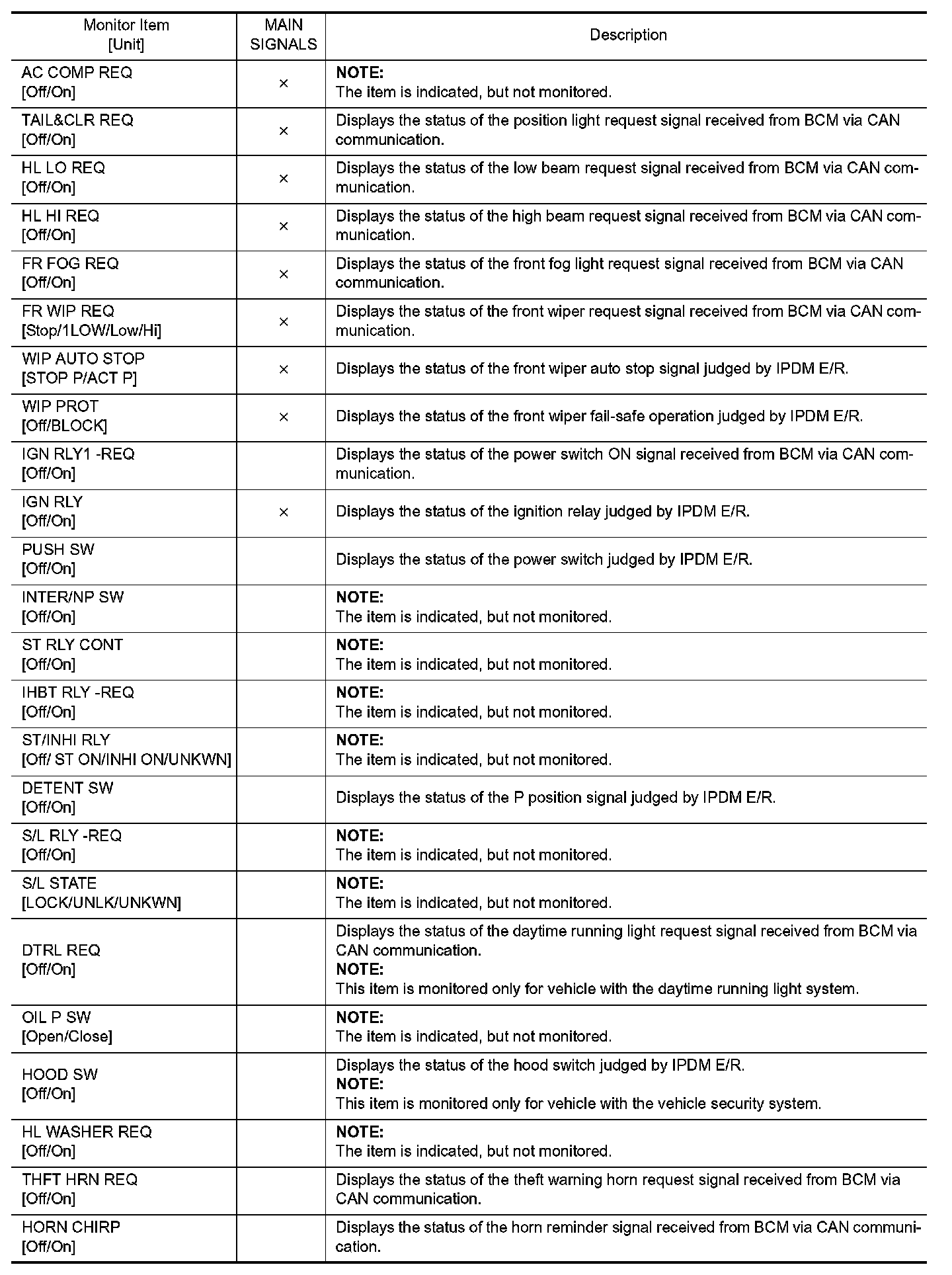

DATA MONITOR

Monitor item






ACTIVE TEST

Test item
