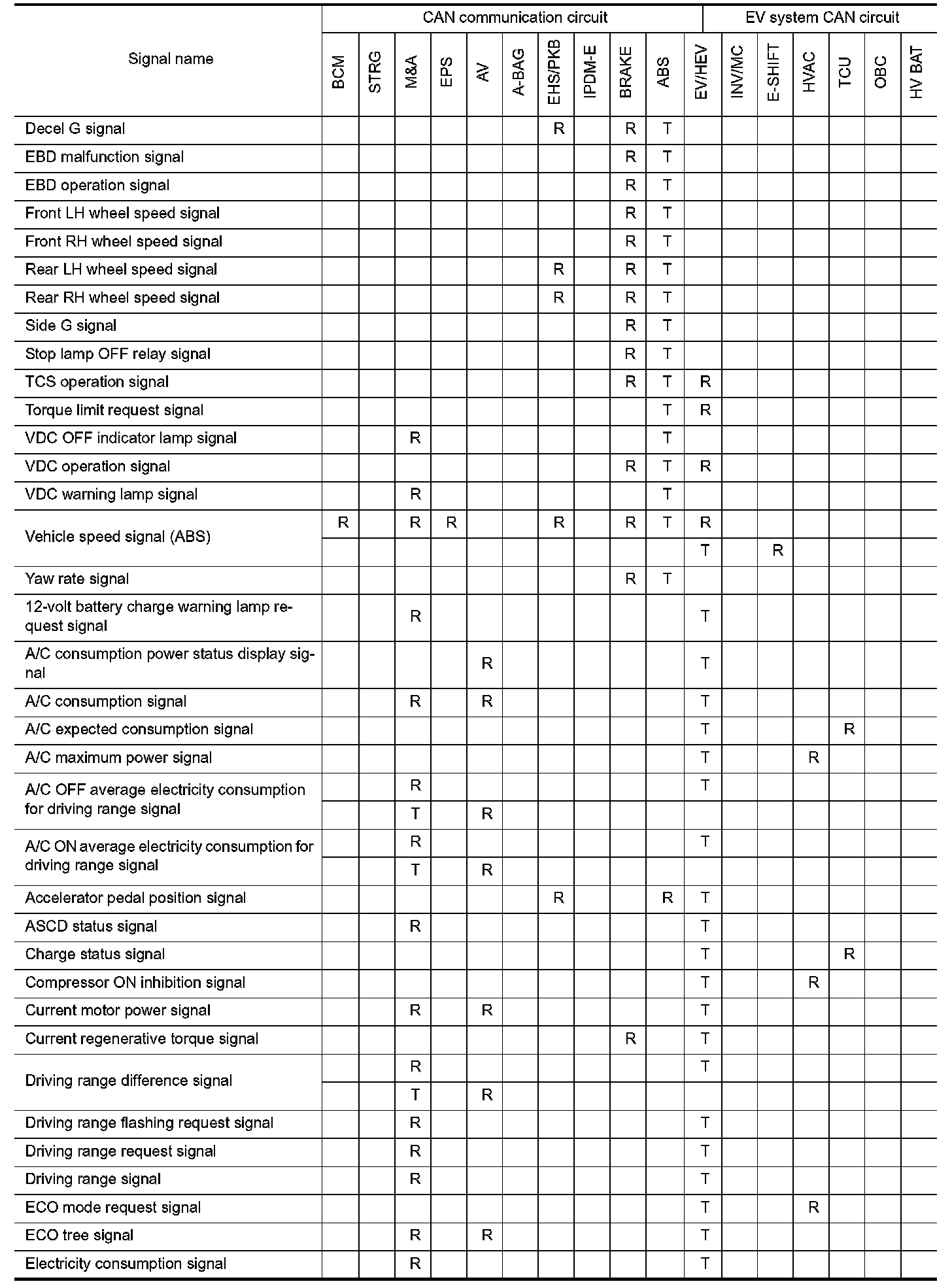

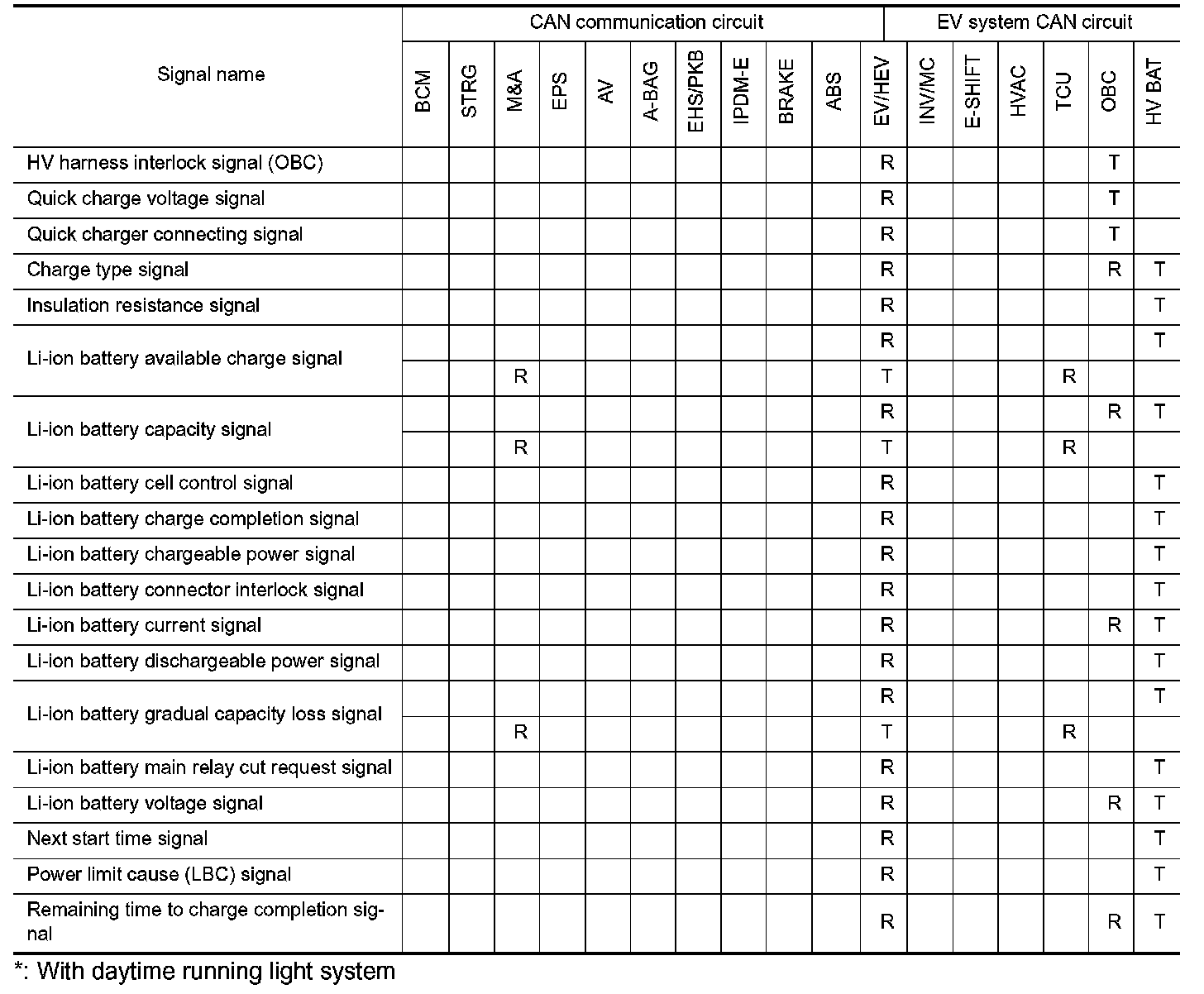

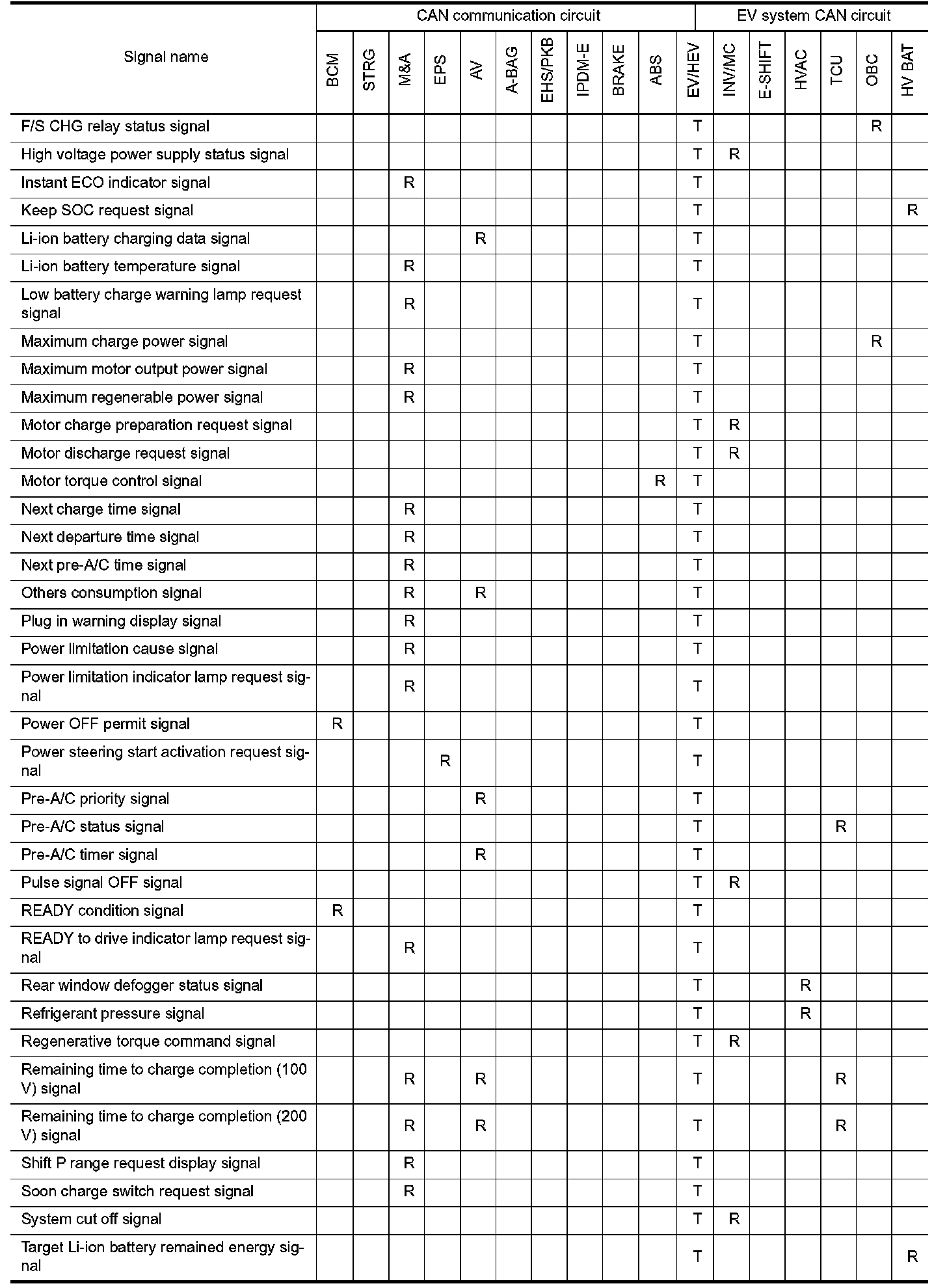

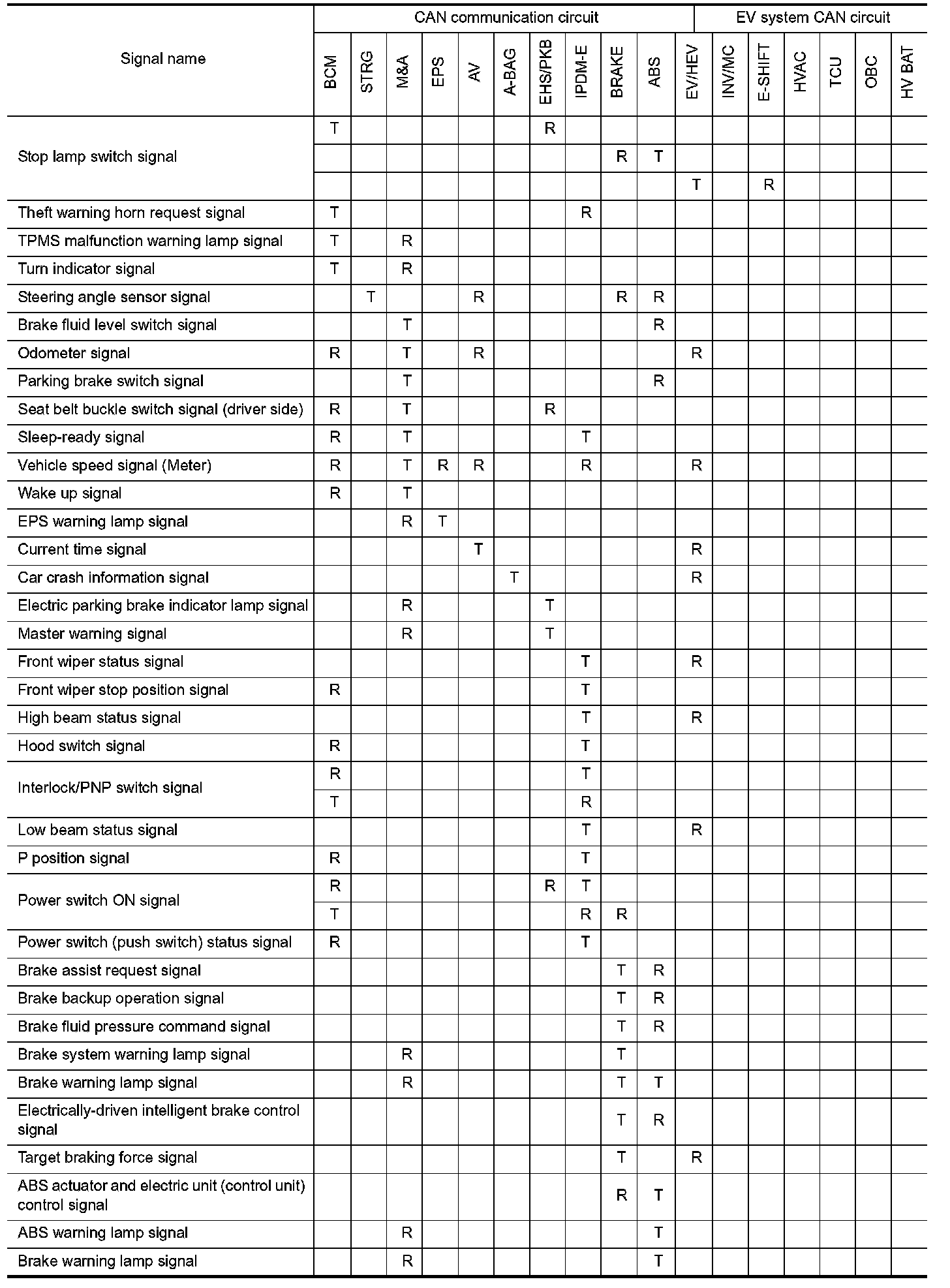

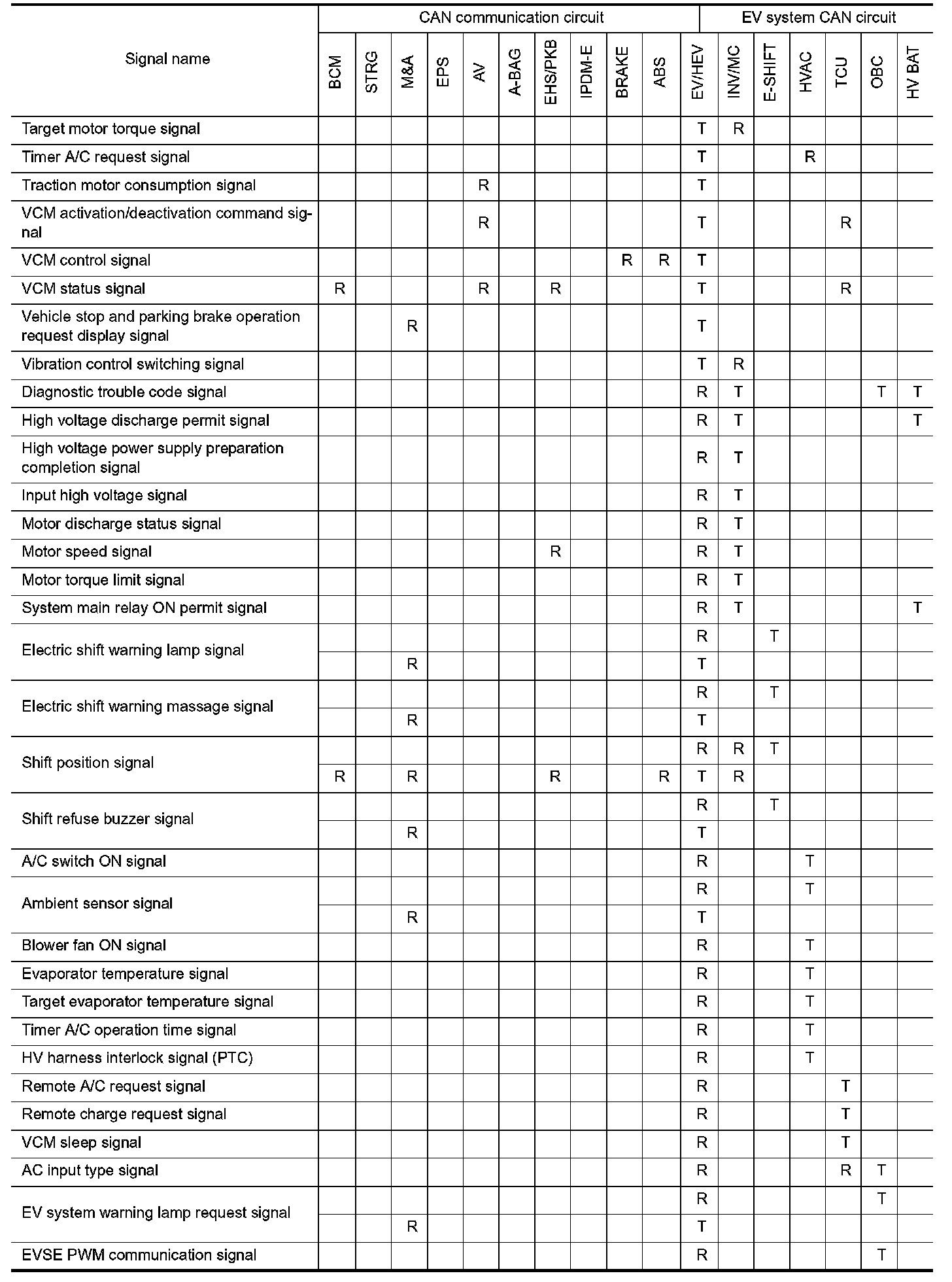

CAN Communication Signal Chart

SYSTEM

CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart

Refer to "How to Use CAN Communication Signal Chart" How To Use CAN Communication Signal Chart for how to use CAN communication signal chart.
NOTE:
Refer to "Abbreviation List" How To Use This Section for the abbreviations of the connecting units.
T: TransmitR: Receive

*: With daytime running light system
