Exploded View

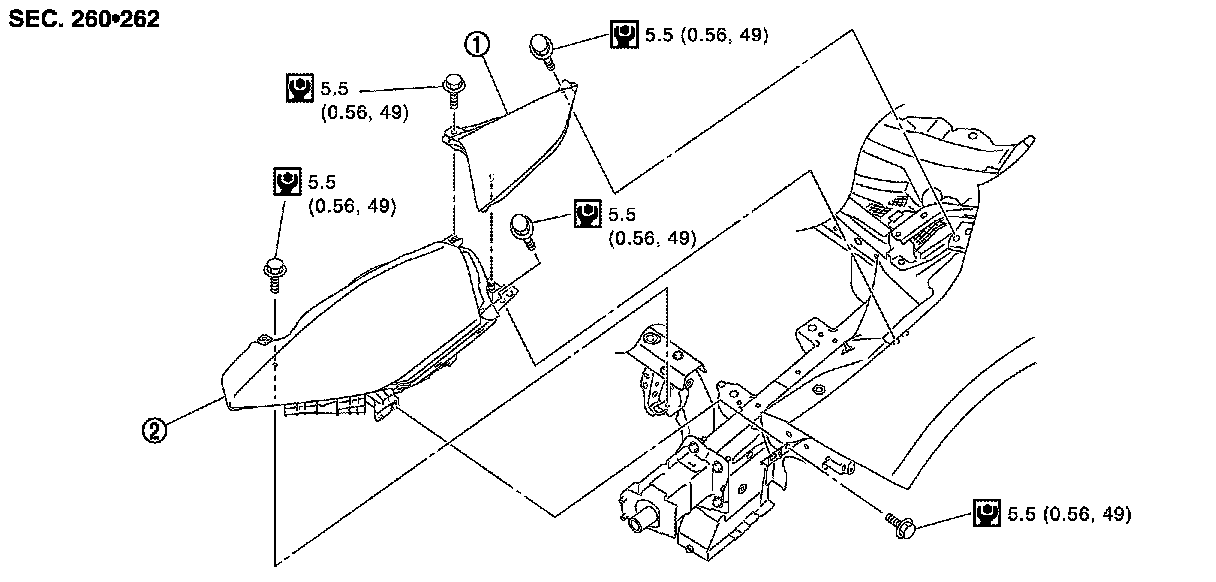

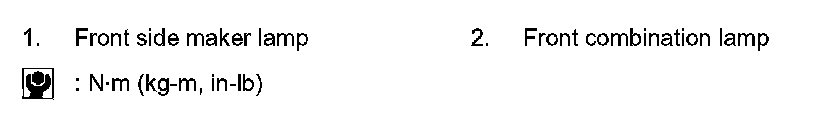

FRONT COMBINATION LAMP

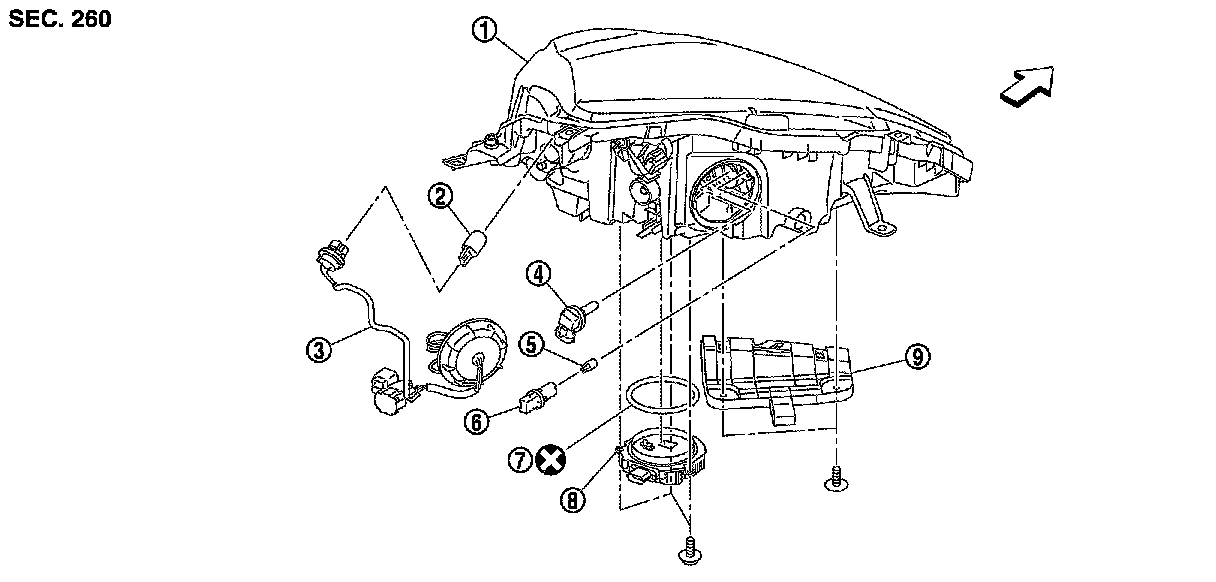

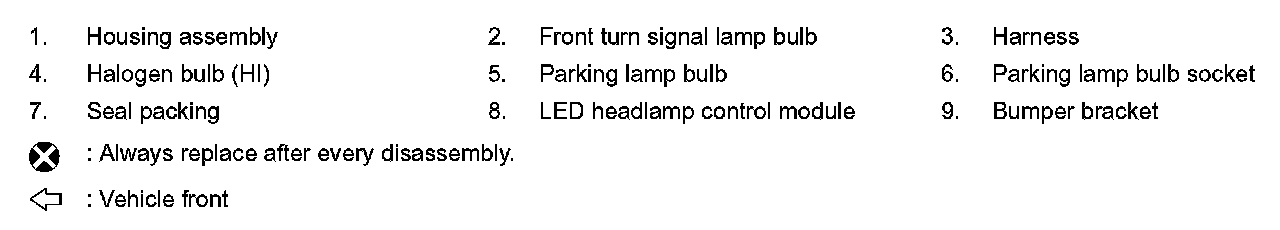

Exploded View


REMOVAL












DISASSEMBLY












CAUTION:
- Never disassemble LED headlamp (LO) unit assembly.
- Replace front combination lamp, when malfunction LED headlamp unit.
