Switch Name And Function




OPERATION

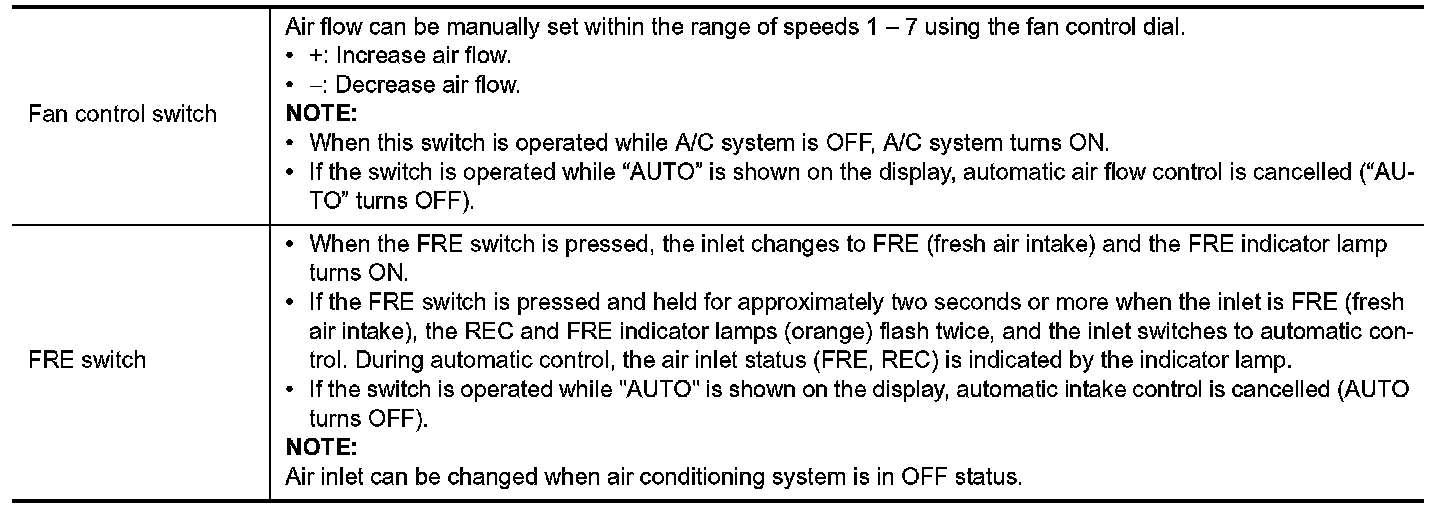

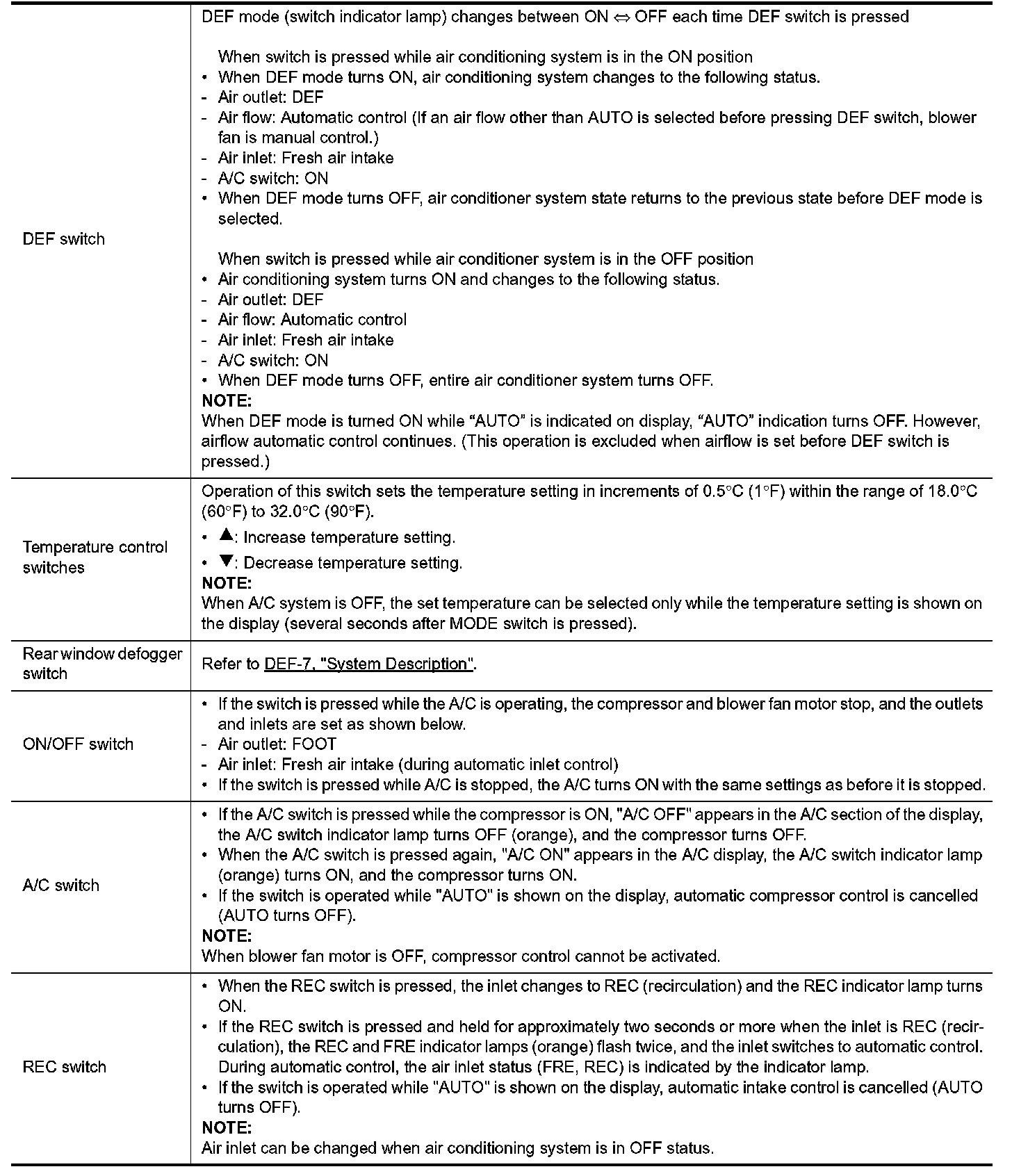

Switch Name and Function


AUTO A/C SYSTEM OPERATIONS AND DISPLAYS






A/C Status Display (Inside Display)
A/C Controller
