CONSULT Function




DIAGNOSIS SYSTEM (BCM)

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

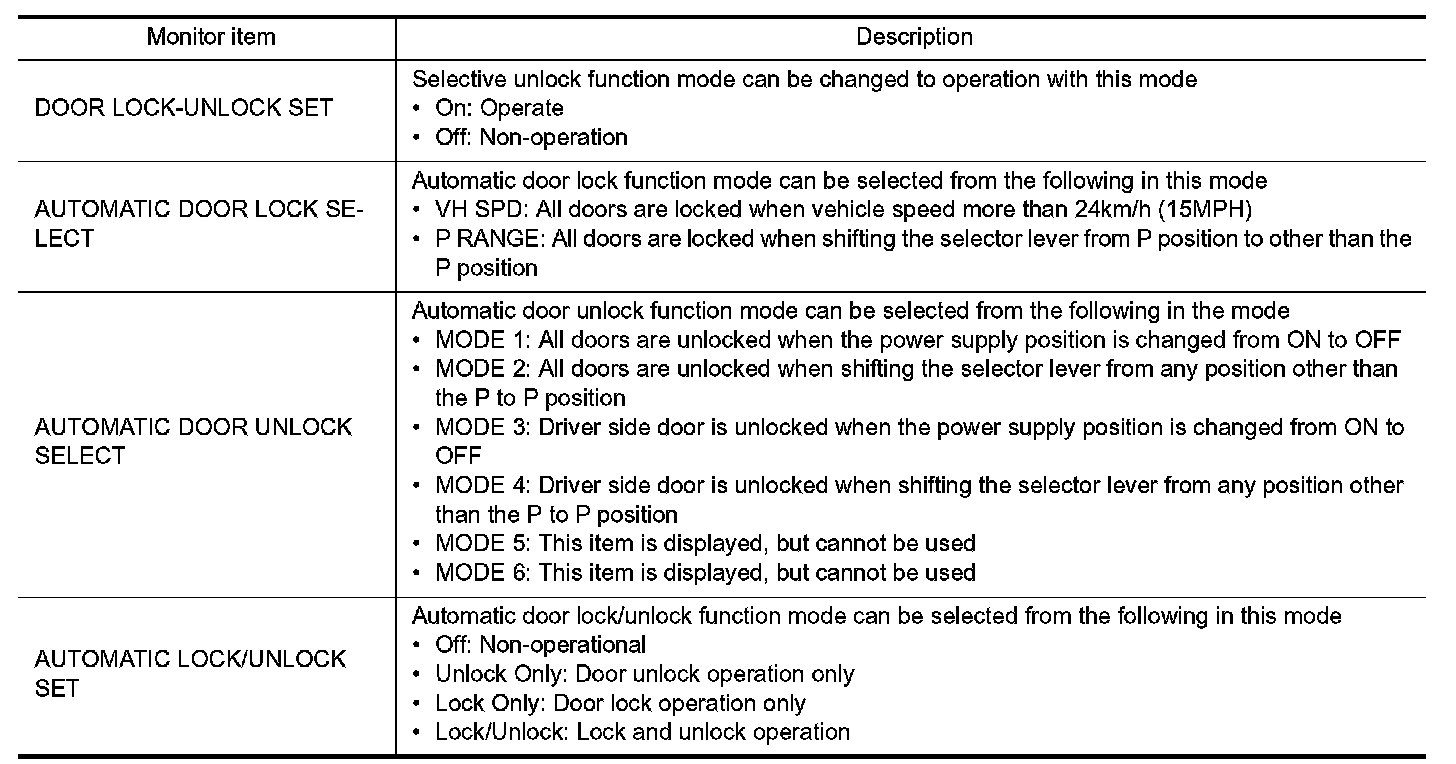

WORK SUPPORT

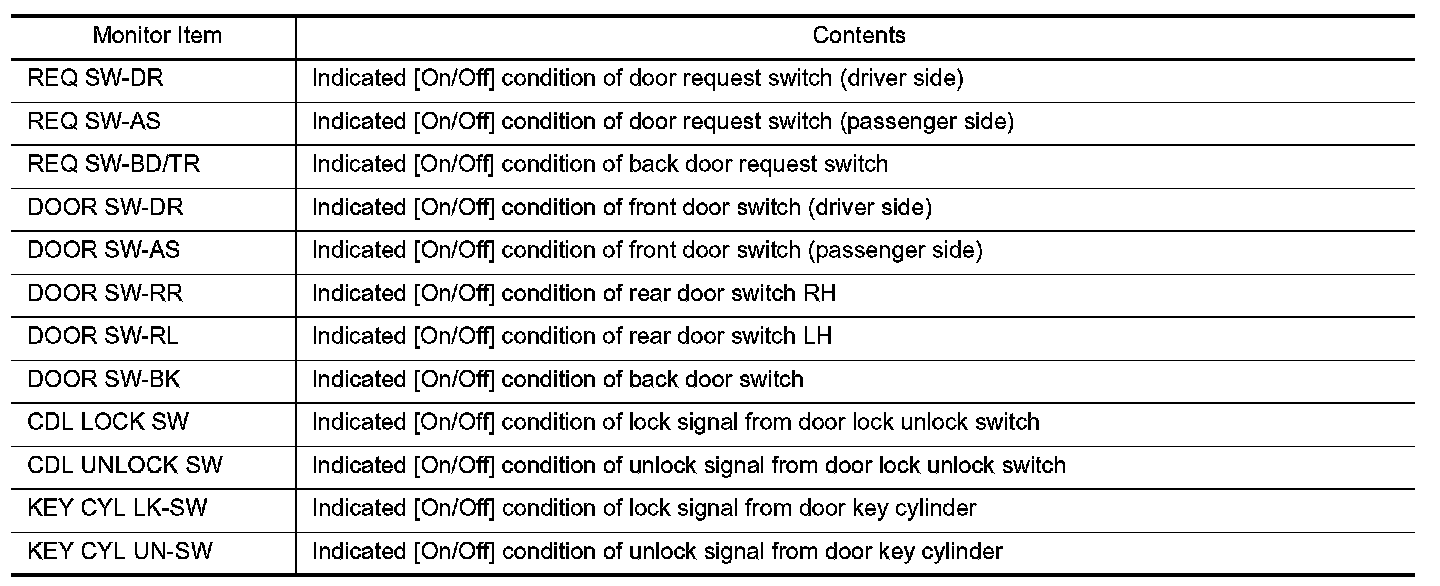

DATA MONITOR







ACTIVE TEST
