Telematics System




AV CONTROL UNIT

Reference Value


CONSULT DATA MONITOR REFERENCE VALUES

-CONSULT DATA MONITOR ITEMS

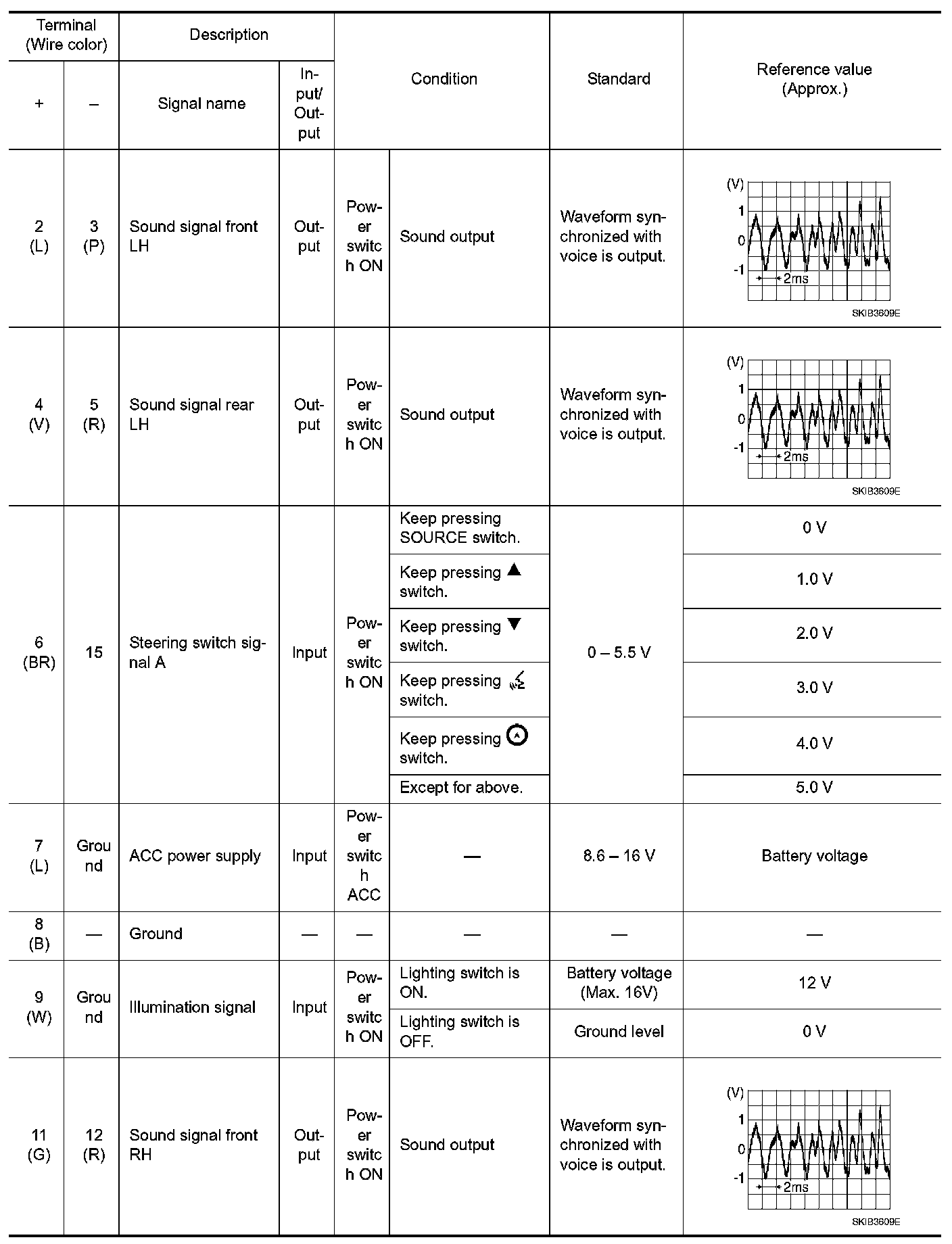

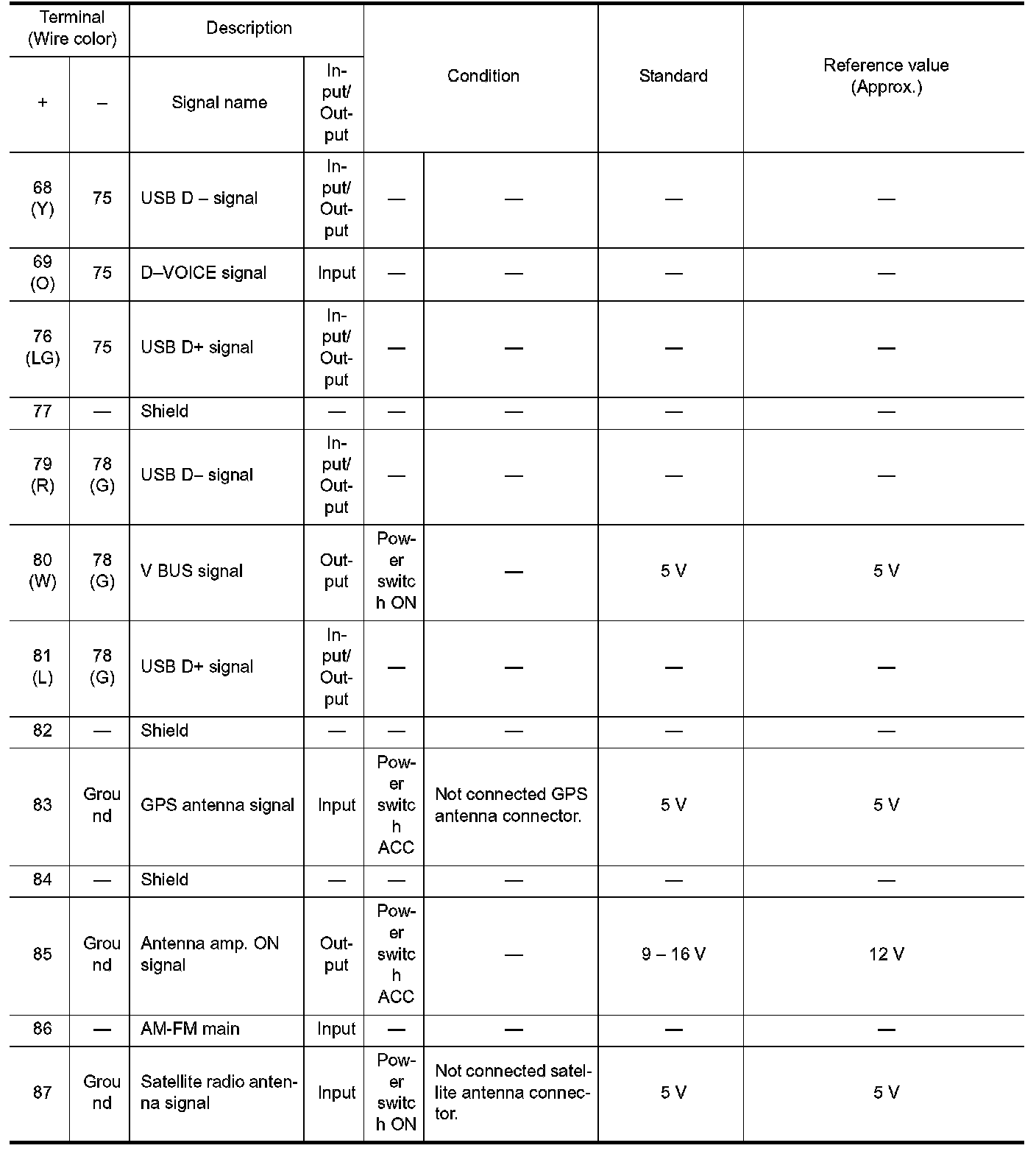

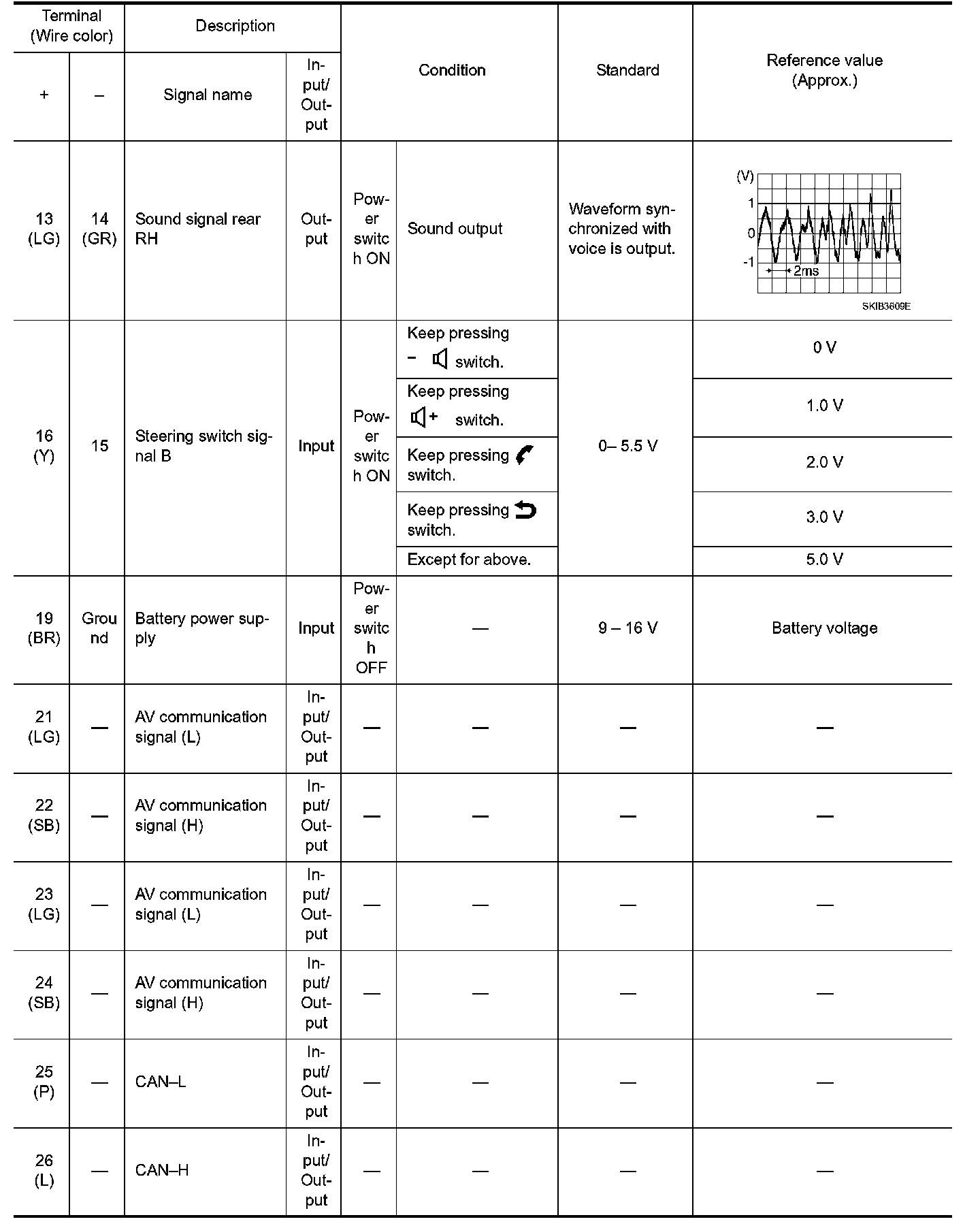

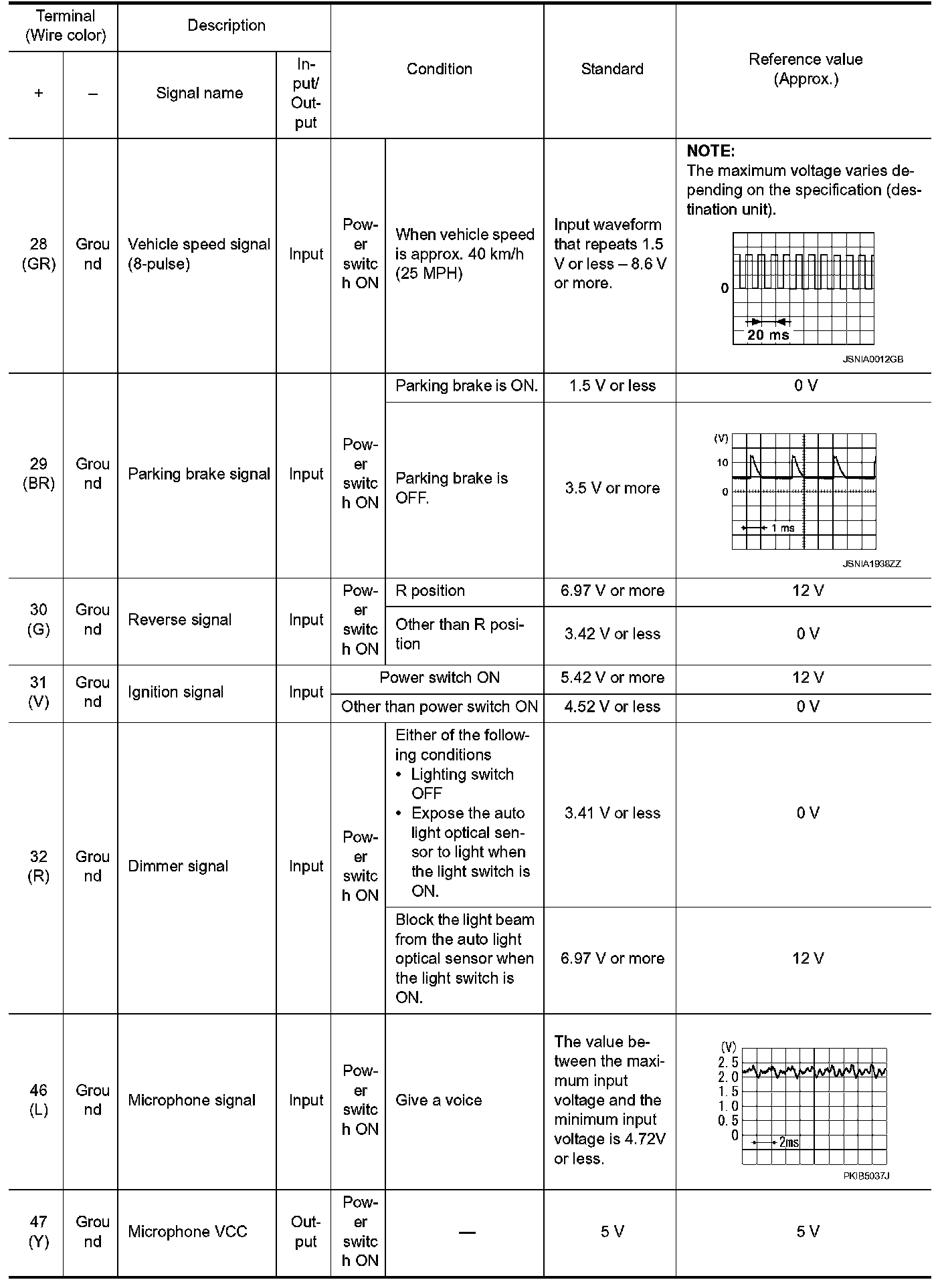

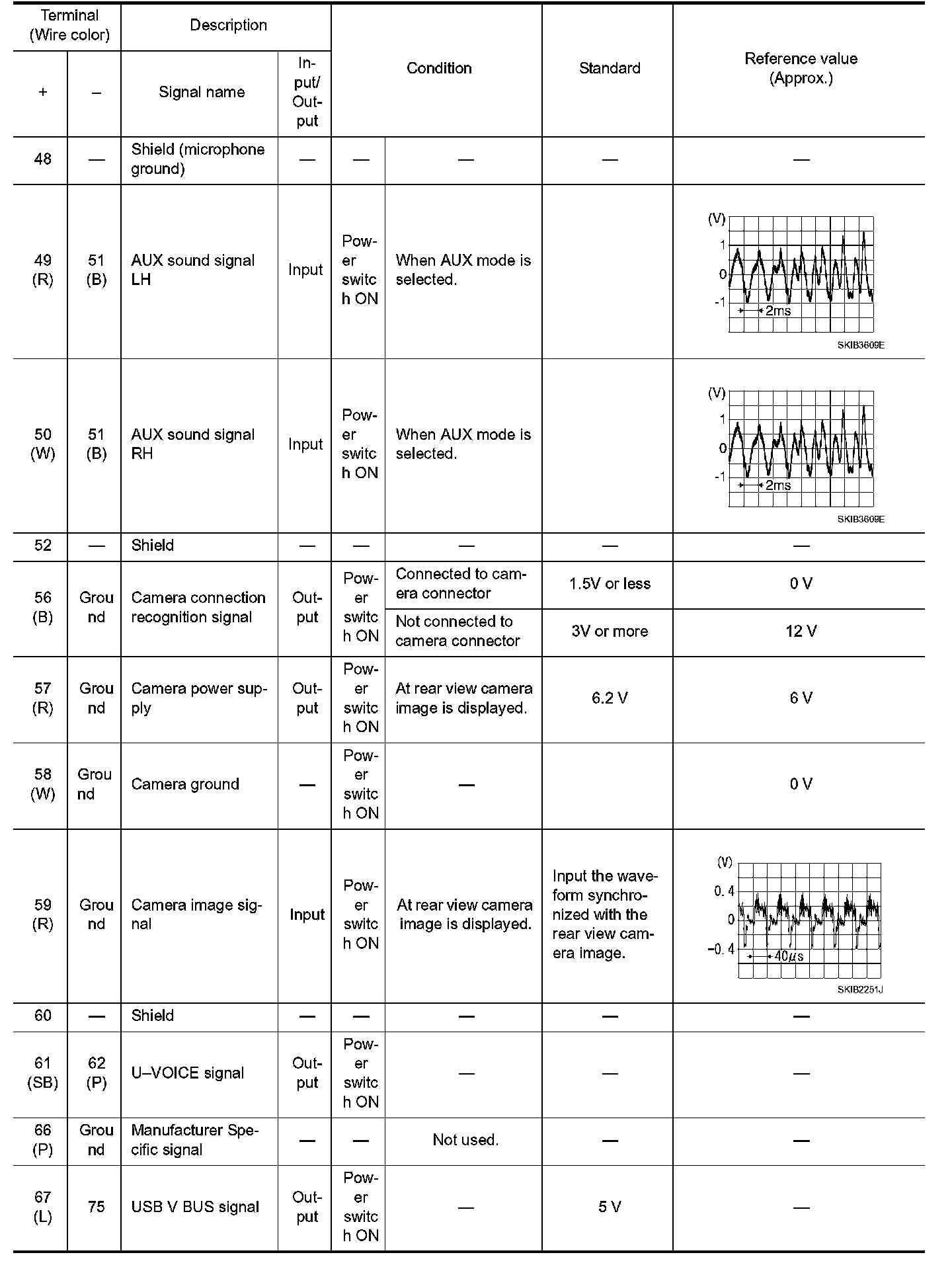

TERMINAL LAYOUT







PHYSICAL VALUES
