Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio, Visual, Navigation System (Integrated Control System)
>>
Removal And Installation
>>
Multi Display Unit
>>
Exploded View
>>
Disassembly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View: Disassembly

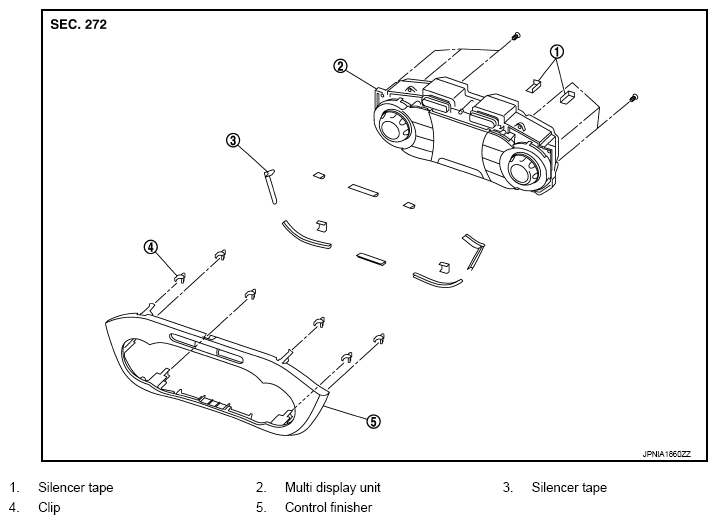

Fig 1: Exploded View Of Multi Display Unit
Courtesy of NISSAN NORTH AMERICA, INC.
