Exploded view

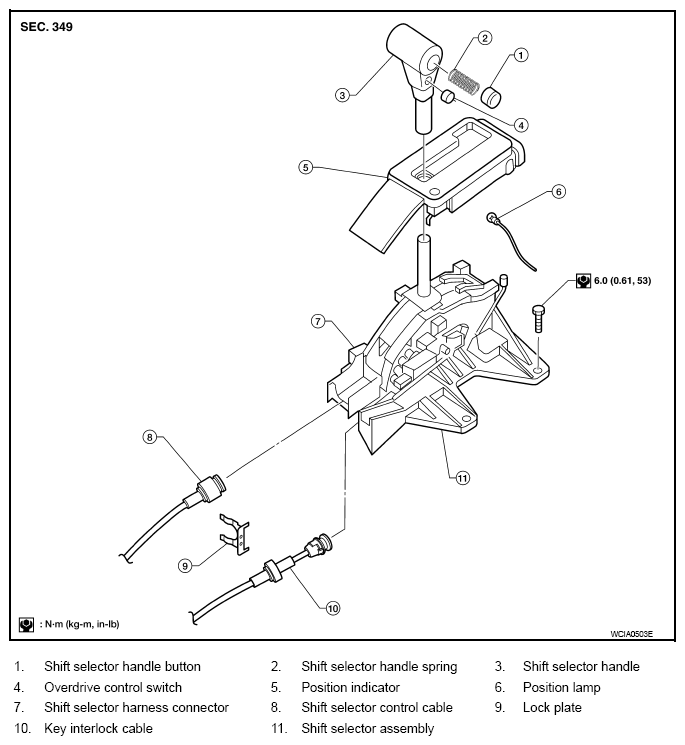

Fig 1: Exploded View Of Shift Control System With Torque Specifications
G08134884Courtesy of NISSAN NORTH AMERICA, INC.
