Final Drive

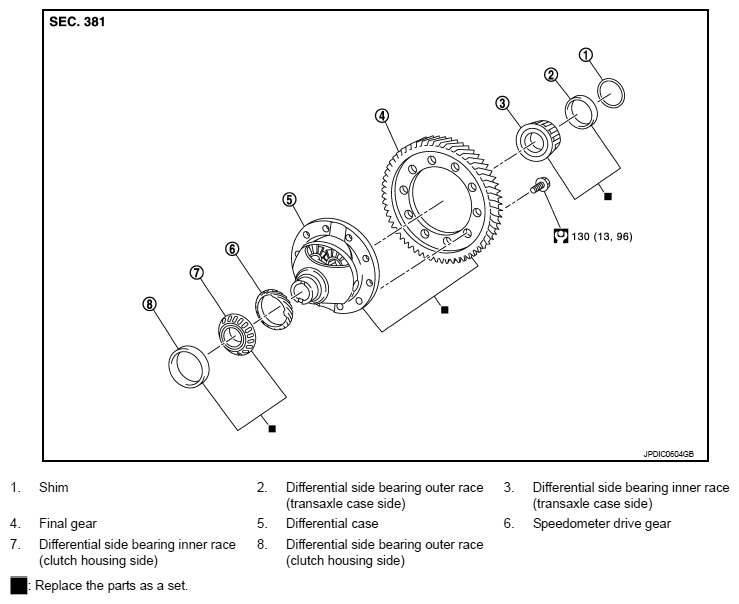

Fig 1: Exploded View Of Final Drive
G08136175Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
