Exploded View

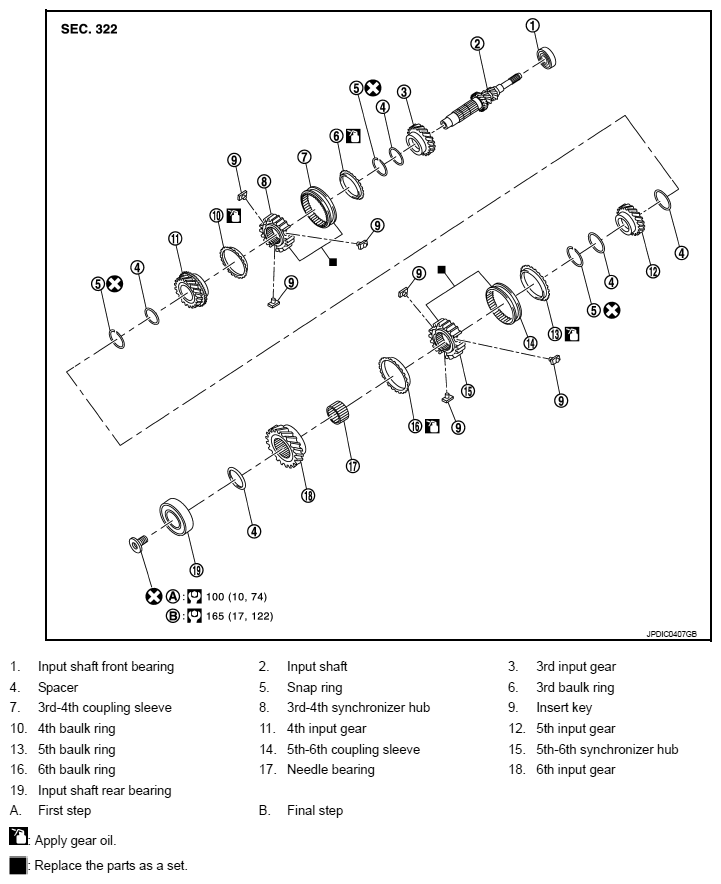

Fig 1: Exploded View Of Input Shaft And Gear
G08136222Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
