Cross-Sectional View

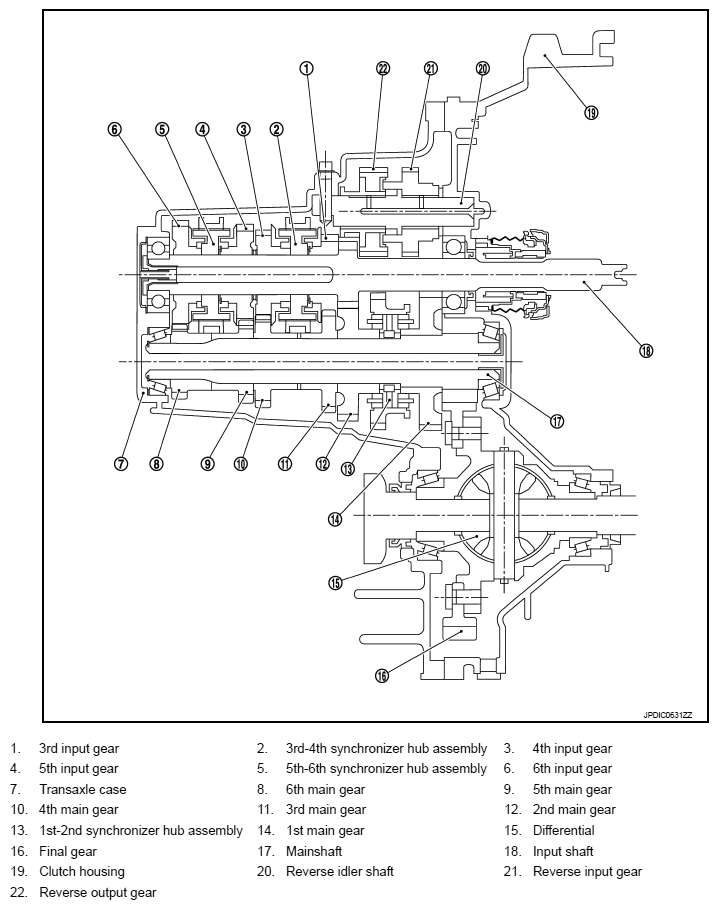

Fig 1: Cross-Sectional View Of M/T System
Courtesy of NISSAN NORTH AMERICA, INC.
