Exploded View

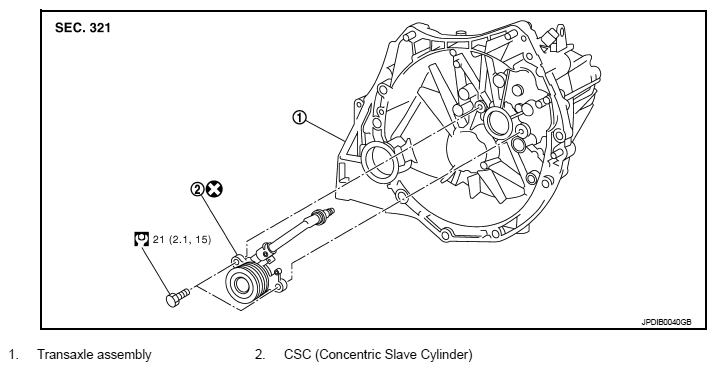

Fig 1: Exploded View Of Concentric Slave Cylinder With Torque Specification
G08136117Courtesy of NISSAN NORTH AMERICA, INC.
