Speaker check mode

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to ON (II).
Make sure the audio system is turned off.
Push and hold the No. 1 and No. 3 buttons. While holding the buttons, push the VOL PUSH PWR knob to ON. Release the buttons and the speaker check mode begins. A tone should sound from one speaker.

Each time you press the SKIP or CH button, the speaker outputs a beep sound in the listed order.

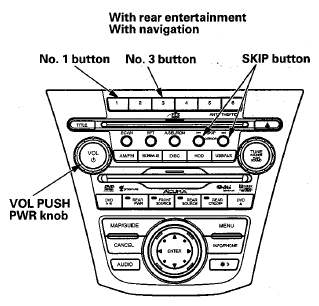

Fig 1: Identifying Audio System Buttons (With Rear Entertainment And With Navigation)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

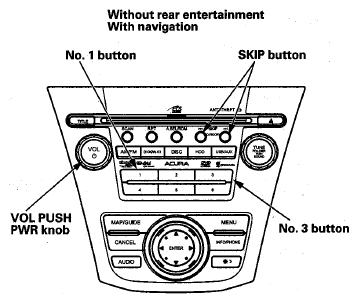

Fig 2: Identifying Audio System Buttons (Without Rear Entertainment And With Navigation)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying Audio System Buttons (Without Navigation)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying CH Button

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Display Specifications

With navigation

( ) is pressed: (1)→(2)→(3)→(4)→(5)→(6)→(7)→(8)→(9)

( ) is pressed: (1)→(9)→(8)→(7)→(6)→(5)→(4)→(3)→(2)

Without navigation

( ) is pressed: (1)→(2)→3→4→5→6→7

( ) is pressed: (1)→(7)→6→5→4→3→2

WITH NAVIGATION

	Speaker	Displayed Segments	Remarks
(1)	Driver's door speaker and left tweeter	SPKR FR-L	You should hear a tone corresponding to the speaker
(2)	Center speaker	SPKR CENTER	You should hear a tone corresponding to the speaker
(3)	Front Passenger's door speaker and right tweeter	SPKR FR-R	You should hear a tone corresponding to the speaker
(4)	Right rear door speaker	SPKR RR-R	You should hear a tone corresponding to the speaker
(5)	Right satellite speaker	SPKR SURROUND-R	You should hear a tone corresponding to the speaker
(6)	Subwoofer	SPKR SUBWOOFER	You should hear a tone corresponding to the speaker
(7)	Left rear door speaker	SPKR RR-L	You should hear a tone corresponding to the speaker
(8)	Left satellite speaker	SPKR SURROUND-L	You should hear a tone corresponding to the speaker
(9)	All Speakers	SPKR ALL	You should hear a tone corresponding to the speaker The subwoofer does not sound atone

WITHOUT NAVIGATION

	Speaker	Displayed Segments	Remarks
(1)	Driver's door speaker and left tweeter	SPKR FR-L	You should hear a tone corresponding to the speaker
(2)	Center speaker	SPKR CENTER	You should hear a tone corresponding to the speaker
(3)	Front Passenger's door speaker and right tweeter	SPKR FR-R	You should hear a tone corresponding to the speaker
(4)	Right rear door speaker	SPKR RR-R	You should hear a tone corresponding to the speaker
(5)	Subwoofer	SPKR SUBWOOFER	You should hear a tone corresponding to the speaker
(6)	Left rear door speaker	SPKR RR-L	You should hear a tone corresponding to the speaker
(7)	All Speakers	SPKR ALL	You should hear a tone corresponding to the speaker The subwoofer does not sound atone

NOTE: Any other diagnostic screens are for factory use only.

The speaker check mode ends when you turn the audio system off, or turn the ignition switch to LOCK (0).
