Overall Sequence

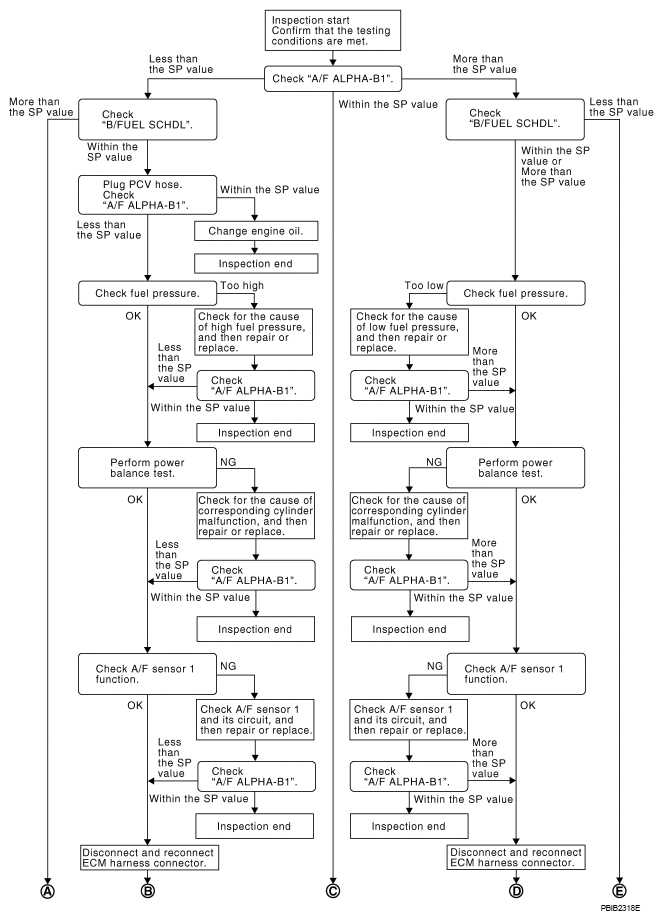

Fig 1: Identifying Diagnostic Procedure Chart Overall Sequence (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

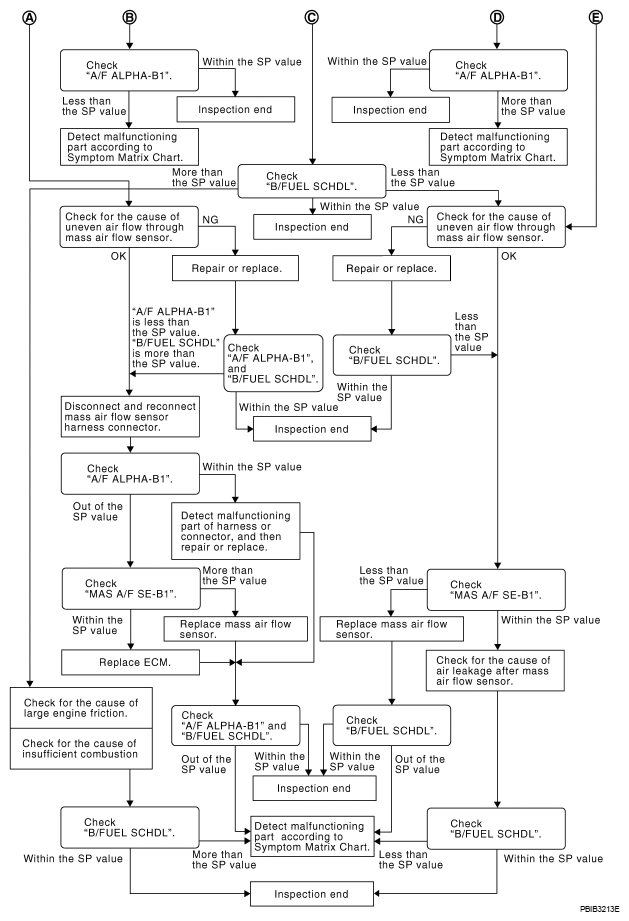

Fig 2: Identifying Diagnostic Procedure Chart Overall Sequence (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
