Exploded View: Disassembly

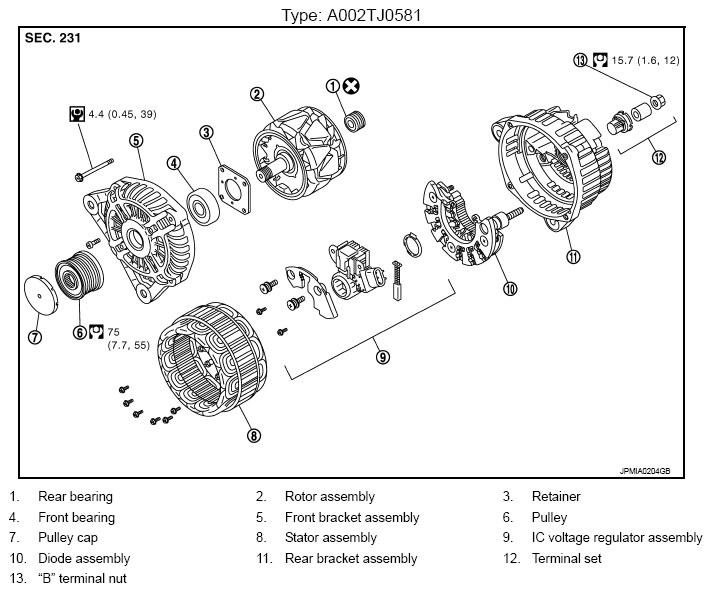

Fig 1: Disassembled View Of Alternator With Torque Specifications
G08129222Courtesy of NISSAN NORTH AMERICA, INC.
