Abs Actuator And Electric Unit (Control Unit)
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

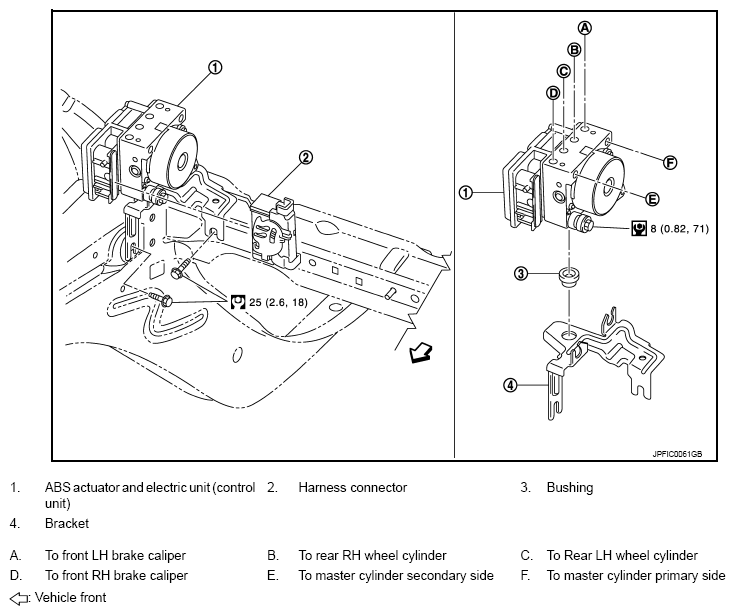

Fig 1: Exploded View Of ABS Actuator & Electric Unit (Control Unit) With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
