System Application

WARNING: This page is about a different variant/trim than selected.

BCM can perform the following functions.

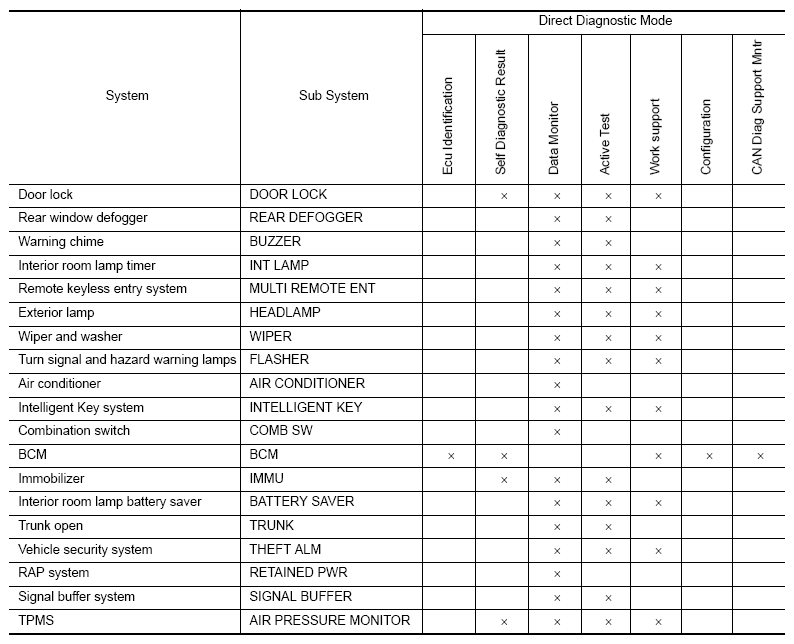

Fig 1: BCM System Application Chart
G08438177Courtesy of NISSAN NORTH AMERICA, INC.
