Control Valve: Removal

  1. Remove drain plug from oil pan and then drain the CVT fluid.
  2. Remove drain plug gasket.
  3. Disconnect battery cable from negative terminal. Refer to "REMOVAL AND INSTALLATION (MR20DE BATTERY) ", or "REMOVAL AND INSTALLATION (QR25DE BATTERY) ".
  4. Disconnect the CVT unit connector. Refer to "REMOVAL AND INSTALLATION PROCEDURE FOR CVT UNIT CONNECTOR ".
  5. Remove the snap ring (1) from the CVT unit connector (A).

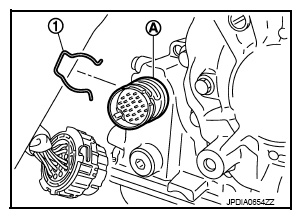

    Fig 1: Removing Snap Ring From CVT Unit Connector
    G07139229Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Press the CVT unit connector (A) into the transaxle case.
    CAUTION: Never damage the CVT unit connector.
    NOTE: Clean around the connector to prevent foreign materials from entering into the transaxle case.
    Fig 2: Location Of CVT Unit Connector
    G07139230Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove the oil pan bolts, and then remove the oil pan and oil pan gasket.
  8. Remove the magnets from the oil pan.
  9. Remove the lock nut (1) and washer (2), and then remove the manual plate (3).
  10. Remove the collar (4) from the manual shaft (A).
    CAUTION: Never drop the collar.

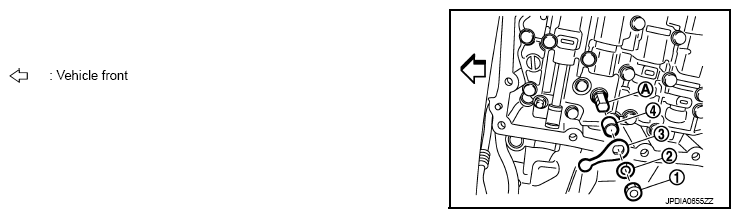

    Fig 3: Removing Collar From Manual Shaft
    G07139231Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Disconnect the connectors (A) and (B).

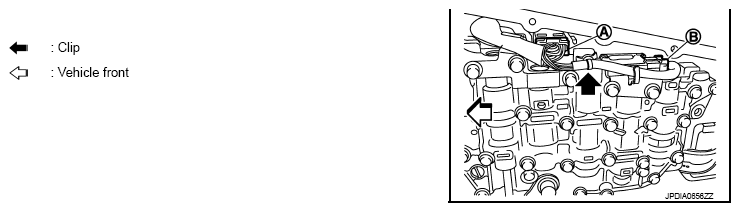

    Fig 4: Disconnecting Connectors
    G07139232Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove the oil strainer assembly bolts (A) and (B), and then remove the oil strainer assembly (1).
  13. Remove O-ring from oil strainer assembly.

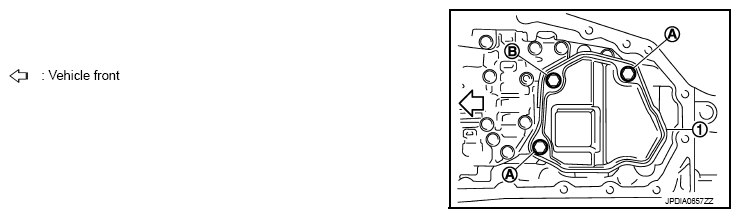

    Fig 5: Removing O-Ring From Oil Strainer Assembly
    G07139233Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove the bracket (1).

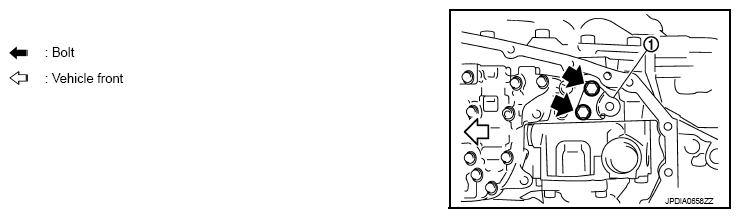

    Fig 6: Removing Bracket
    G07139234Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove the control valve bolts (A) and (B), and then remove the control valve from the transaxle case.

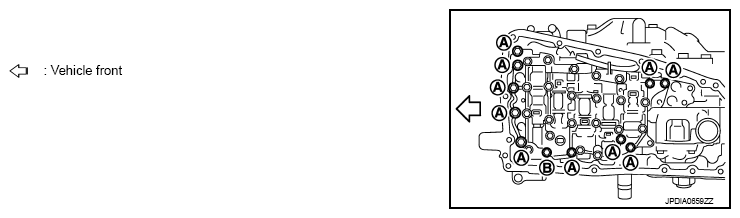

    Fig 7: Removing Control Valve Bolts
    G07139235Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never drop the control valve, ratio control valve and manual shaft.
  16. Remove CVT unit connector (A) from the transaxle case inside.

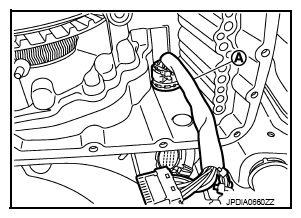

    Fig 8: Removing CVT Unit Connector From Transaxle Case Inside
    G07139236Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Remove the lip seal (1) from the transaxle case.

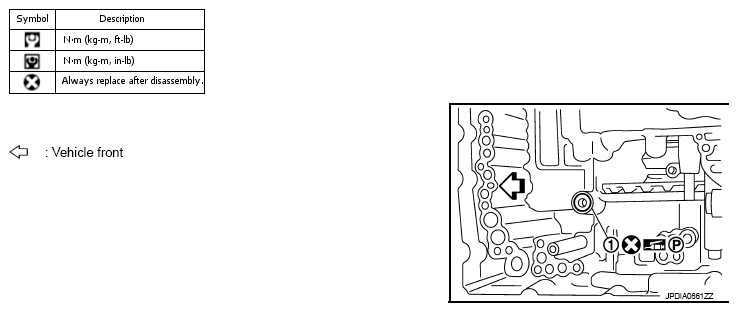

    Fig 9: Removing Lip Seal From Transaxle Case
    G07139237Courtesy of NISSAN MOTOR CO., U.S.A.
