Vacuum Hose Drawing

WARNING: This page is about a different variant/trim than selected.

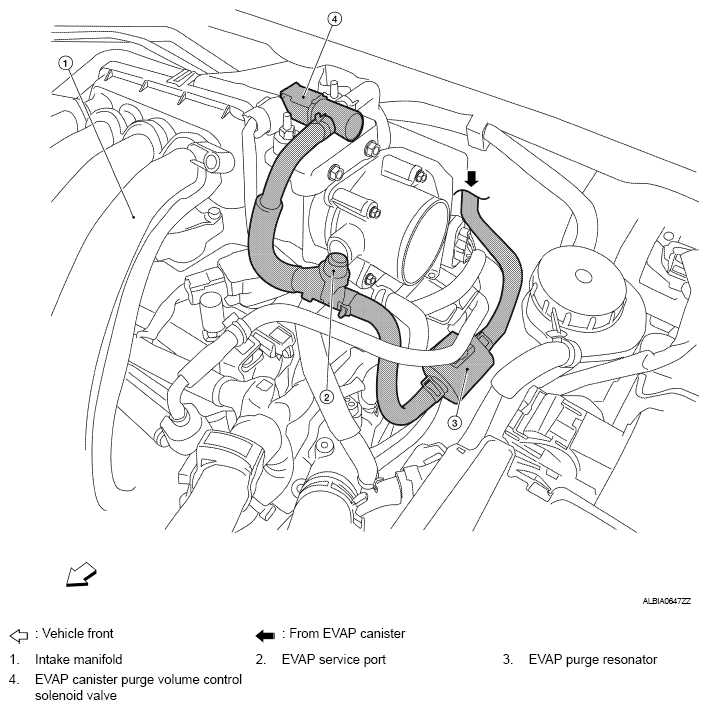

Fig 1: Location Of Vacuum Hose Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

Refer to "SCHEMATIC " for Vacuum Control System .
