Disassembly and Assembly: Components

WARNING: This page is about a different variant/trim than selected.

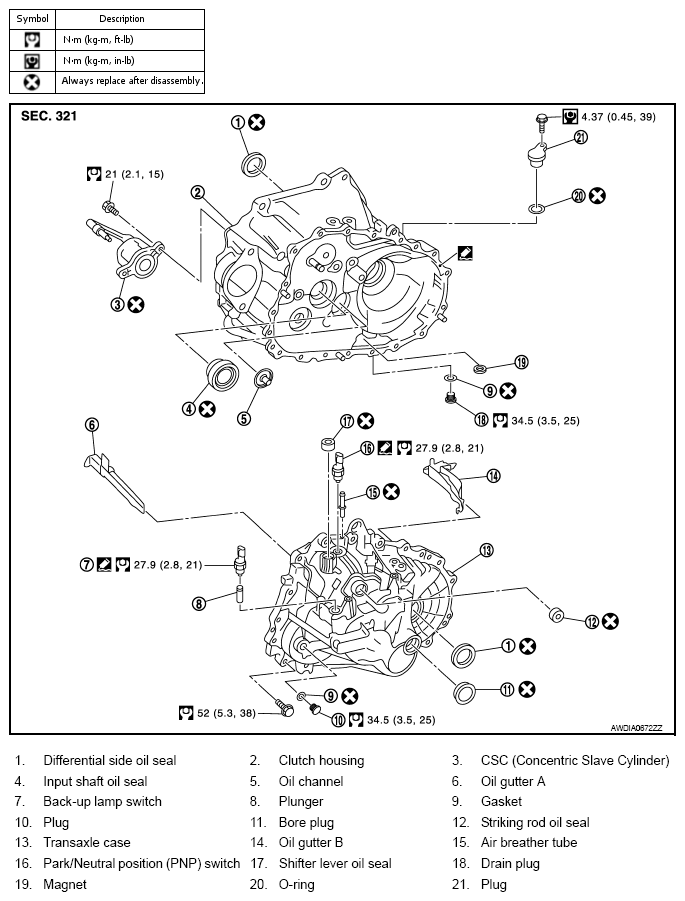

Case and Housing Components

Fig 1: Exploded View Of Case And Housing Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Gear Components

Fig 2: Exploded View Of Gear Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

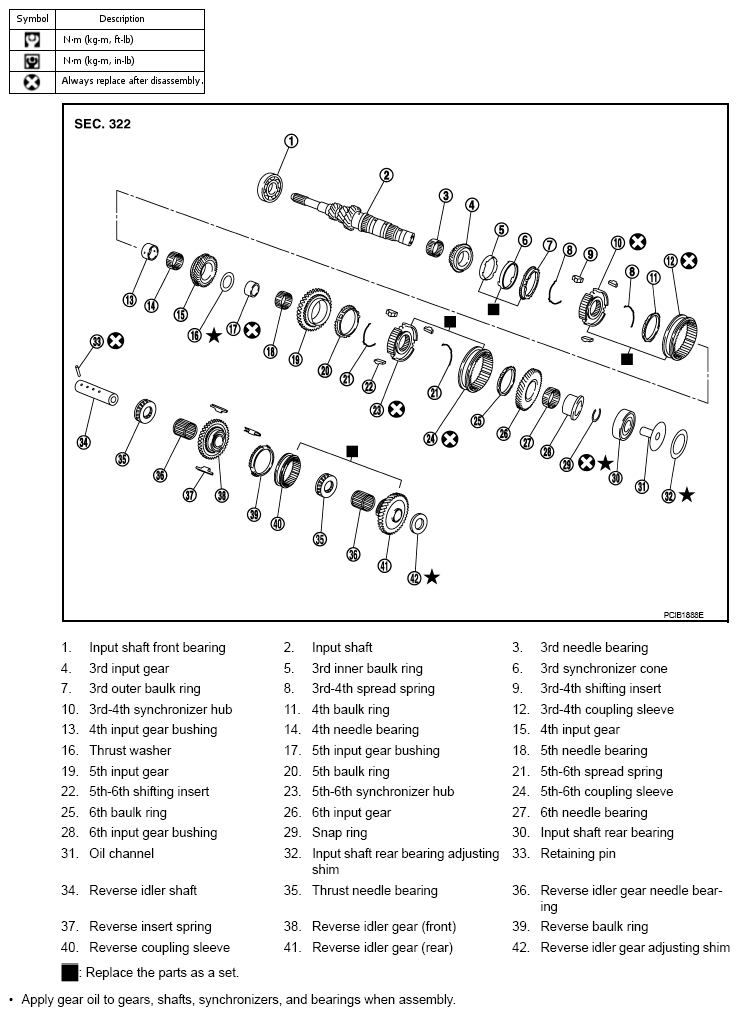

Fig 3: Exploded View Of Gear Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

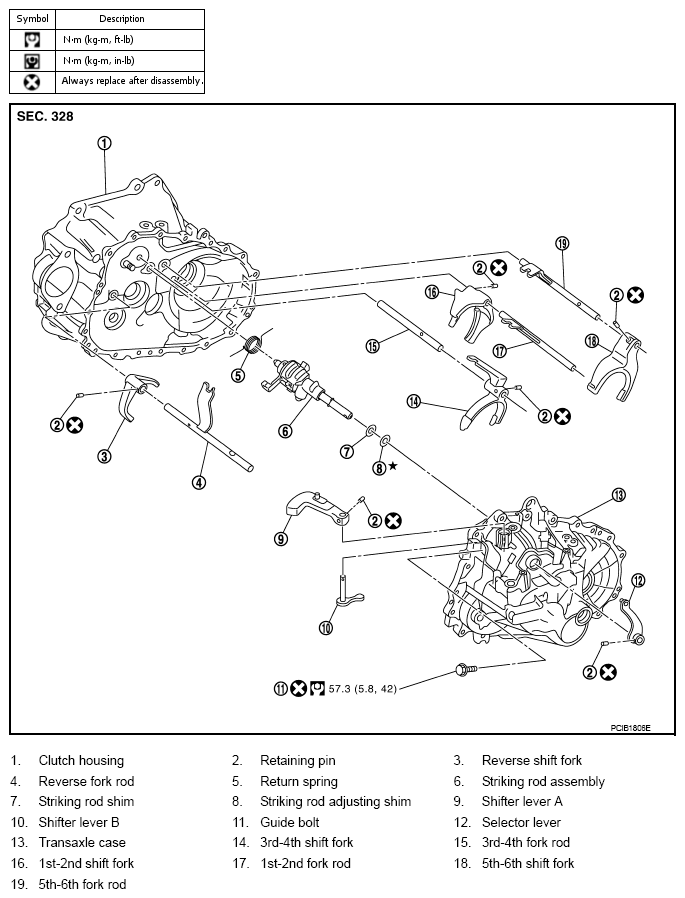

Shift Control Components

Fig 4: Exploded View Of Shift Control Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

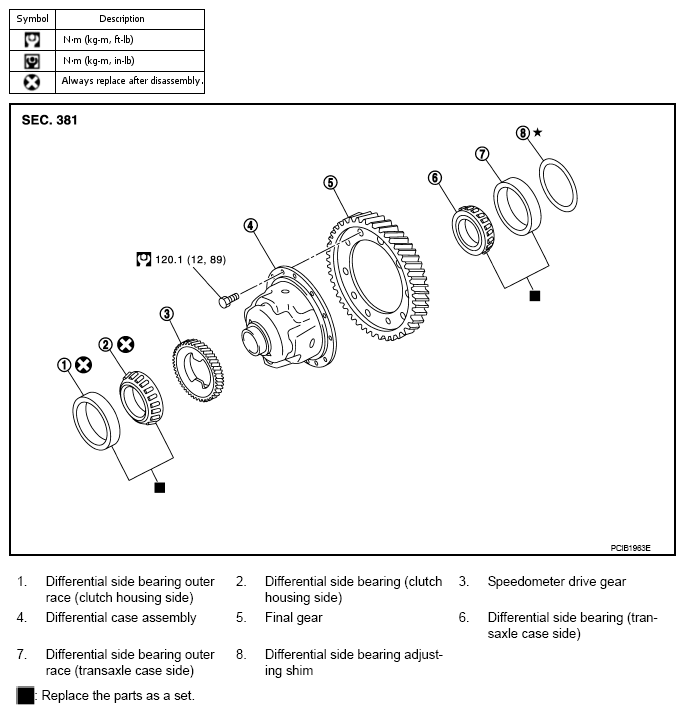

Final Drive Components

Fig 5: Exploded View Of Final Drive Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
