Removal and Installation MR20DE: Notes

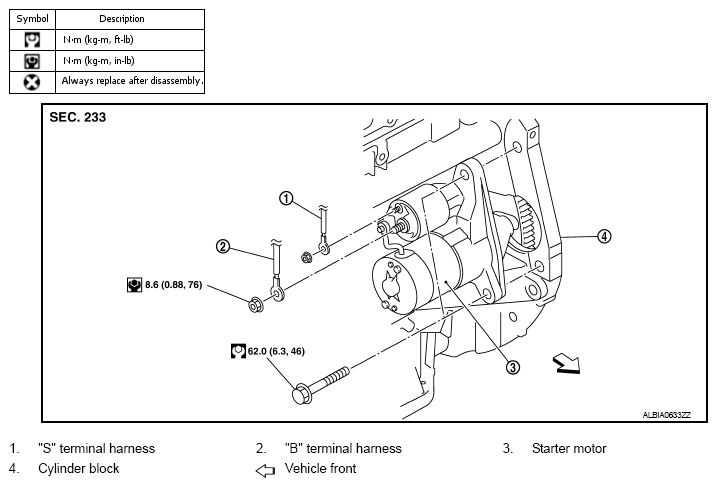

Fig 1: Exploded View Of S & B Terminal Harness, Starter Motor & Cylinder Block With Torque Specifications
G07143151Courtesy of NISSAN MOTOR CO., U.S.A.
