Service Information
>>
Audio
>>
Schematic
>>
Mid System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Mid System

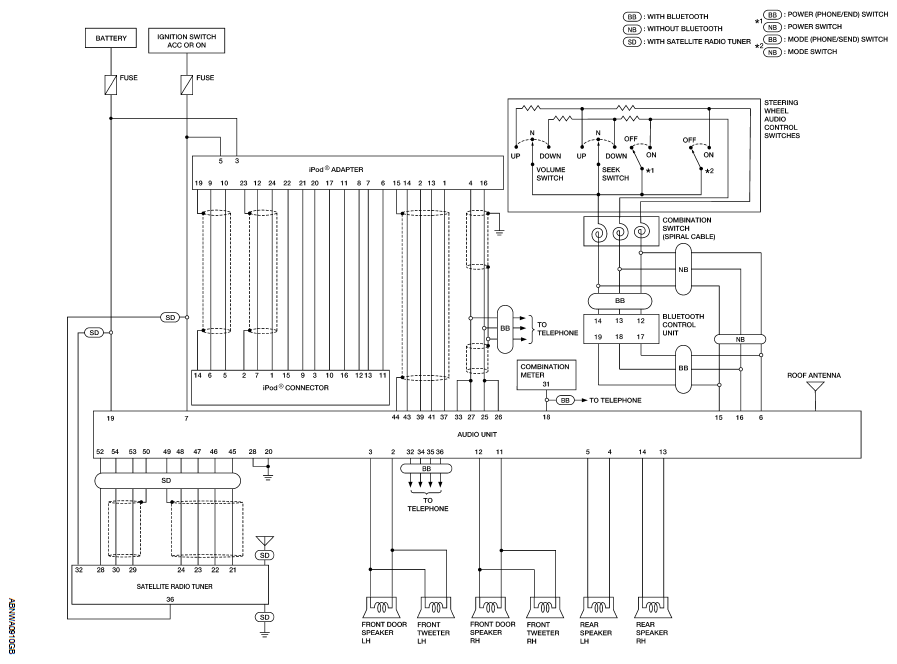

Fig 1: MID System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
