System Description
>>
System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

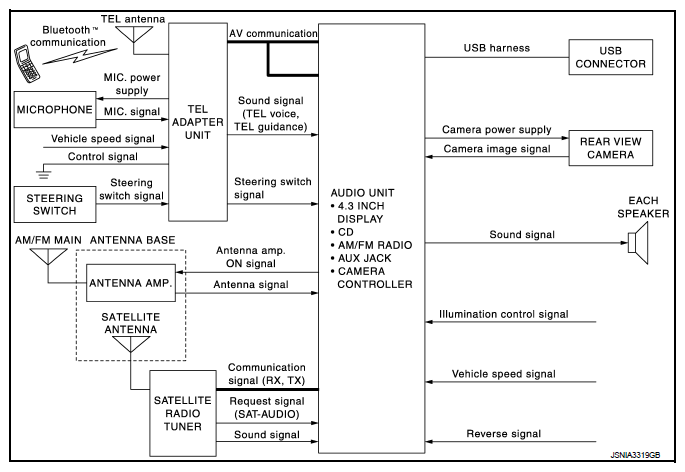

Fig 1: Display Audio System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Fig 2: Radio And Satellite Radio Antenna System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
