Opera Window
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

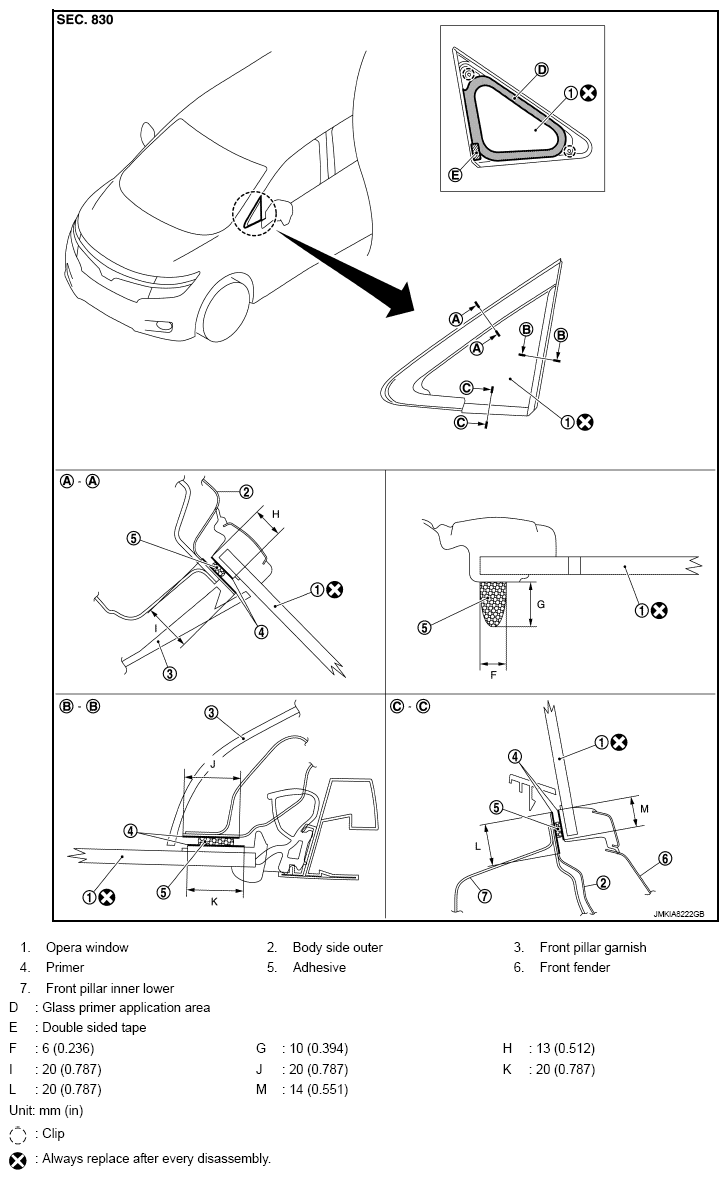

Fig 1: Exploded View Of Opera Window
Courtesy of NISSAN MOTOR CO., U.S.A.
