Wiring Diagram-ENGINE CONTROL SYSTEM-

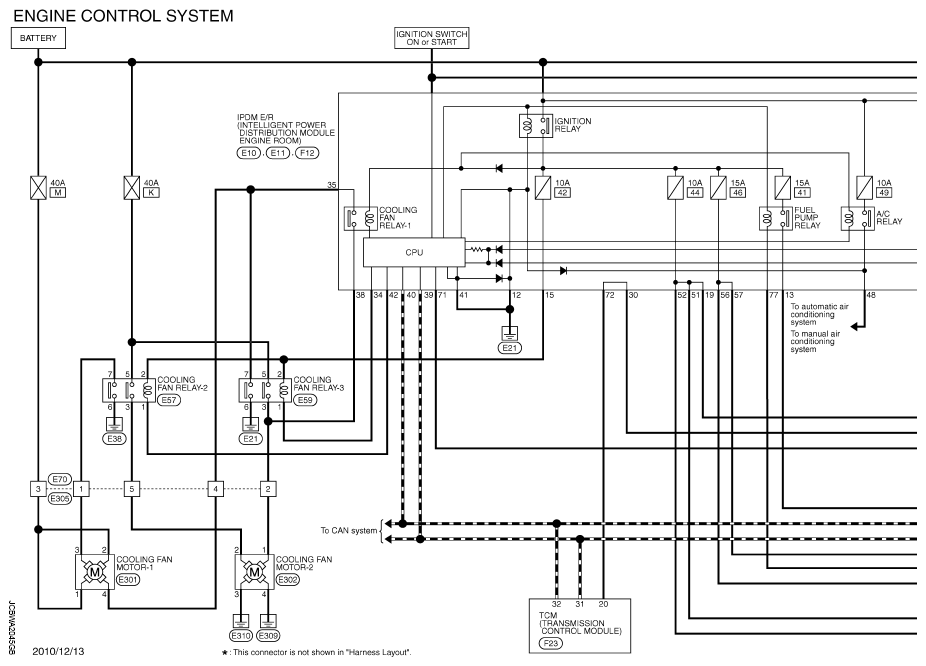

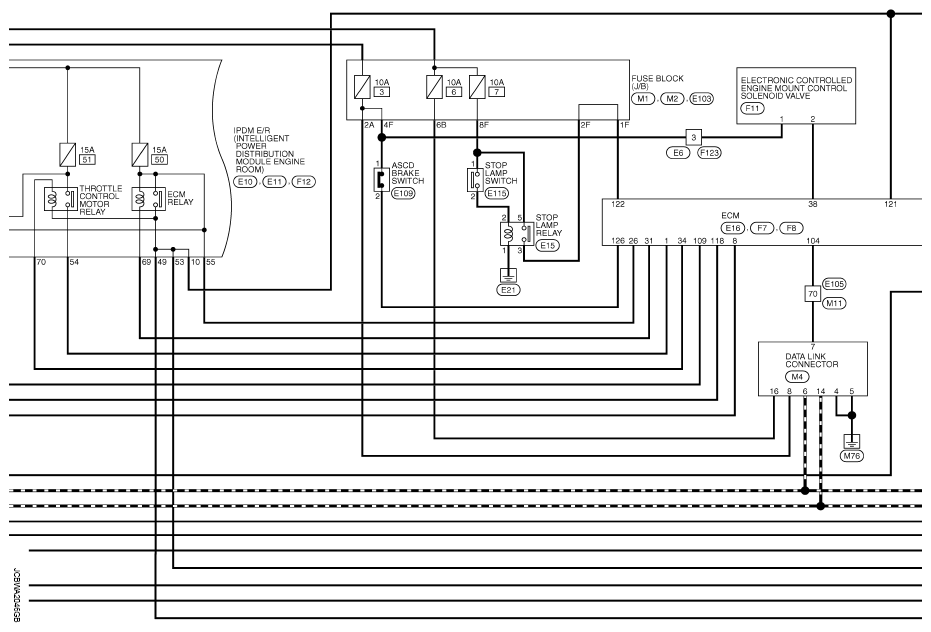

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

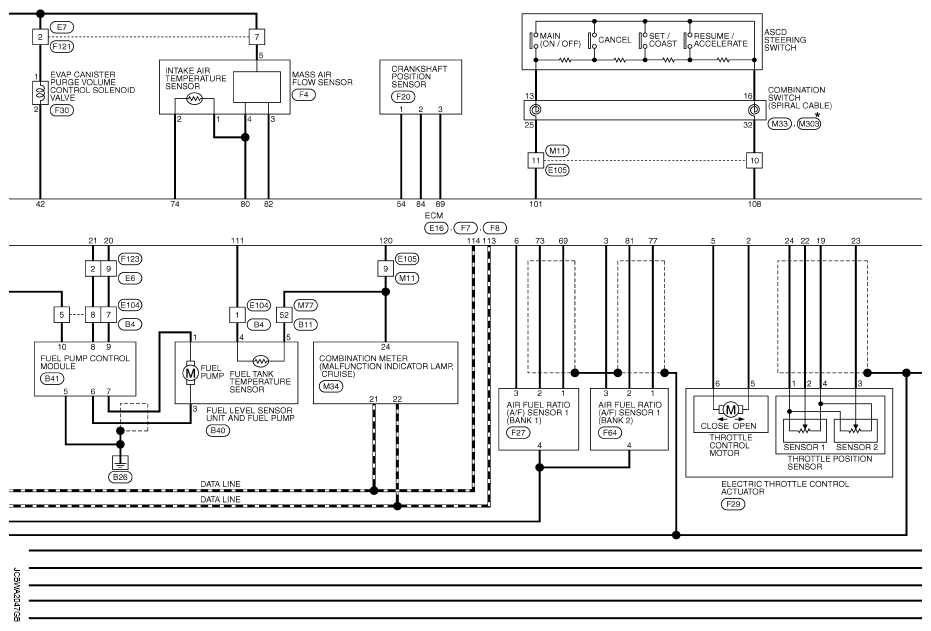

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

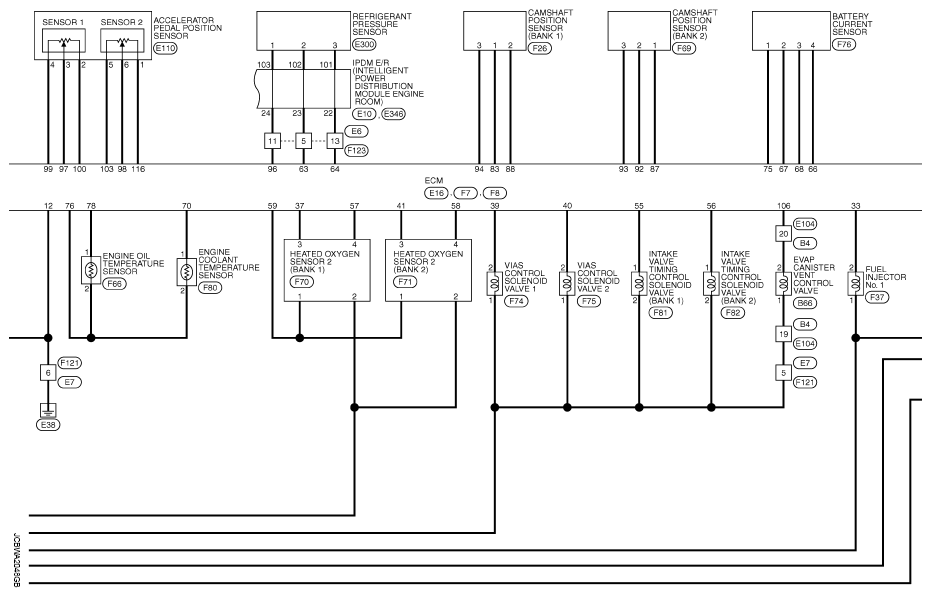

Fig 3: Engine Control System - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

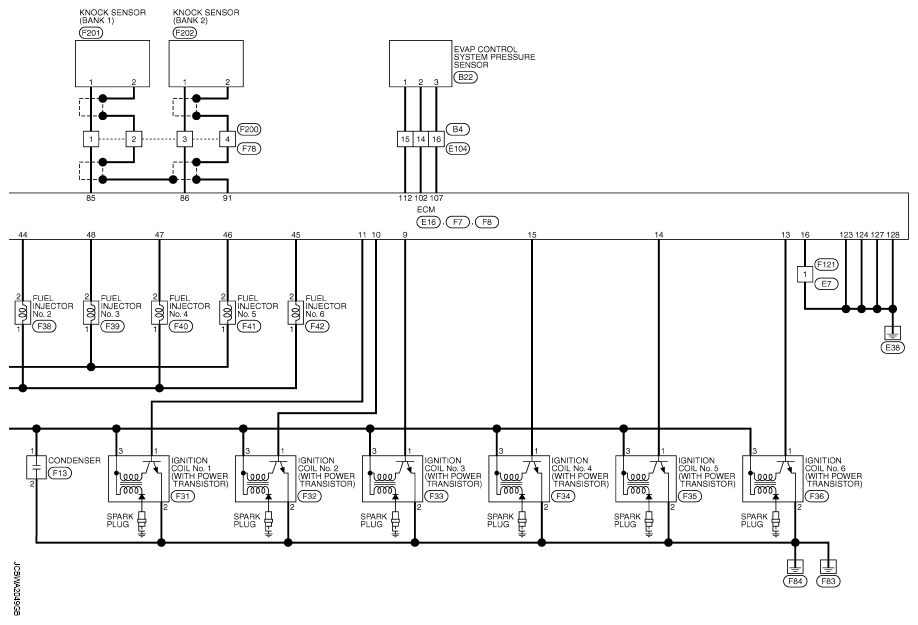

Fig 4: Engine Control System - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Control System - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

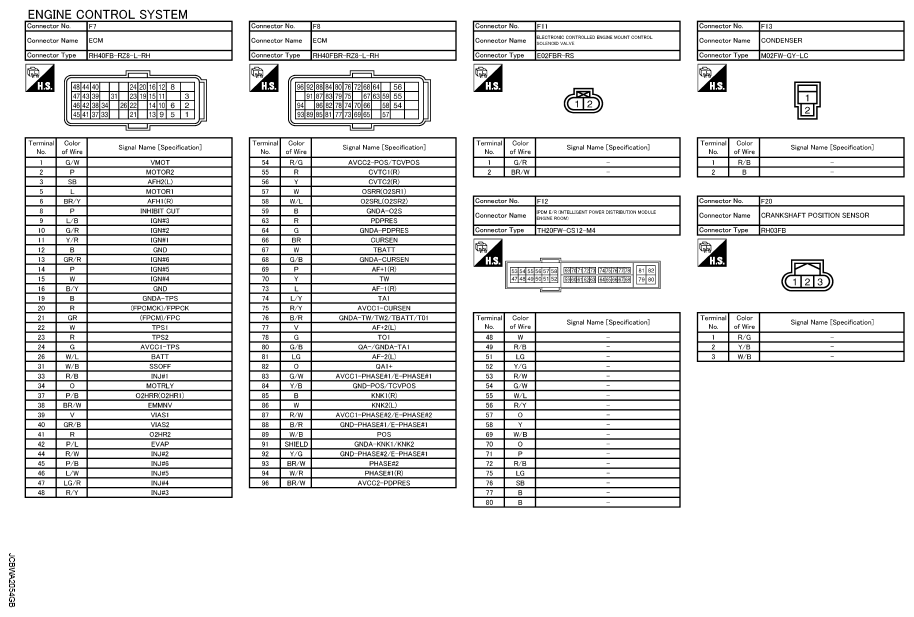

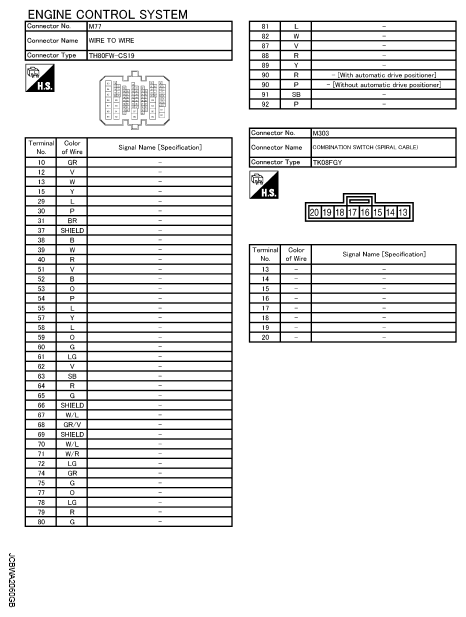

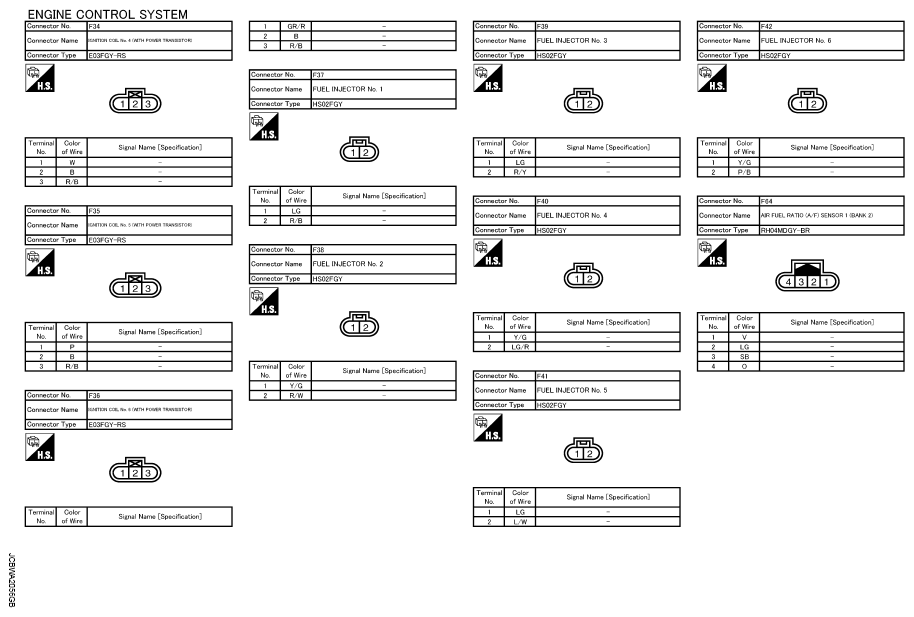

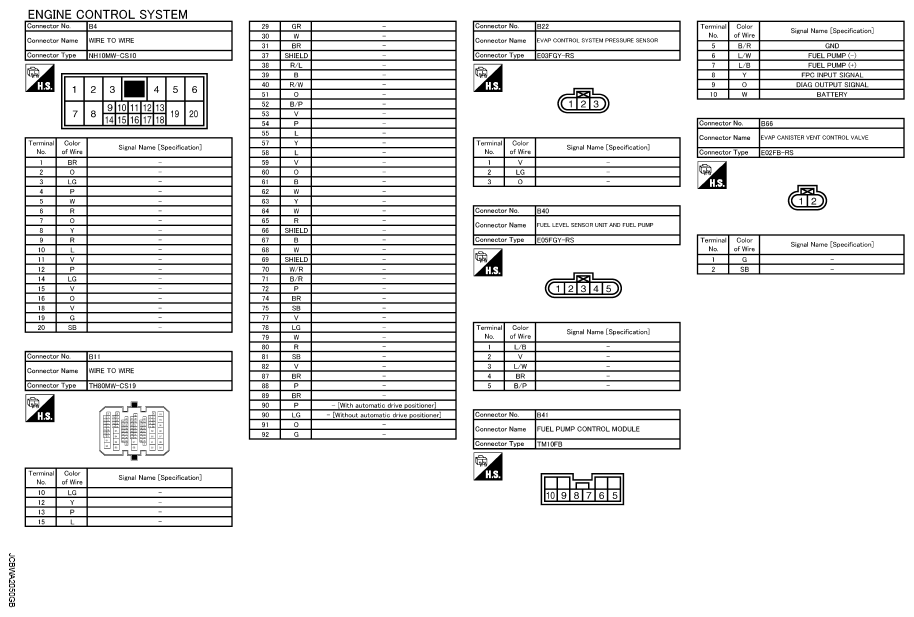

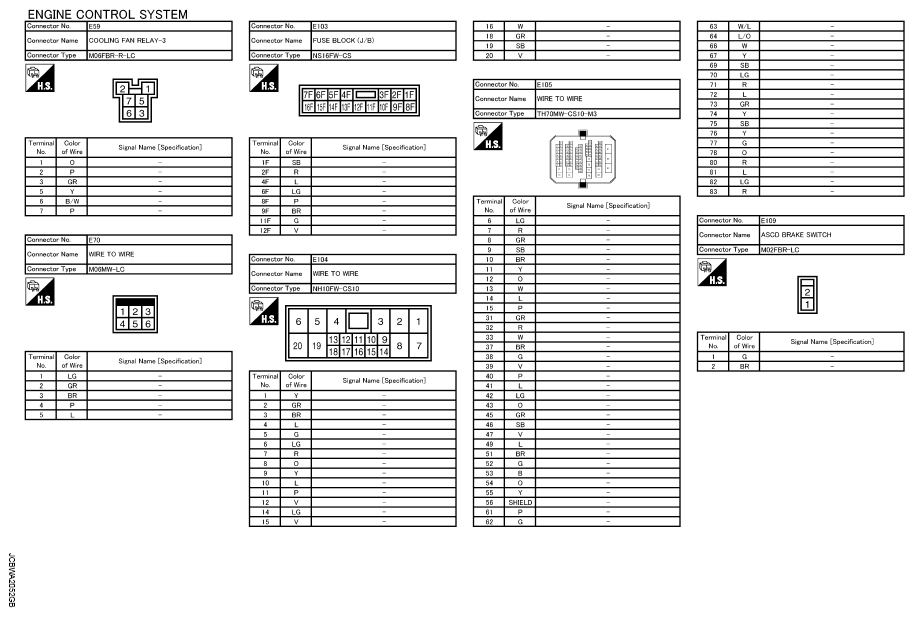

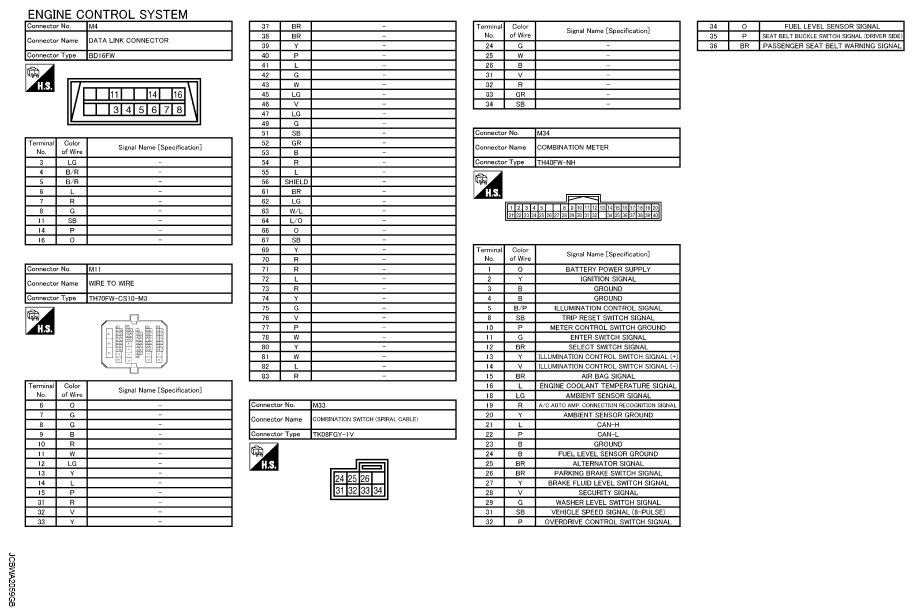

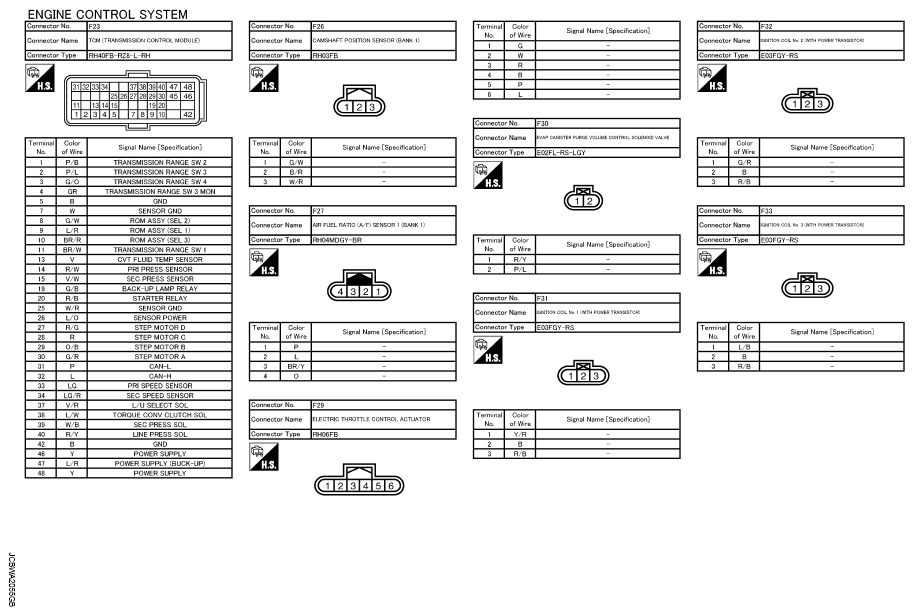

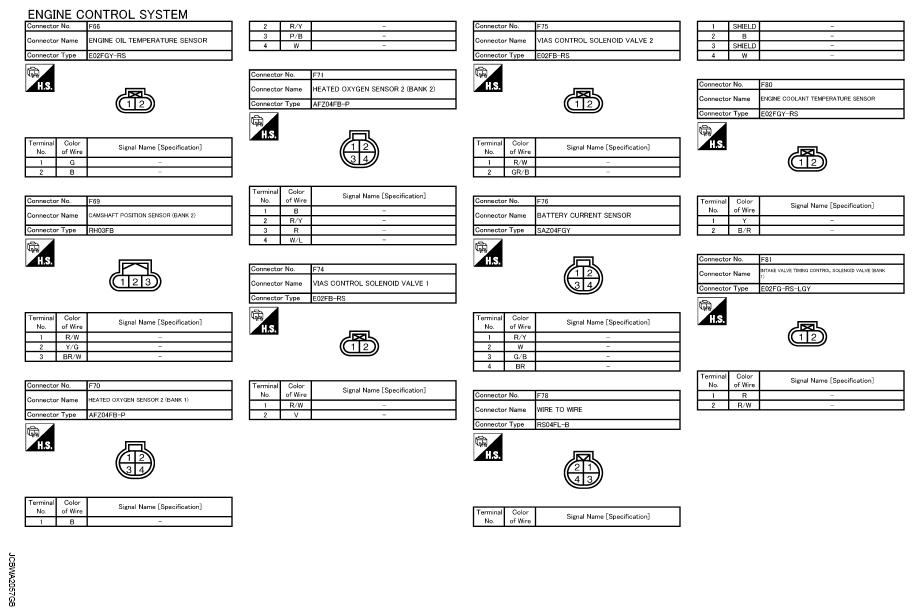

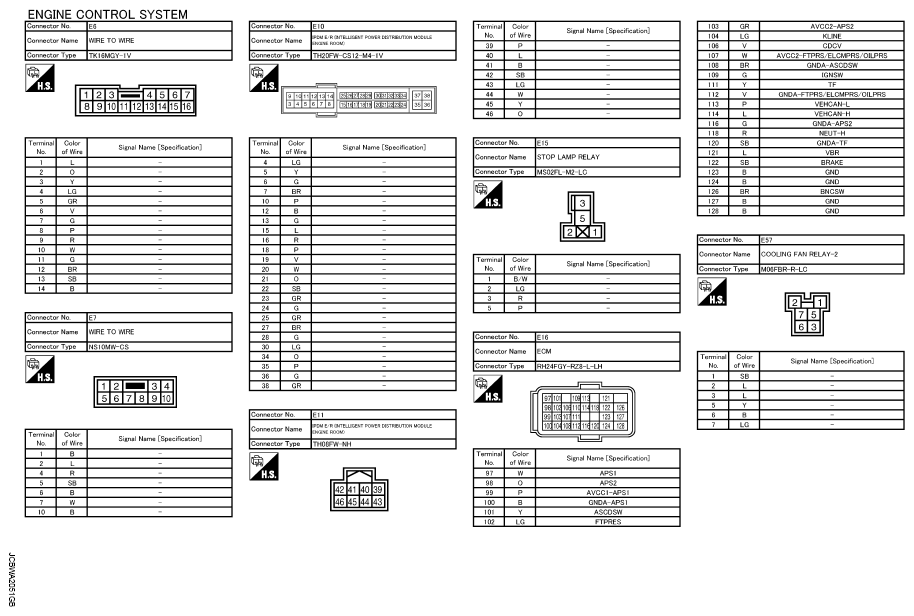

Fig 6: Identifying Engine Control System Connectors (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control System Connectors (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

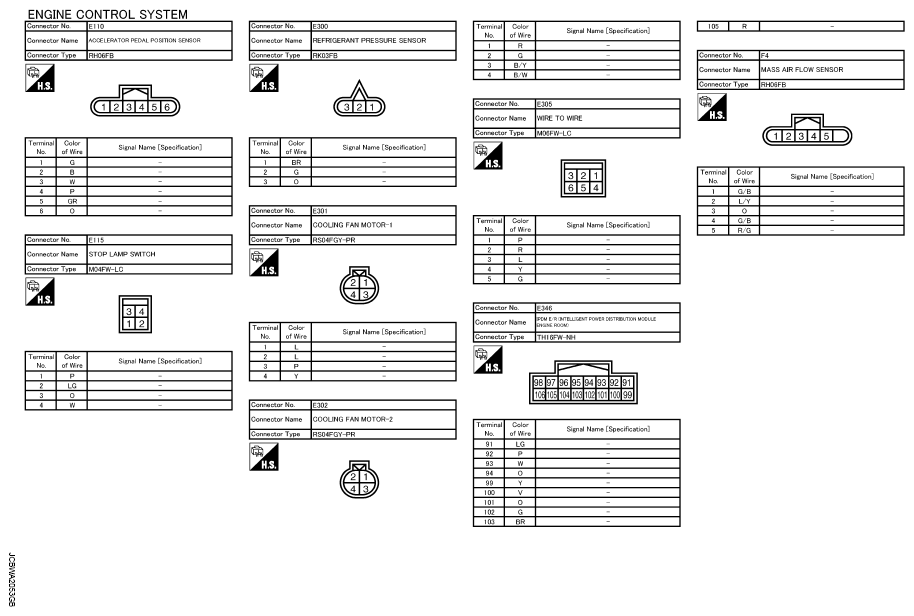

Fig 8: Identifying Engine Control System Connectors (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Control System Connectors (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control System Connectors (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Connectors (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Connectors (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

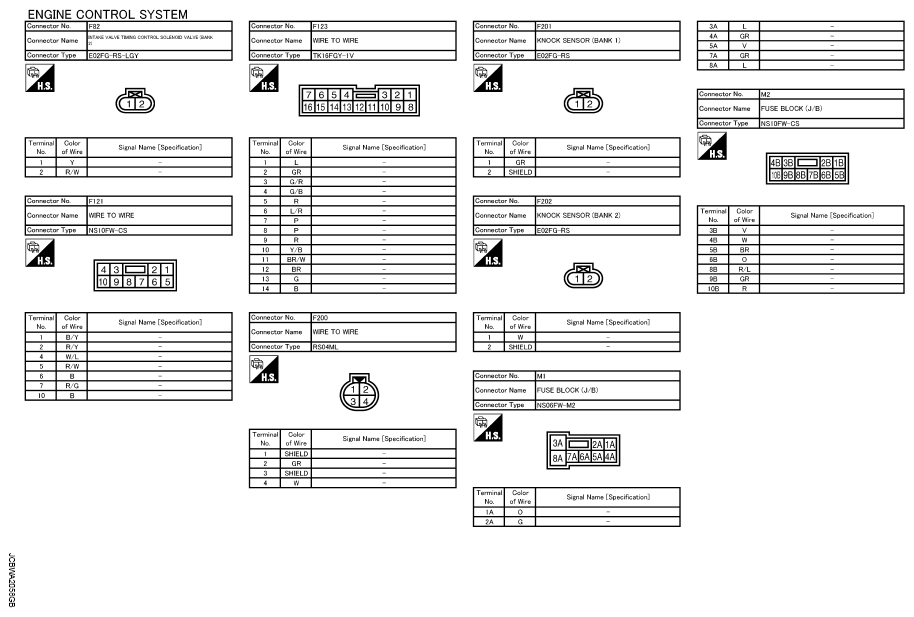

Fig 13: Identifying Engine Control System Connectors (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Connectors (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Connectors (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Control System Connectors (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
