Engine Control System - Introduction (VQ35DE) (Except CROSSCABRIOLET)
>>
System Description
>>
Intake Valve Timing Control
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

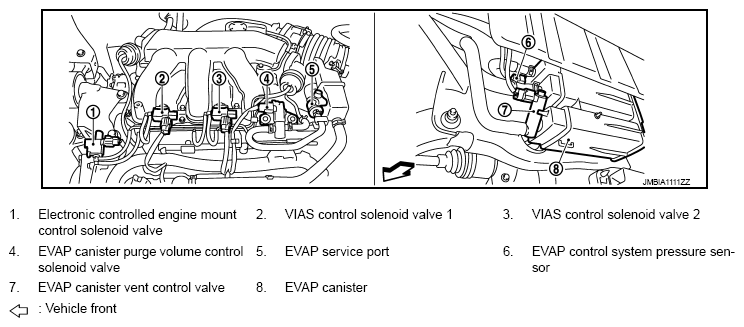

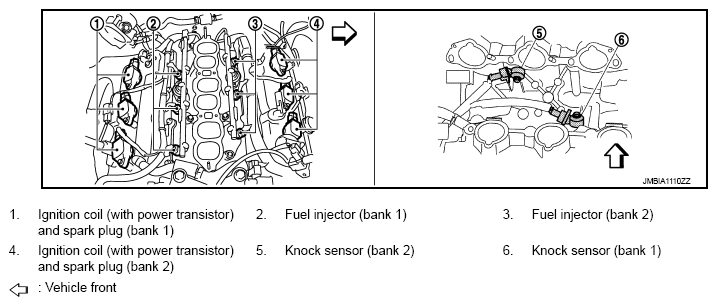

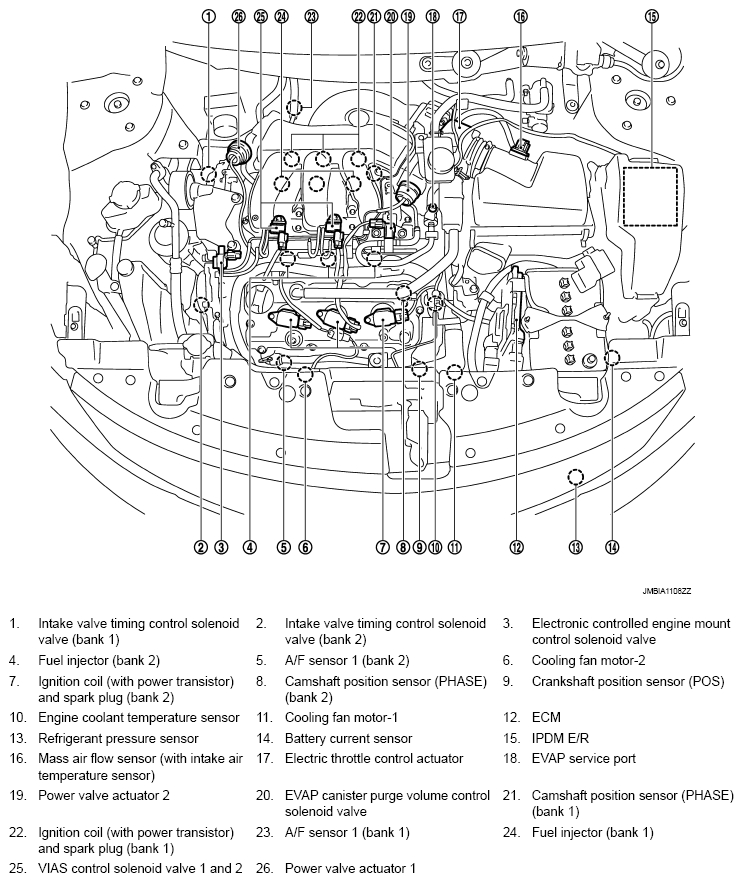

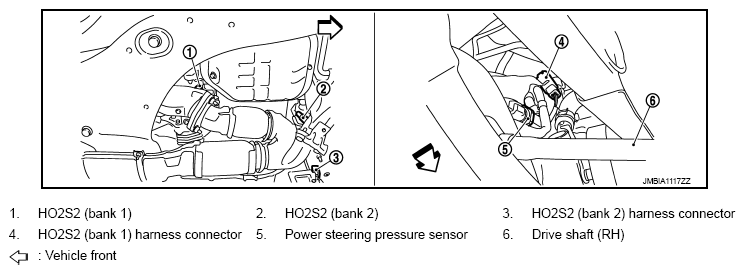

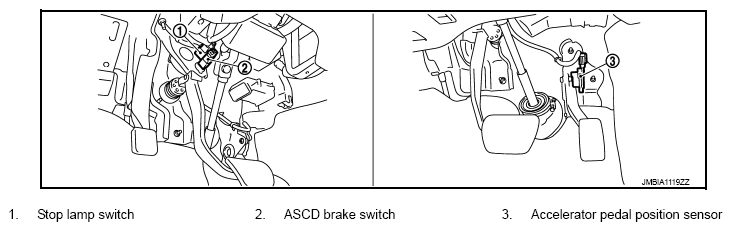

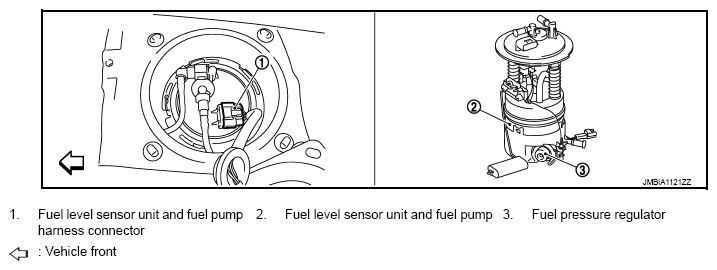

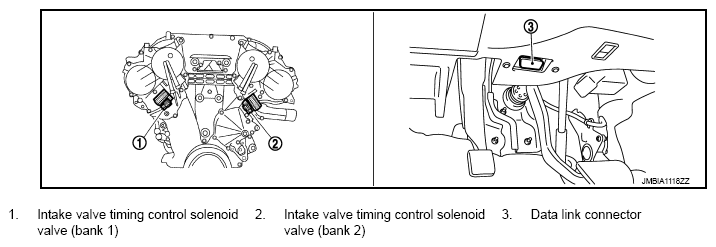

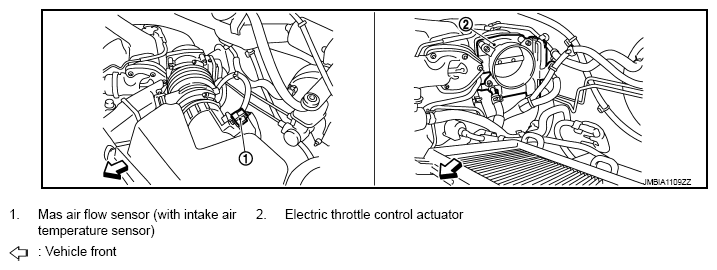

Fig 1: Location Of Intake Valve Timing Control Components (1 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

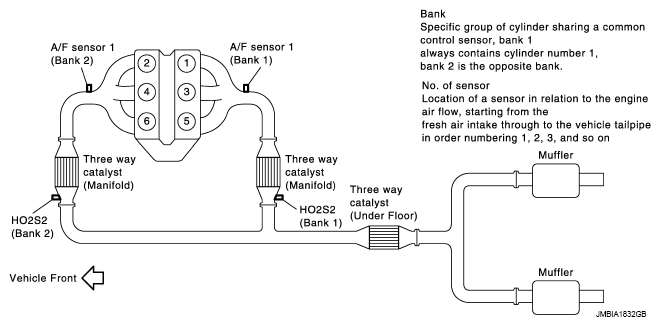

Fig 2: Location Of Intake Valve Timing Control Components (2 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

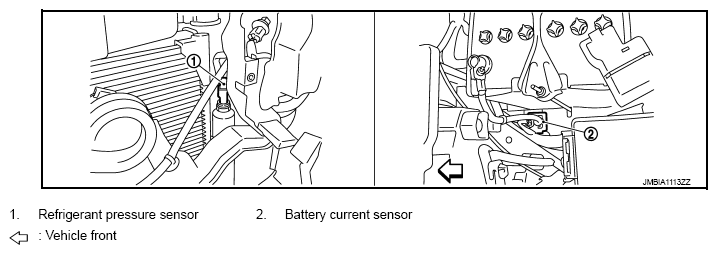

Fig 3: Location Of Intake Valve Timing Control Components (3 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

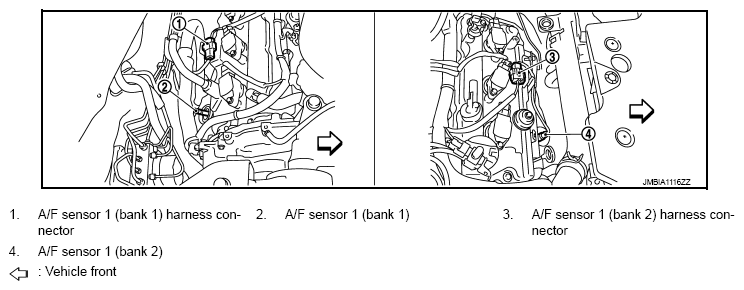

Fig 4: Location Of Intake Valve Timing Control Components (4 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

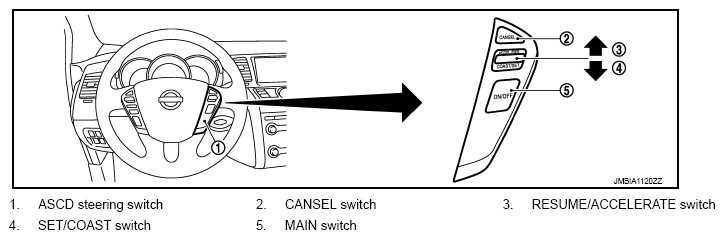

Fig 5: Location Of Intake Valve Timing Control Components (5 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

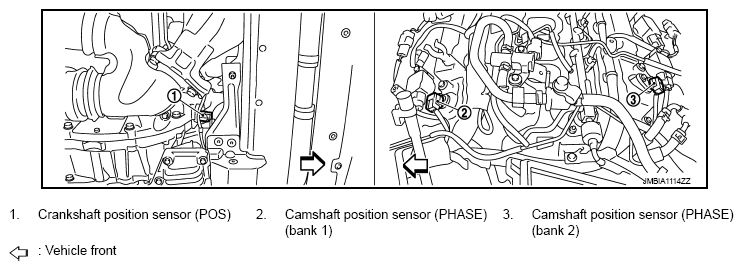

Fig 6: Location Of Intake Valve Timing Control Components (6 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

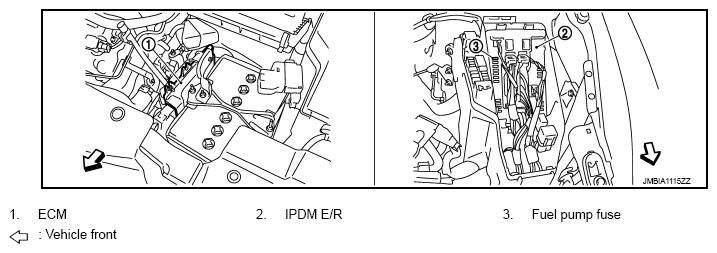

Fig 7: Location Of Intake Valve Timing Control Components (7 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

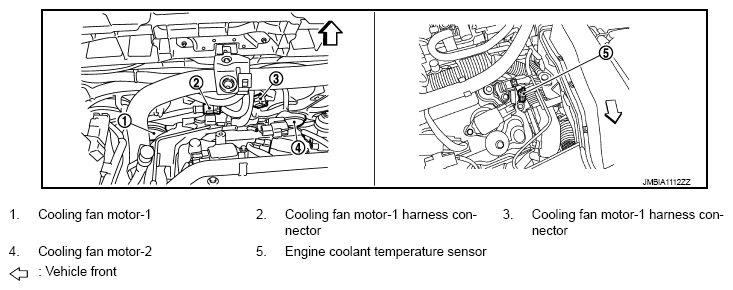

Fig 8: Location Of Intake Valve Timing Control Components (8 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Location Of Intake Valve Timing Control Components (9 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Location Of Intake Valve Timing Control Components (10 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Location Of Intake Valve Timing Control Components (11 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Location Of Intake Valve Timing Control Components (12 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 13: Location Of Intake Valve Timing Control Components (13 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Location Of Intake Valve Timing Control Components (14 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 15: Location Of Intake Valve Timing Control Components (15 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
