Exploded View

CAUTION: Securely insert harness connector to pressure sensor.

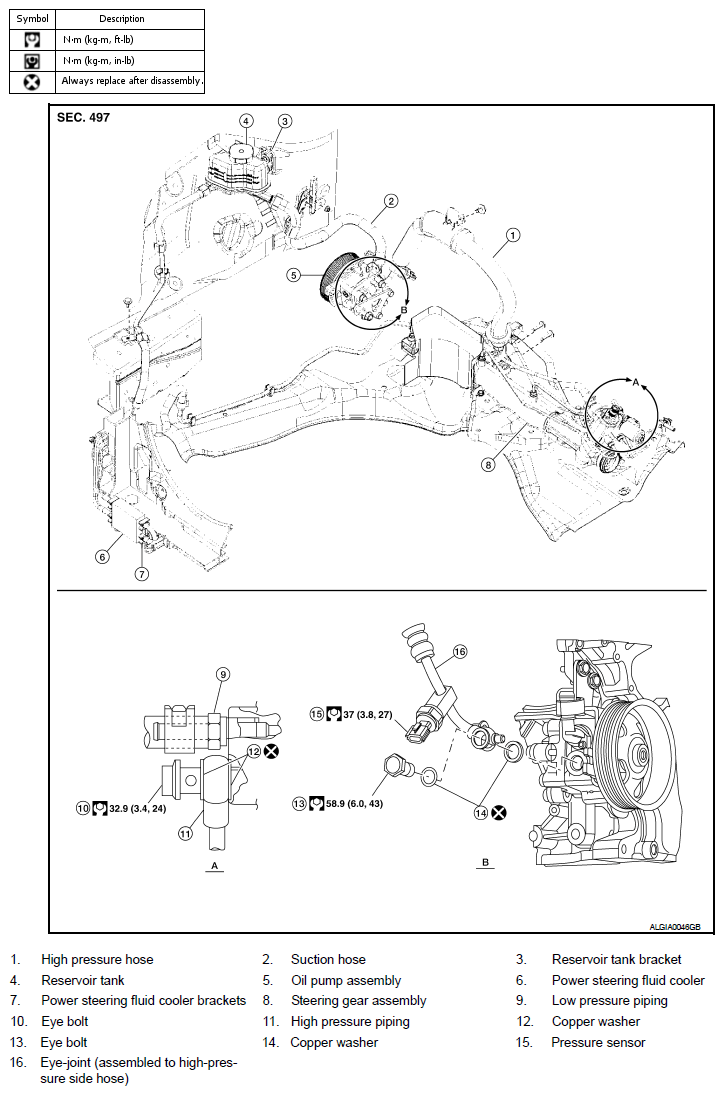

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications
G06990976Courtesy of NISSAN MOTOR CO., U.S.A.
