System Diagram

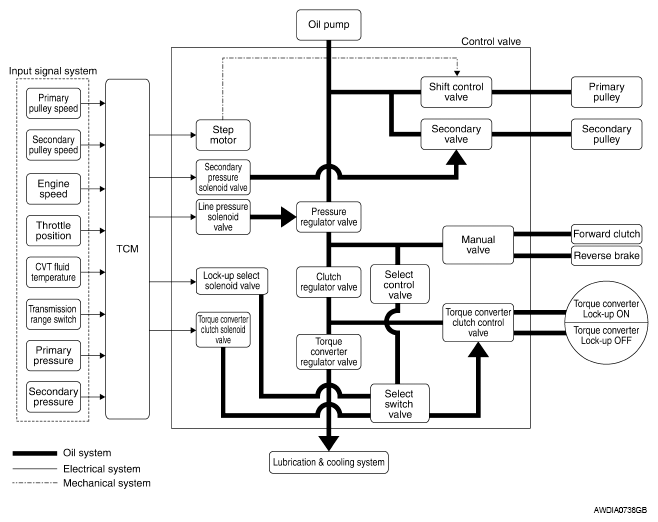

Fig 1: Hydraulic Control System Diagram

G06990357

Courtesy of NISSAN MOTOR CO., U.S.A.
