Exploded View

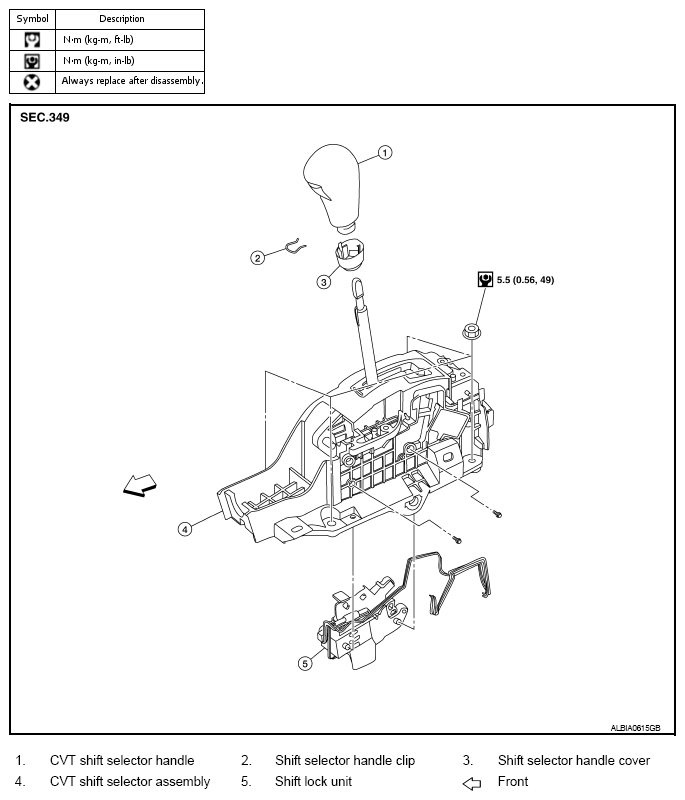

Fig 1: CVT Shift Selector Replacement Components With Torque Specifications
G06990526Courtesy of NISSAN MOTOR CO., U.S.A.
