System Description: System: Schematic

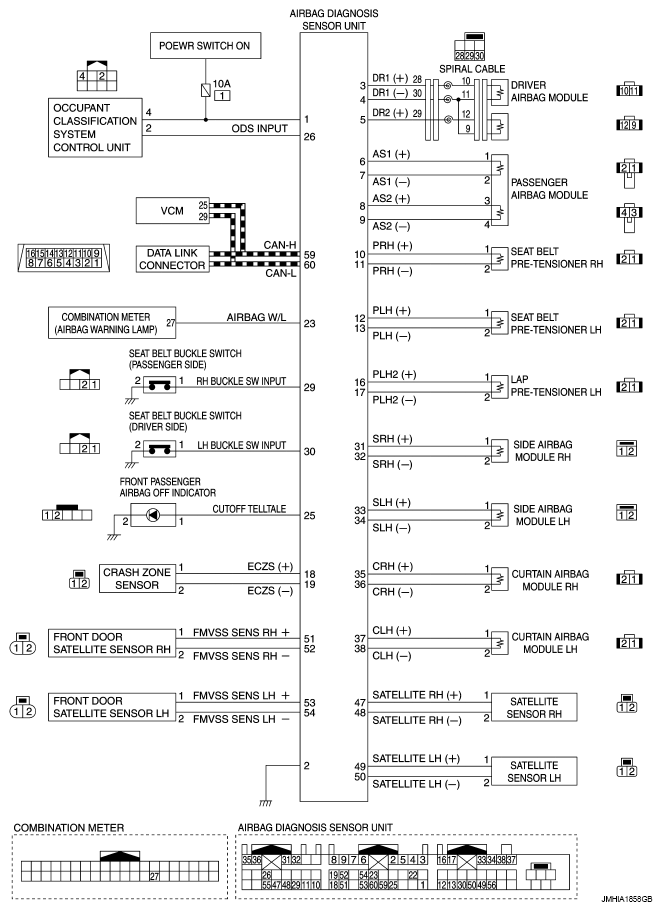

Fig 1: SRS Airbag Control System Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.
