Terminal Layout

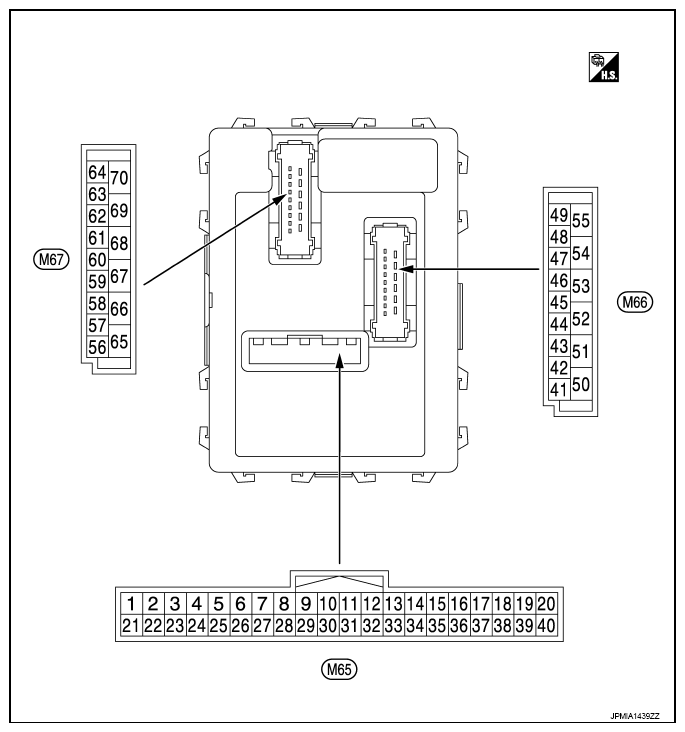

Fig 1: Identifying BCM Connector Terminals
G07108283Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • M65, M66: White
  • M67: Black
