Section 69 (Hybrid Control System - Introduction)
>>
System Description
>>
Automatic Speed Control Device (ASCD)
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
WARNING:
This page is about a different variant/trim than selected.

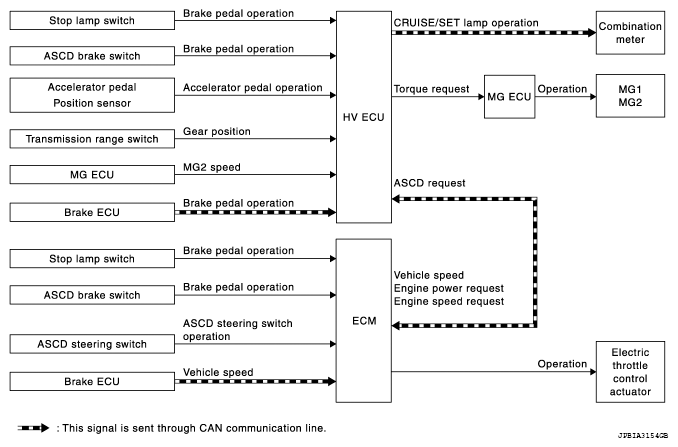

Fig 1: Automatic Speed Control Device System Diagram
Courtesy of NISSAN MOTOR CO.
