Component Parts Location

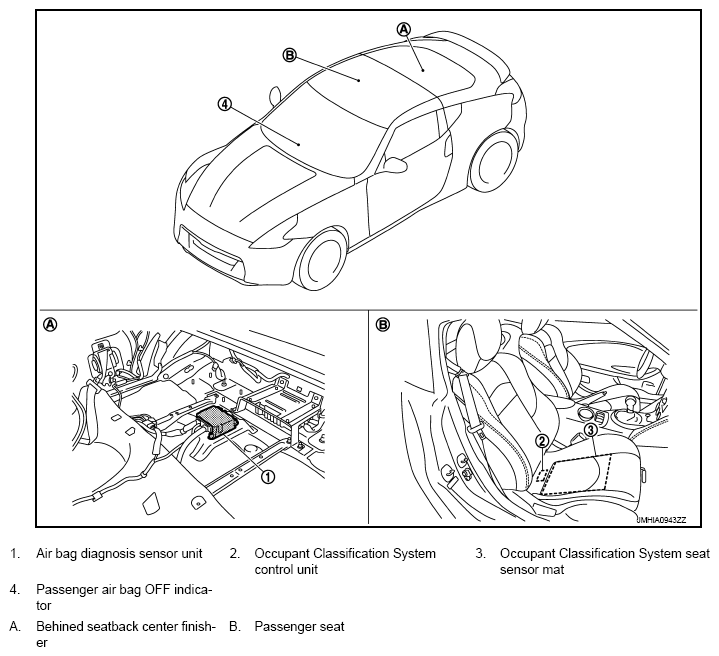

Fig 1: Identifying Occupant Classification System Component Parts Location
G07106473Courtesy of NISSAN MOTOR CO., U.S.A.
