Removal and Installation: Components

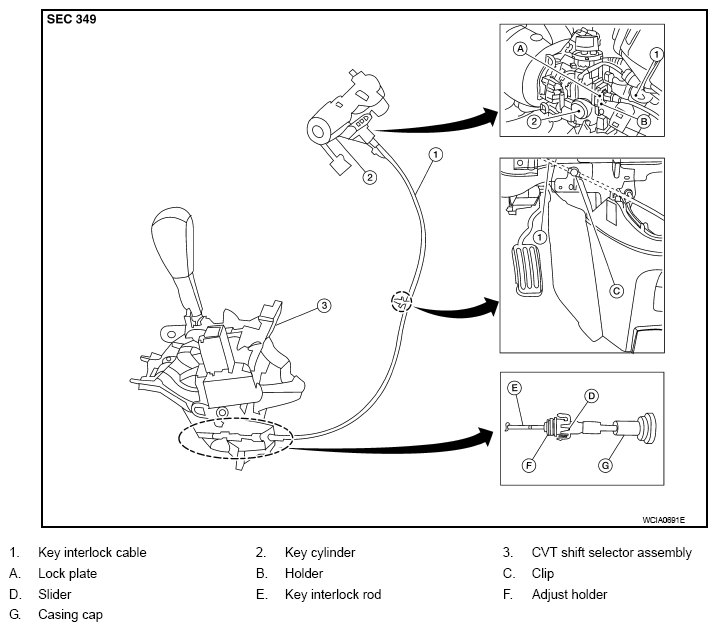

Fig 1: Identifying Key Interlock Cable Components
G06552238Courtesy of NISSAN MOTOR CO., U.S.A.
