Exploded View

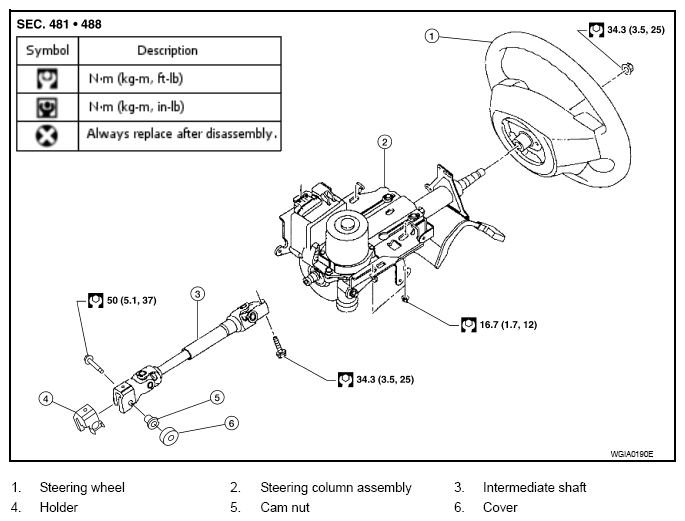

Fig 1: Exploded View Of Steering Column Components With Torque Specifications
G06552630Courtesy of NISSAN MOTOR CO., U.S.A.
