Exploded View

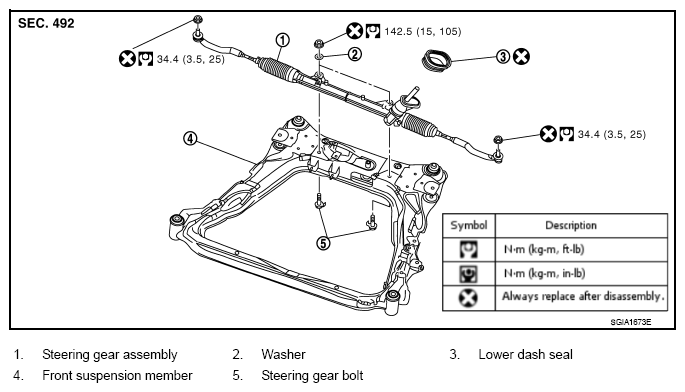

Fig 1: Power Steering Gear Replacement Components With Torque Specifications
G06552638Courtesy of NISSAN MOTOR CO., U.S.A.

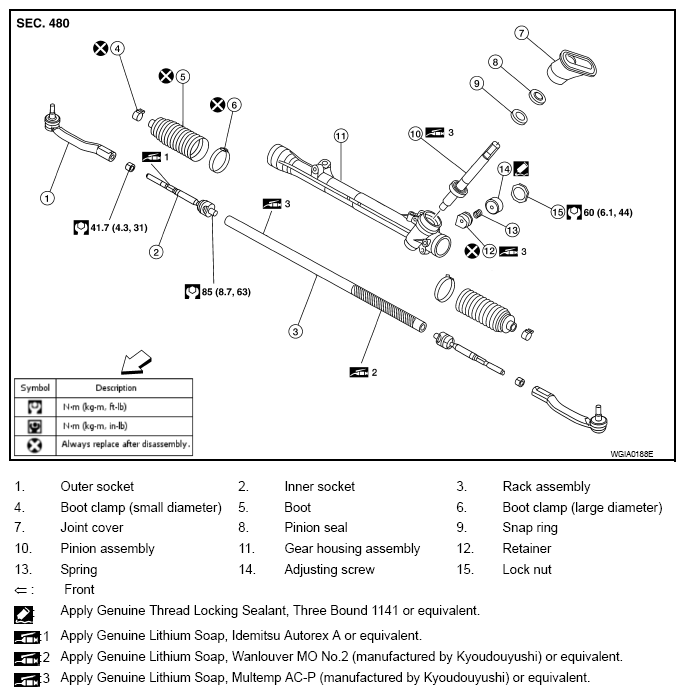

Fig 1: Exploded View Of Power Steering Gear Components With Torque Specifications
G06552639Courtesy of NISSAN MOTOR CO., U.S.A.
