Wiring Diagram - Intelligent Key -

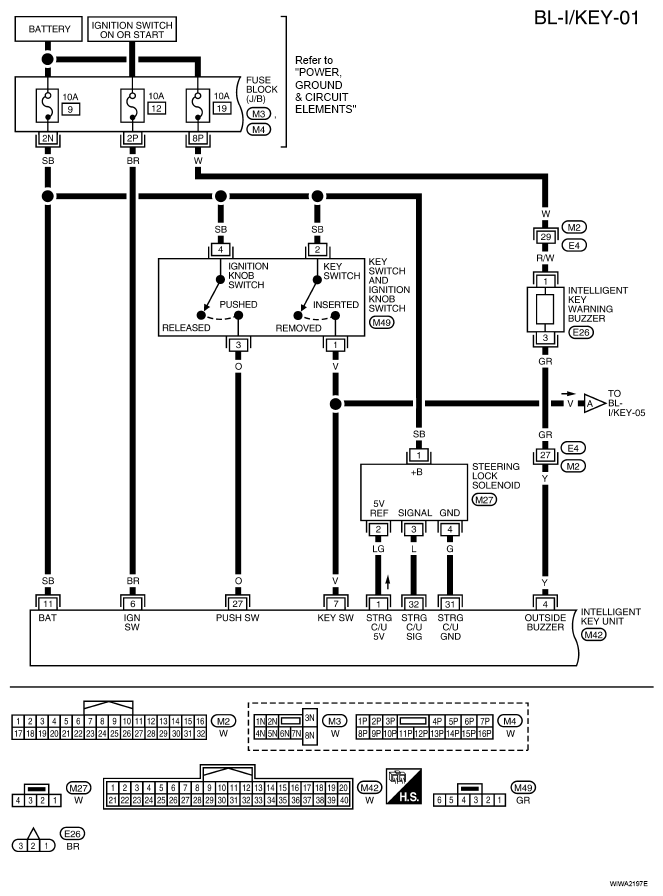

Fig 1: BL-I/KEY-01 - Wiring Diagram

G04927625

Courtesy of NISSAN MOTOR CO., U.S.A.

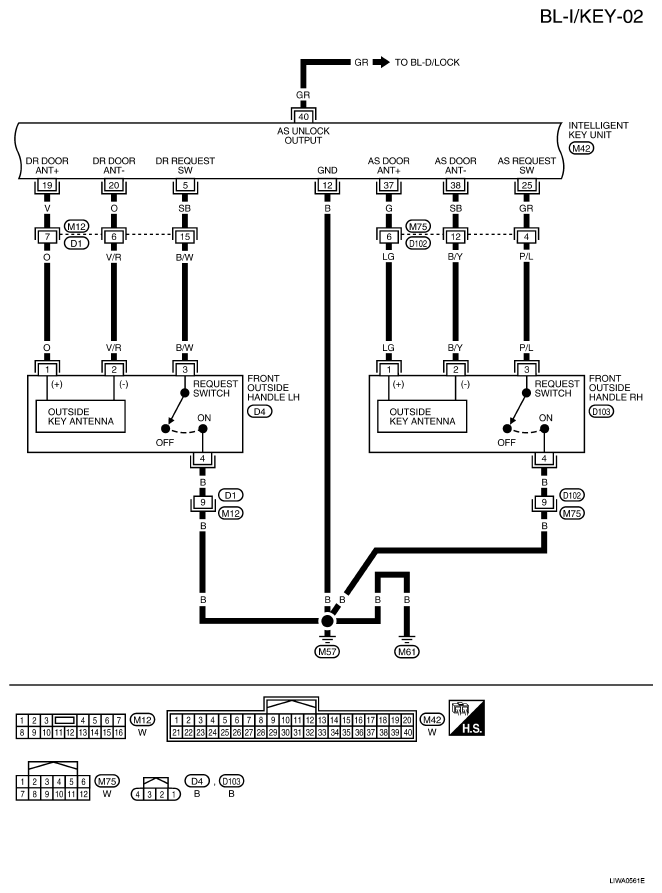

Fig 2: BL-I/Key-02 - Wiring Diagram

G04927626

Courtesy of NISSAN MOTOR CO., U.S.A.

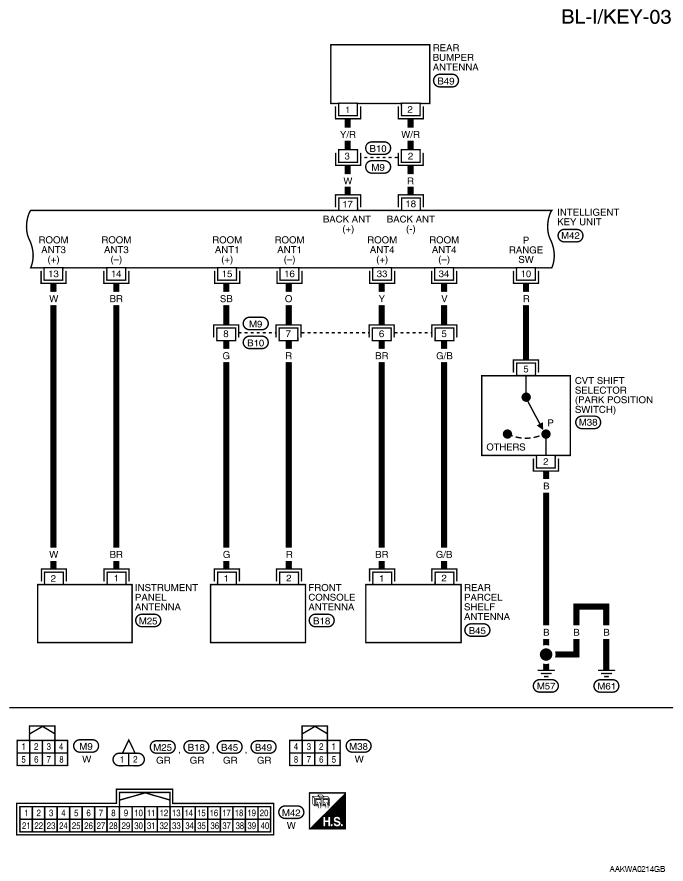

Fig 3: BL-I/KEY-03 - Wiring Diagram

G06552852

Courtesy of NISSAN MOTOR CO., U.S.A.

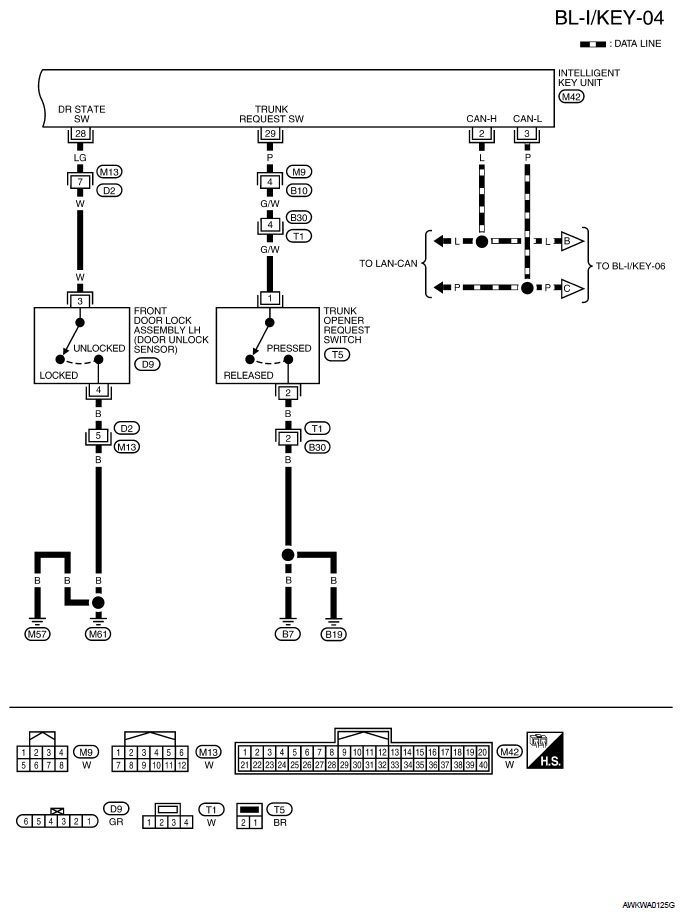

Fig 4: BL-I/KEY-04 - Wiring Diagram

G05924667

Courtesy of NISSAN MOTOR CO., U.S.A.

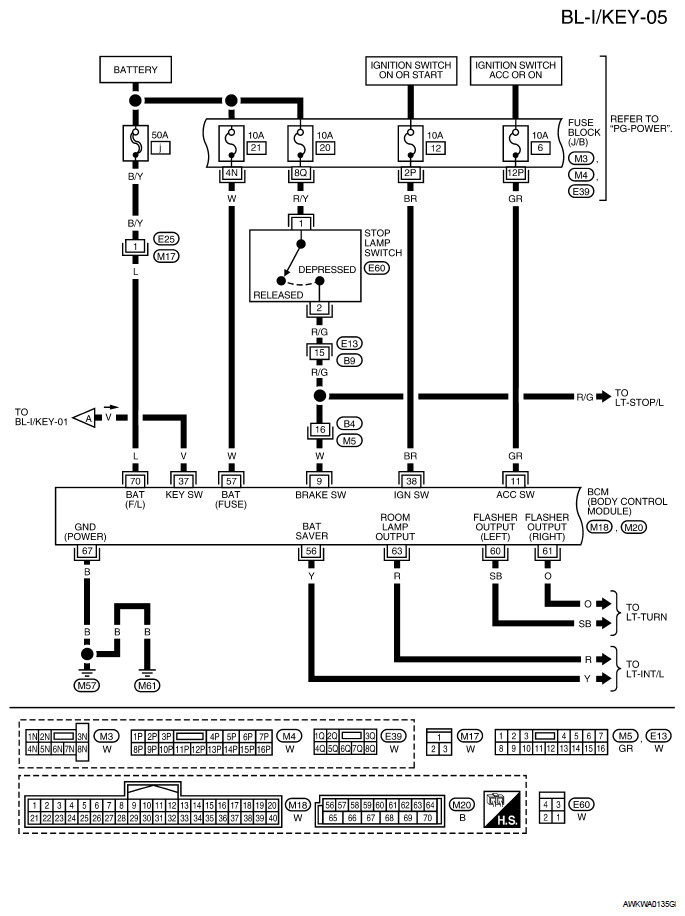

Fig 5: BL-I/KEY-05 - Wiring Diagram

G05924668

Courtesy of NISSAN MOTOR CO., U.S.A.

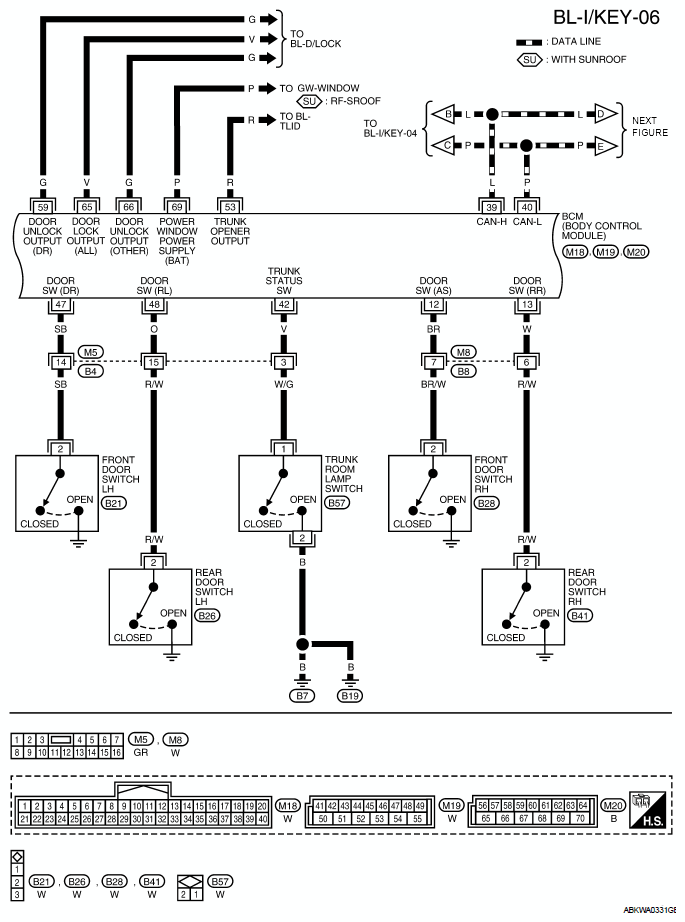

Fig 6: BL-I/KEY-06 - Wiring Diagram

G05924669

Courtesy of NISSAN MOTOR CO., U.S.A.

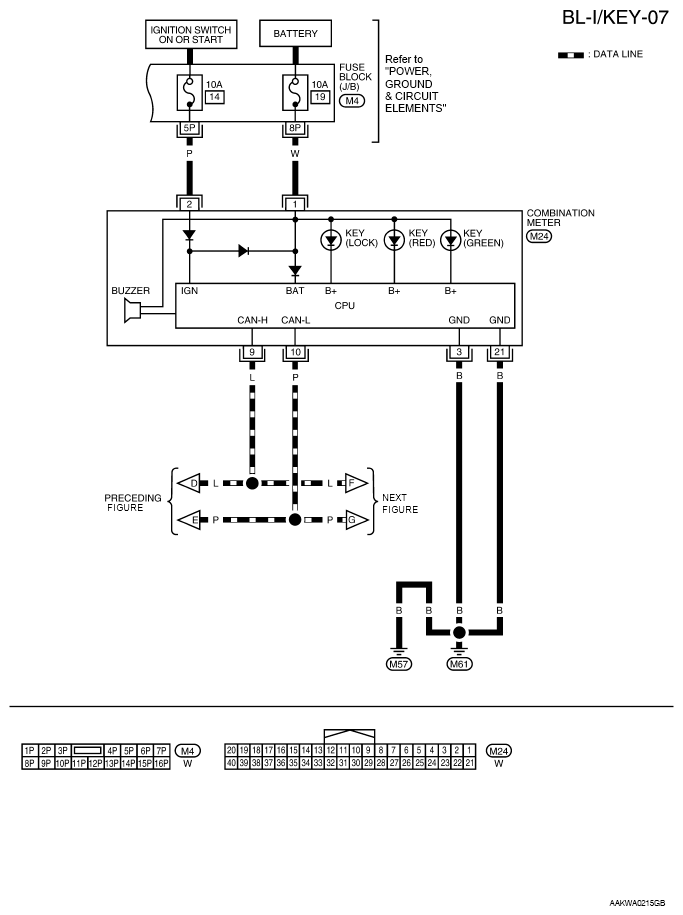

Fig 7: BL-I/KEY-07 - Wiring Diagram

G06552856

Courtesy of NISSAN MOTOR CO., U.S.A.

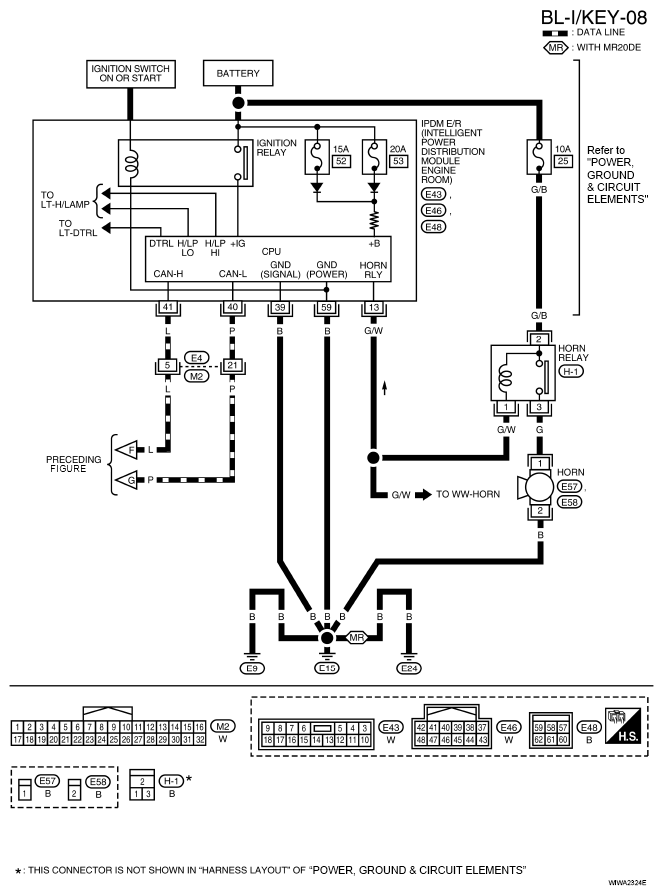

Fig 8: BL-I/KEY-08 - Wiring Diagram

G04927632

Courtesy of NISSAN MOTOR CO., U.S.A.
