Component Parts Location

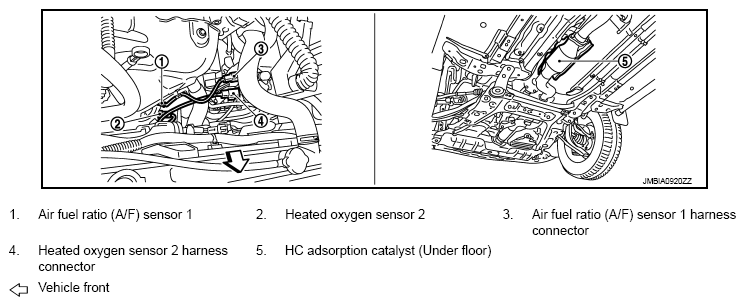

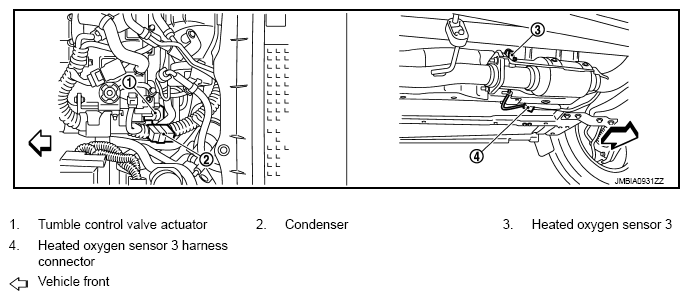

Fig 1: Identifying Evaporative Emission System Diagram Component Parts Location (1 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

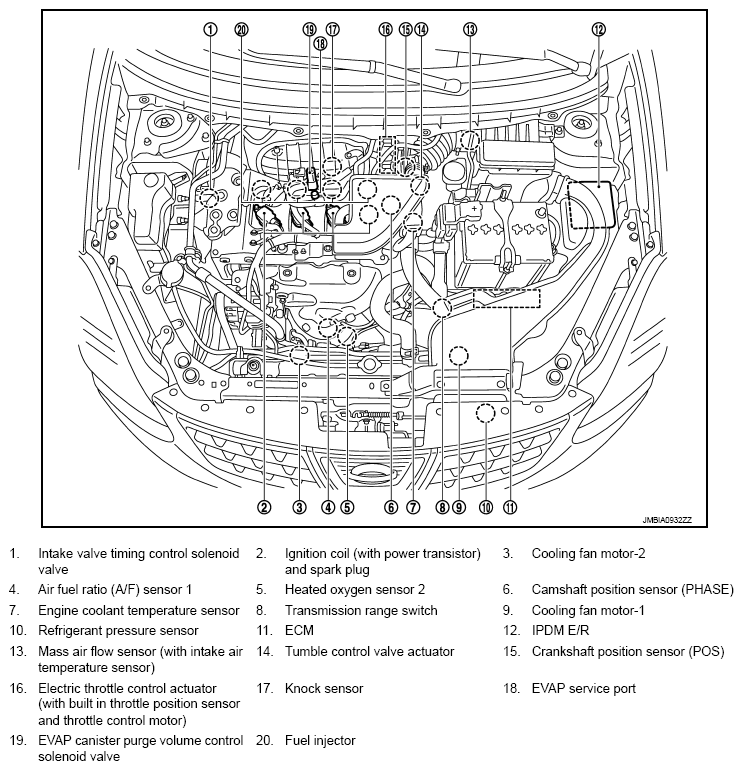

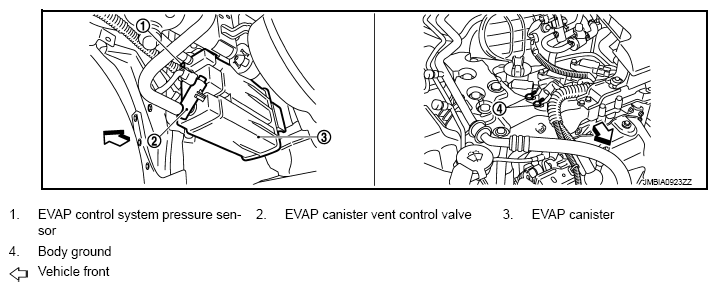

Fig 2: Identifying Evaporative Emission System Diagram Component Parts Location (2 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

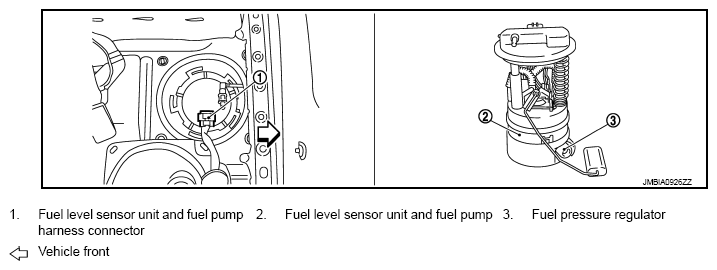

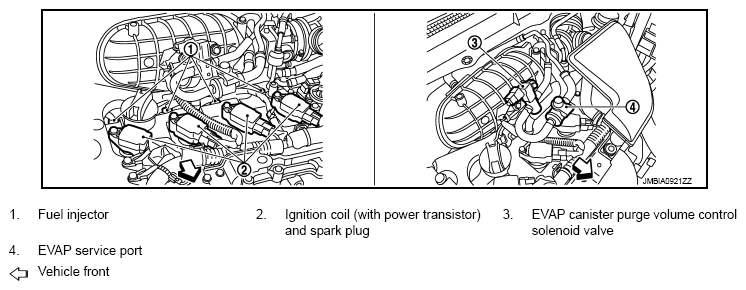

Fig 3: Identifying Evaporative Emission System Diagram Component Parts Location (3 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

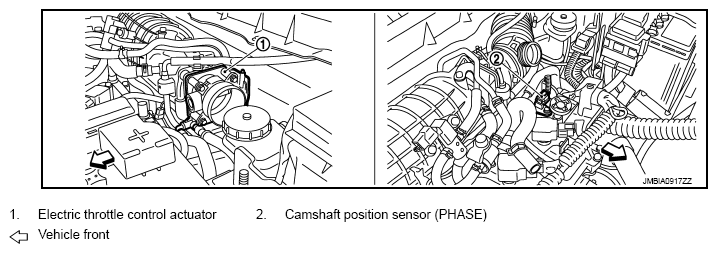

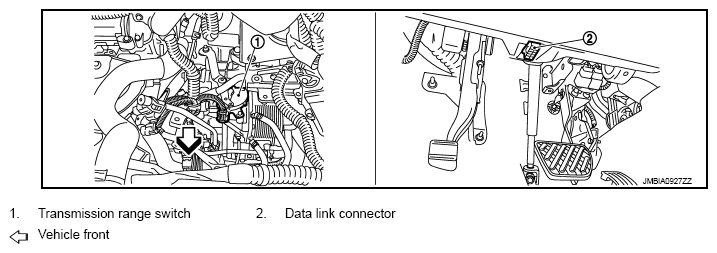

Fig 4: Identifying Evaporative Emission System Diagram Component Parts Location (4 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

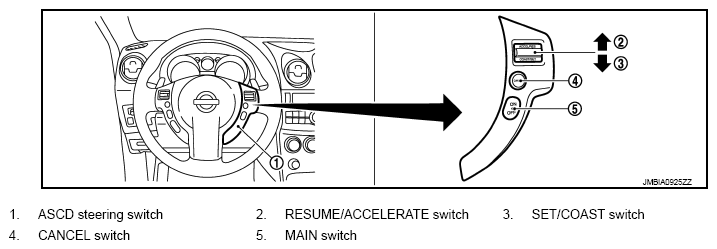

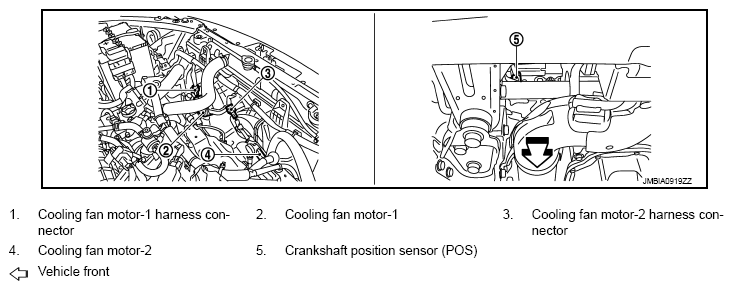

Fig 5: Identifying Evaporative Emission System Diagram Component Parts Location (5 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

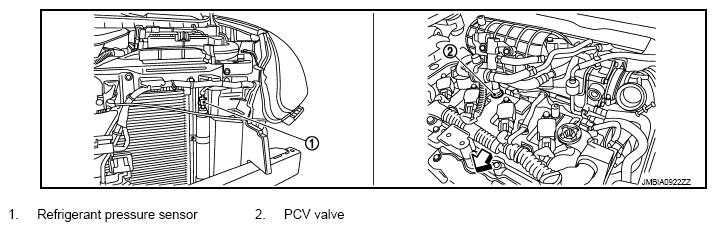

Fig 6: Identifying Evaporative Emission System Diagram Component Parts Location (6 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

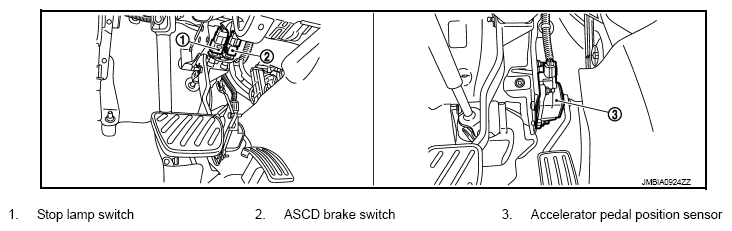

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

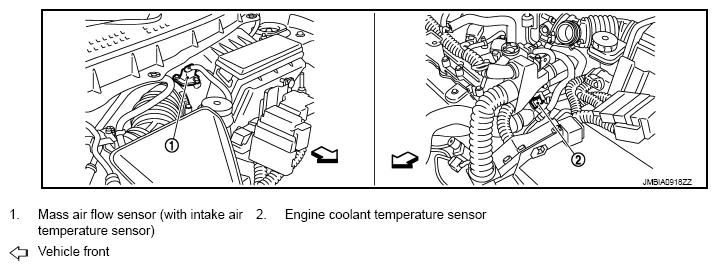

Fig 8: Identifying Evaporative Emission System Diagram Component Parts Location (8 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Evaporative Emission System Diagram Component Parts Location (9 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Evaporative Emission System Diagram Component Parts Location (10 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Evaporative Emission System Diagram Component Parts Location (11 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Evaporative Emission System Diagram Component Parts Location (12 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Evaporative Emission System Diagram Component Parts Location (13 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Evaporative Emission System Diagram Component Parts Location (14 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.
