Exploded View

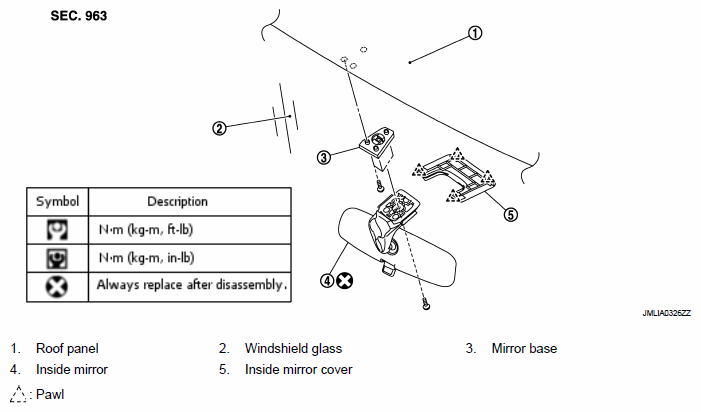

Fig 1: Identifying Inside Mirror Components
G05916844Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
