Component Parts Location

WARNING: This page is about a different variant/trim than selected.

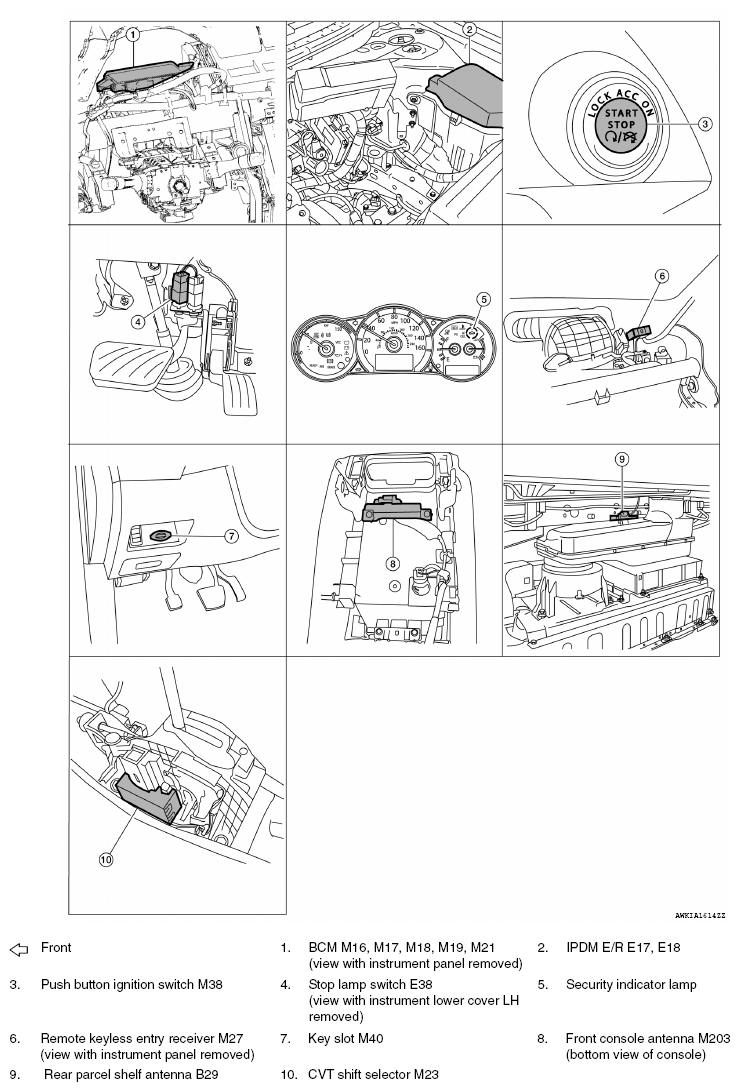

Fig 1: Identifying Intelligent Key System/Engine Start Function Component Parts Location
G06568176Courtesy of NISSAN MOTOR CO., U.S.A.
