ASCD Indicator: Wiring Diagram

NOTE: For references to "PG-Power", see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article.

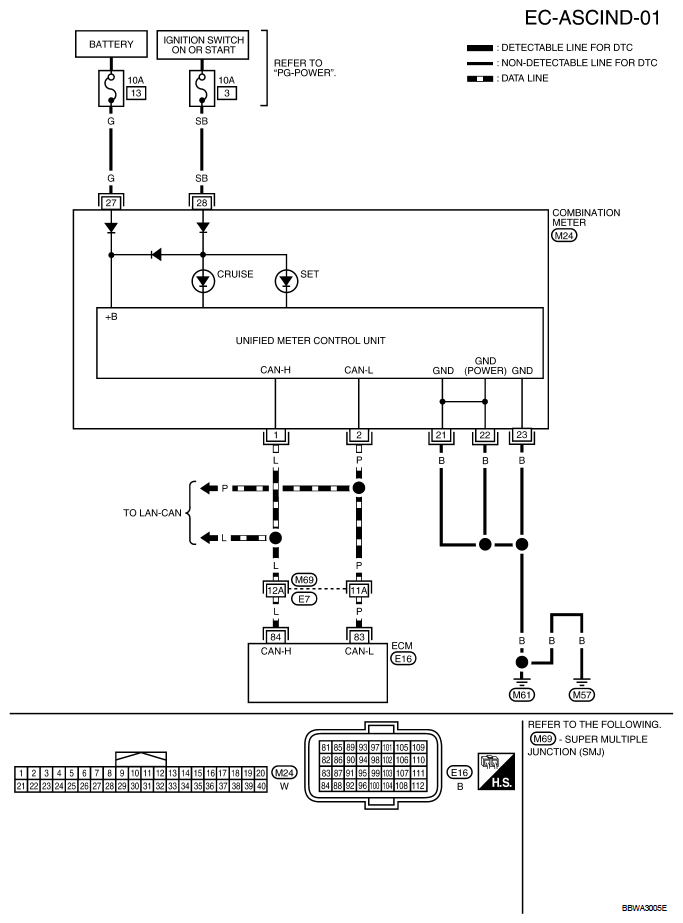

Fig 1: ASCD Indicator - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
