Hydraulic Control System

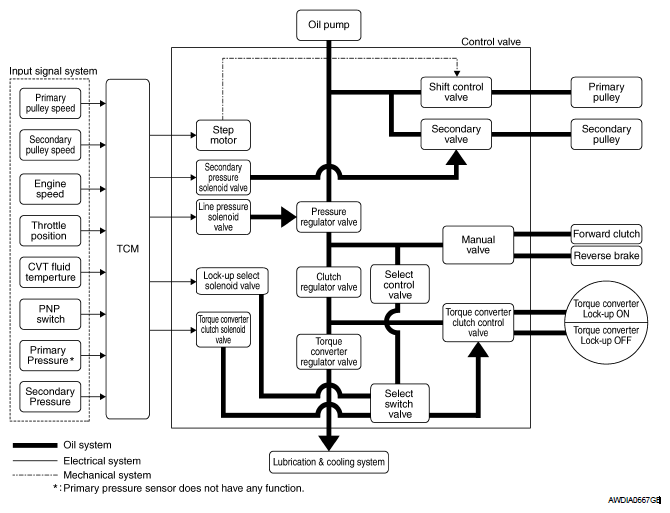

Fig 1: Hydraulic Control System Diagram
G05924253Courtesy of NISSAN MOTOR CO., U.S.A.
