Component Parts

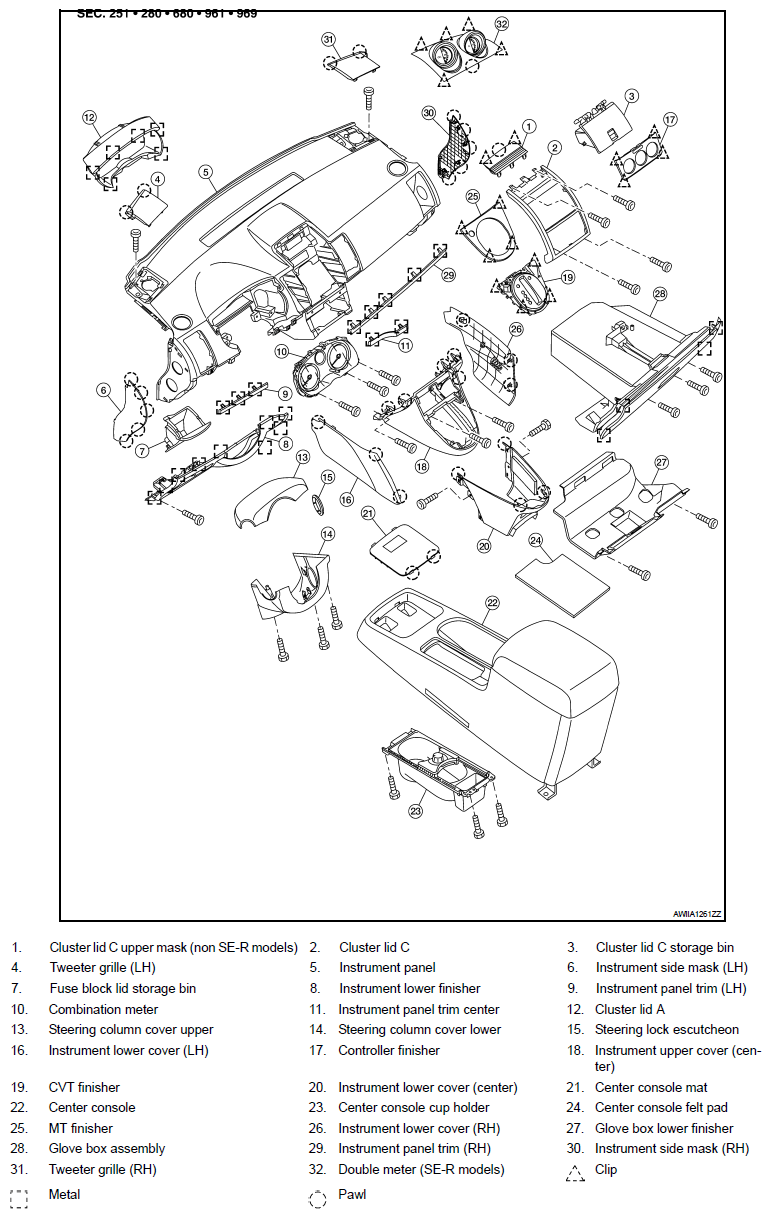

Fig 1: Identifying Instrument Panel Component Parts
G05925925Courtesy of NISSAN MOTOR CO., U.S.A.
