Combination Meters: Schematic

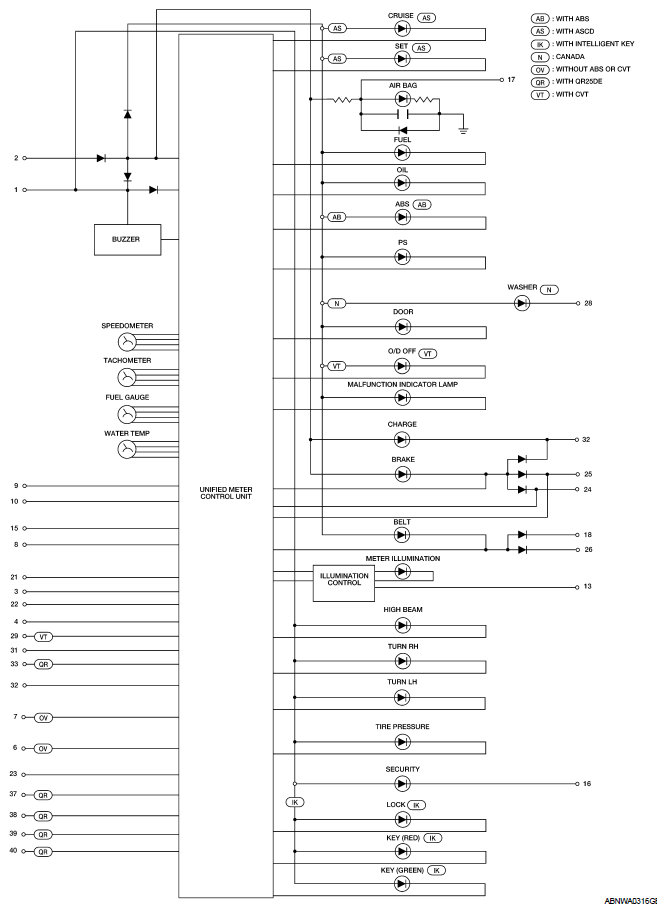

Fig 1: Combination Meter Schematic Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
