Exploded View

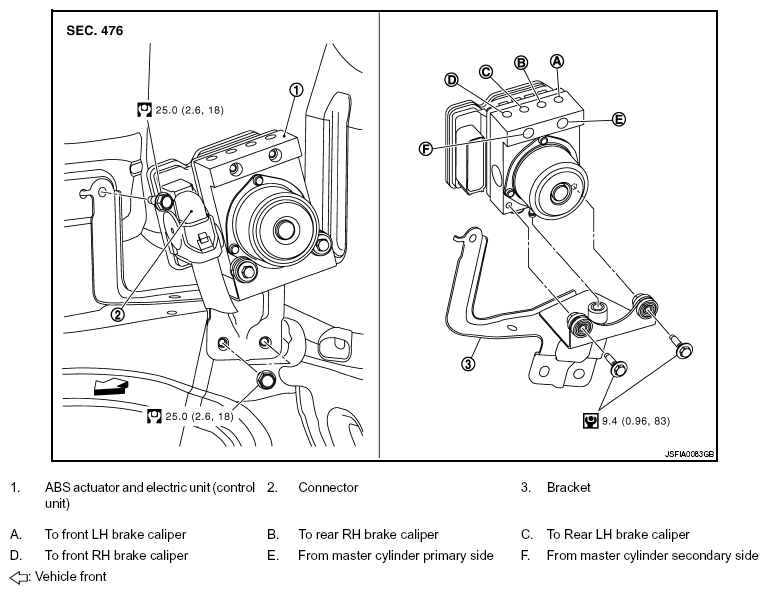

Fig 1: Exploded View Of ABS Actuator And Electric Unit
G06058053Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol in the figure.
