Exploded View

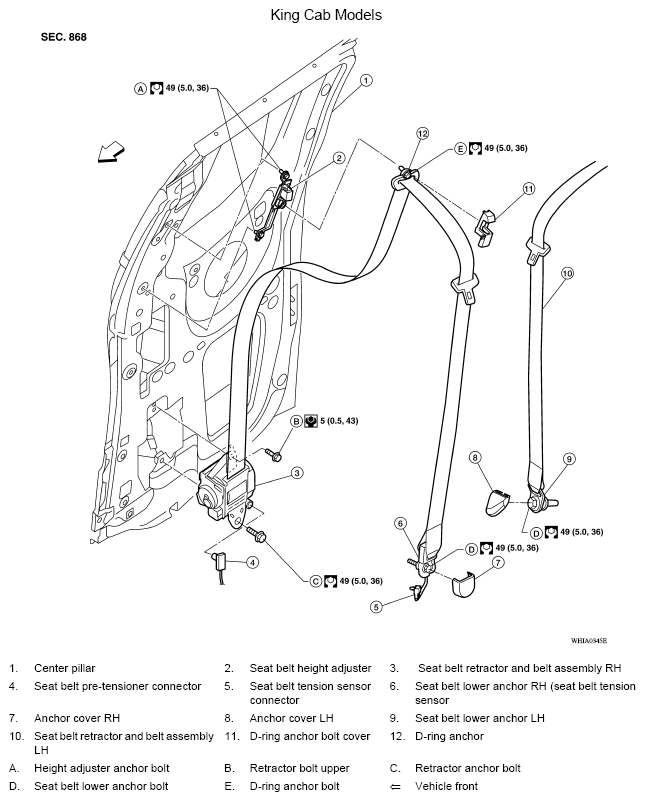

Fig 1: Exploded View Of Front Seat Belt - King Cab Models
G05884187Courtesy of NISSAN MOTOR CO., U.S.A.

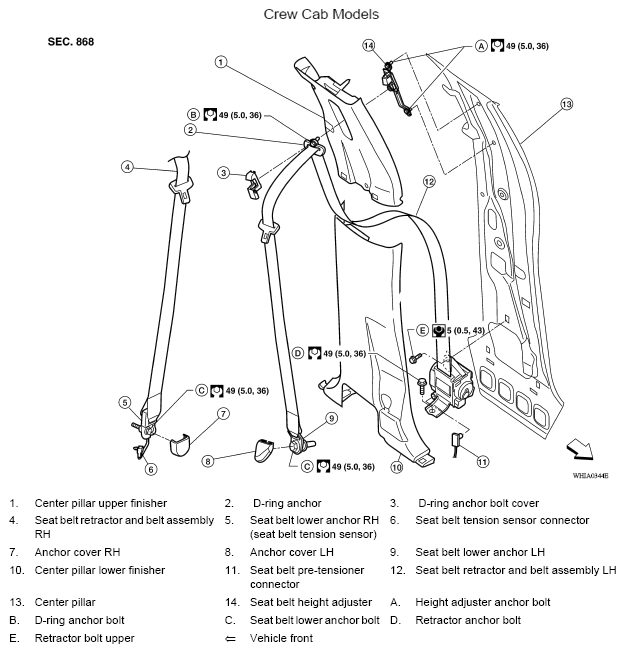

Fig 2: Exploded View Of Front Seat Belt - Crew Cab Models
G05884188Courtesy of NISSAN MOTOR CO., U.S.A.
