BCM (Body Control Module): Wiring Diagram

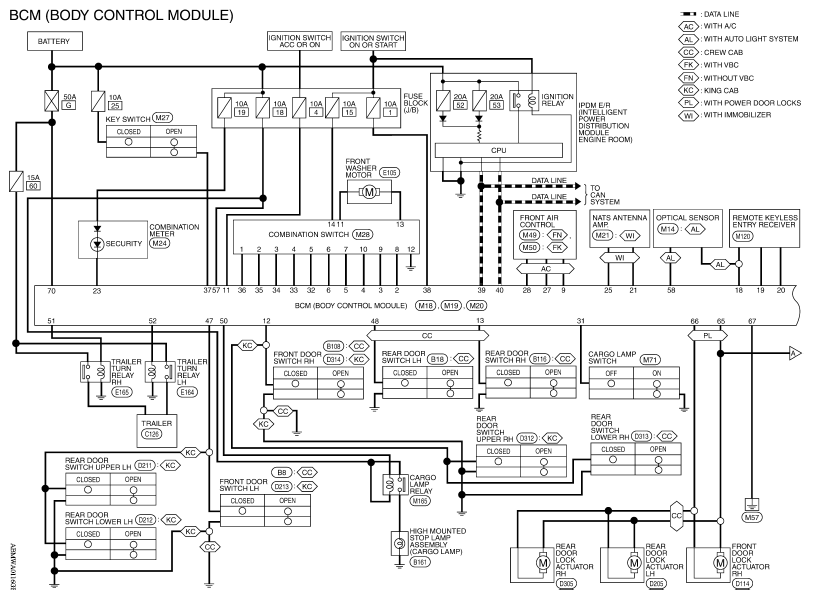

Fig 1: BCM - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

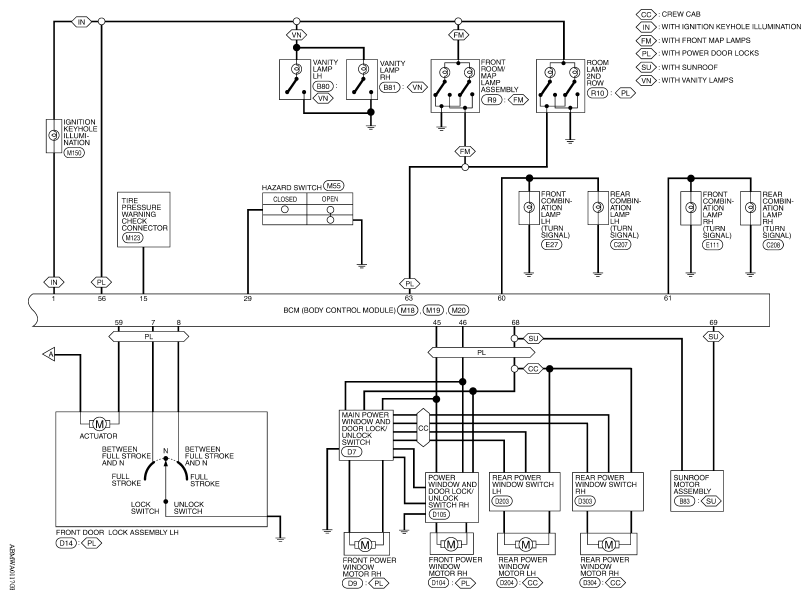

Fig 2: BCM - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

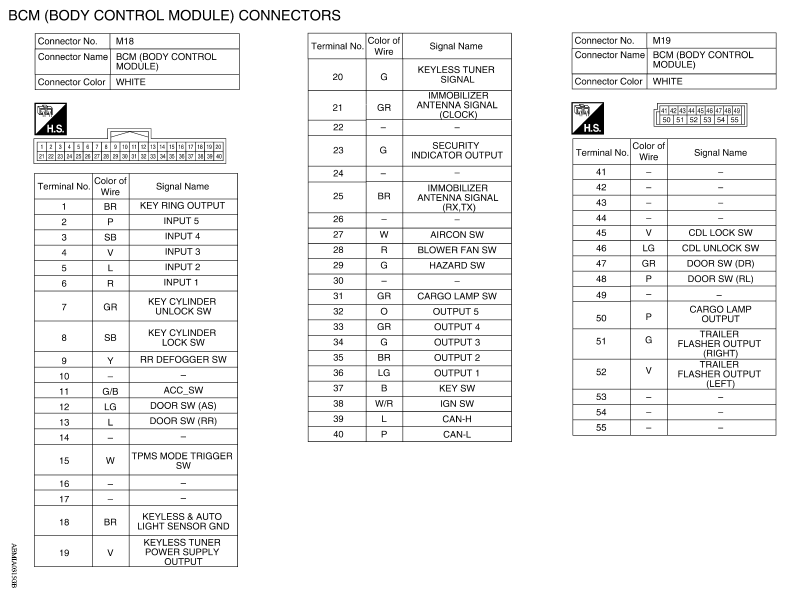

Fig 3: Identifying BCM Connector Terminals (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

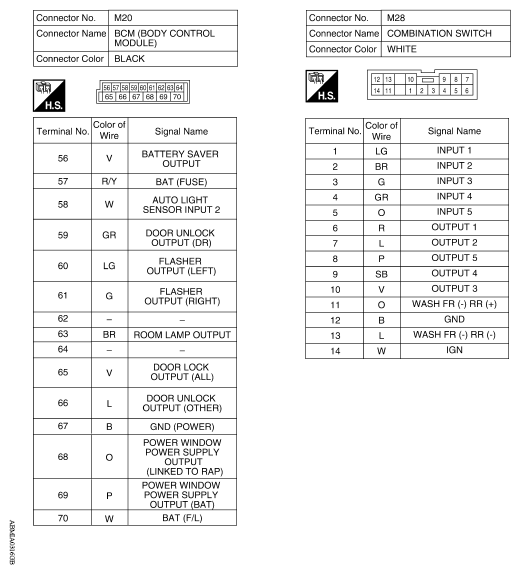

Fig 4: Identifying BCM Connector Terminals (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
