Component Parts Location

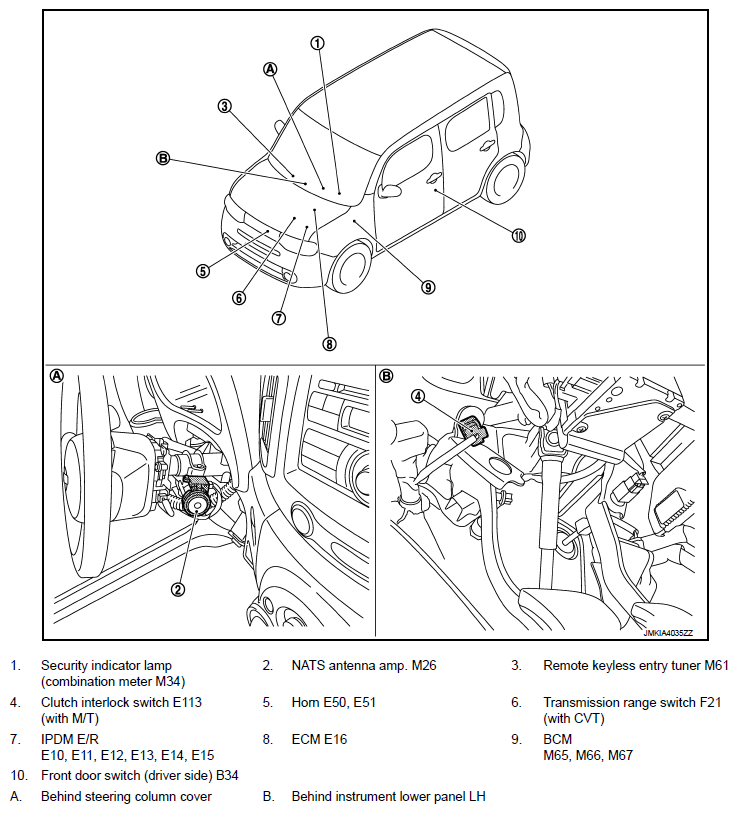

Fig 1: Identifying Vehicle Security System Component Location
G05916503Courtesy of NISSAN MOTOR CO., U.S.A.
