System Diagram

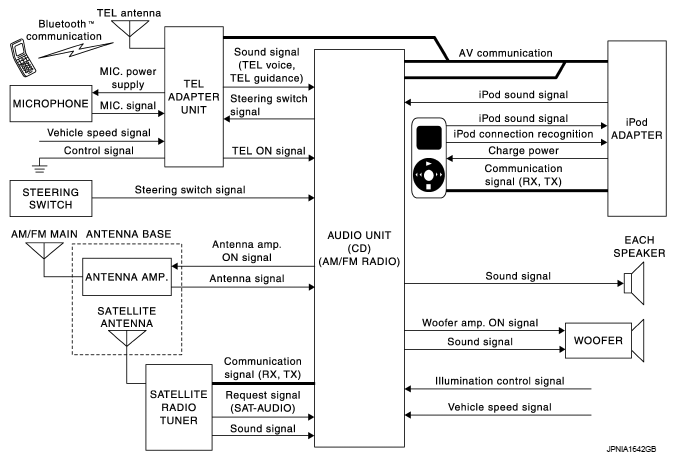

Fig 1: Connection Function And Hands-Free Phone System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.

Fig 2: Connection Function And Hands-Free Phone System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
