Engine Control System - Introduction
>>
Function Diagnosis
>>
SYNCHROREV Match Mode (S-Mode)
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

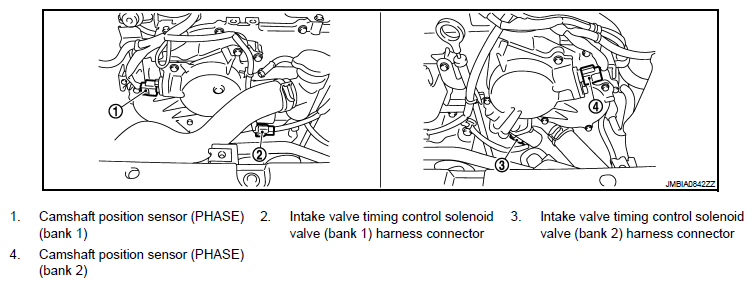

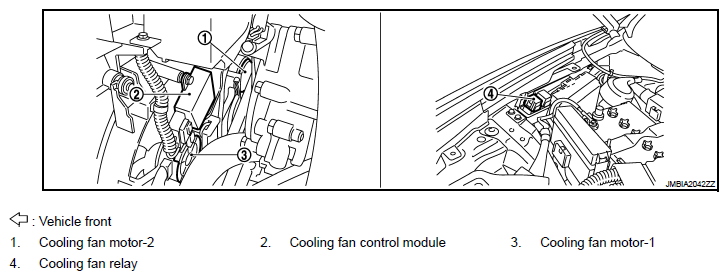

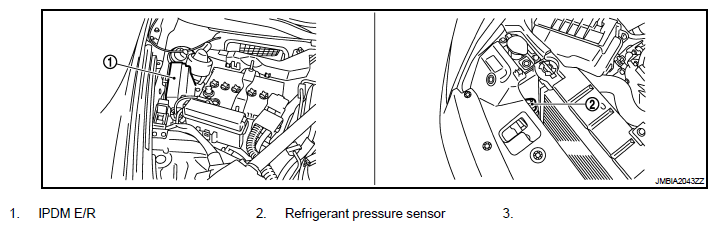

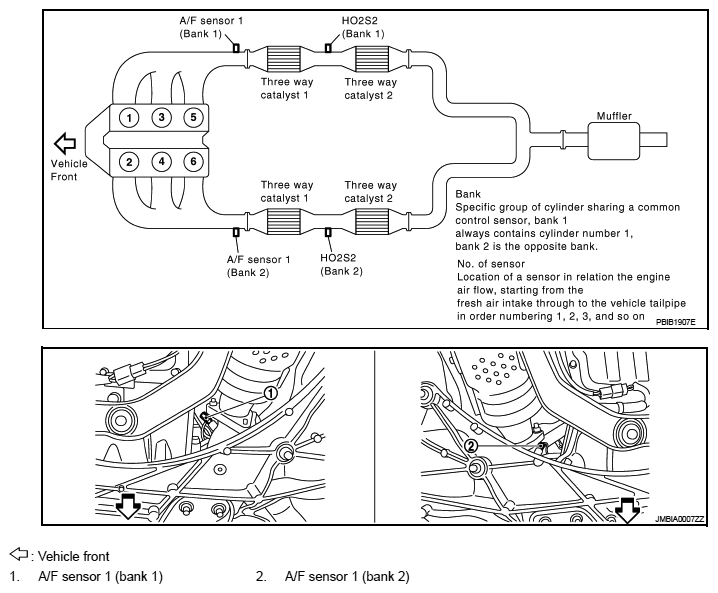

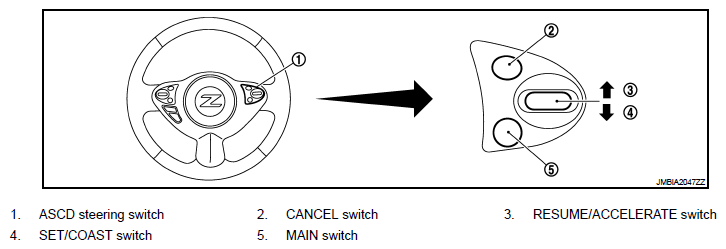

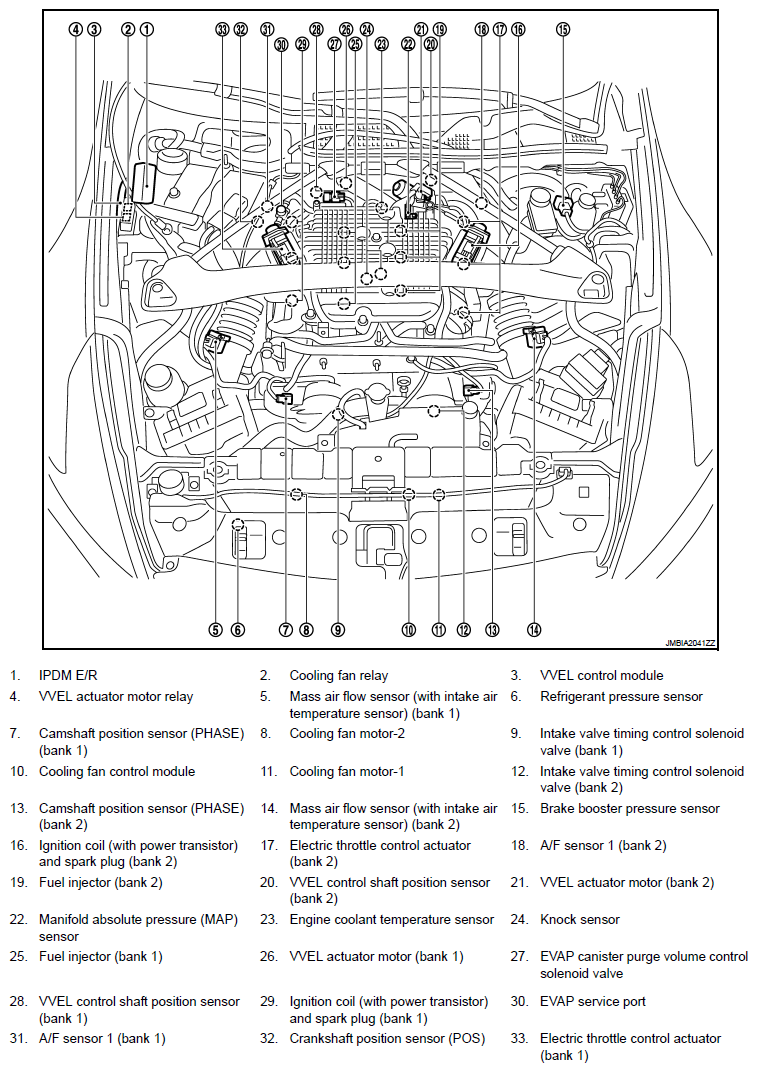

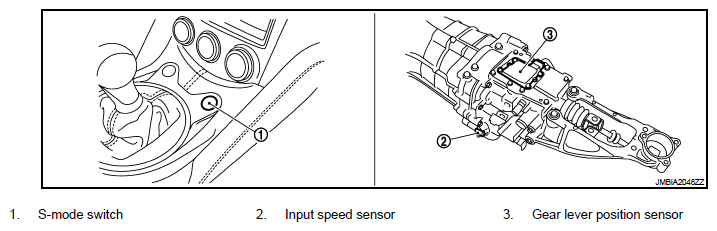

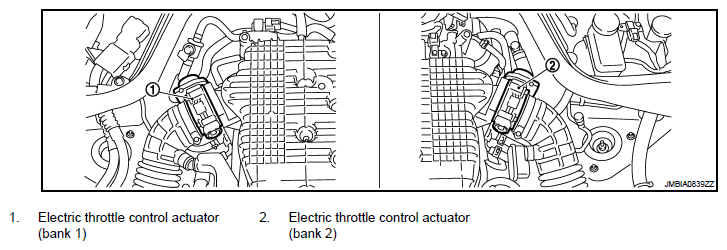

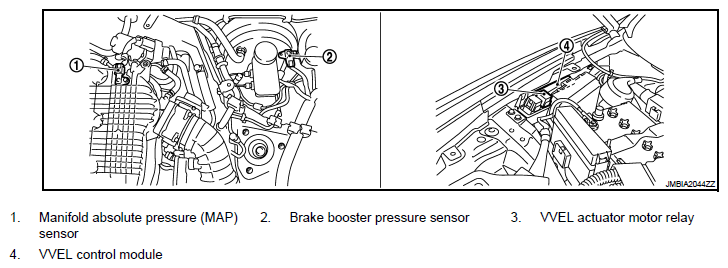

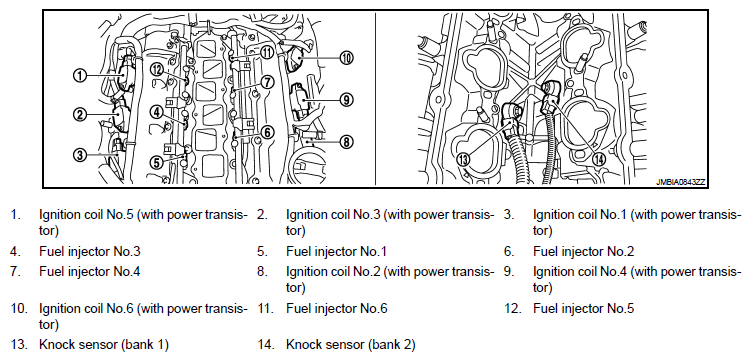

Fig 1: Identifying SynchroRev Match Mode (S-Mode) System Components Location (1 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

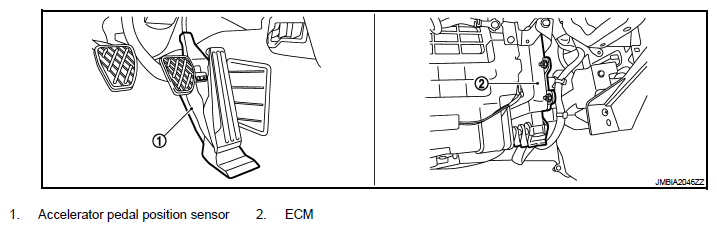

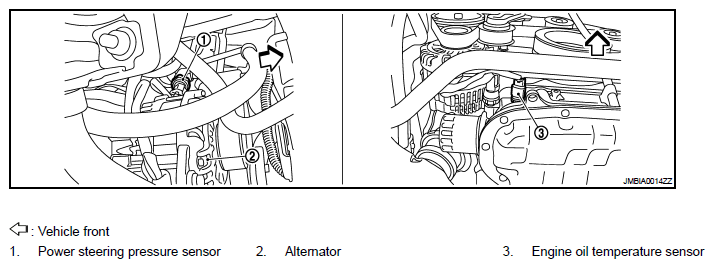

Fig 2: Identifying SynchroRev Match Mode (S-Mode) System Components Location (2 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

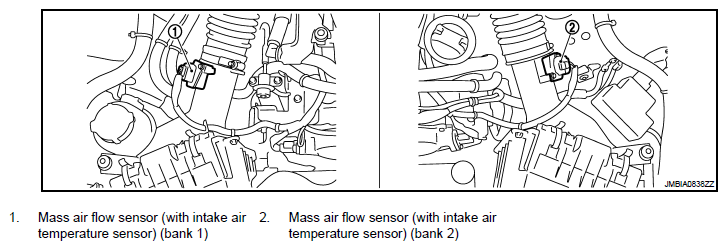

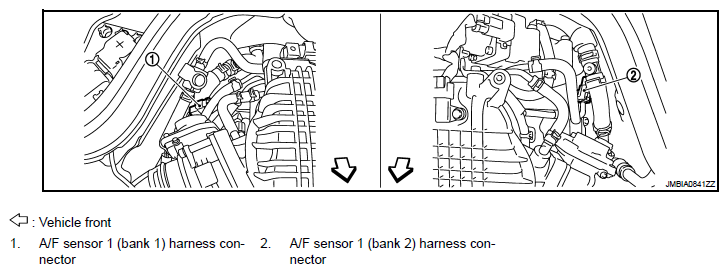

Fig 3: Identifying SynchroRev Match Mode (S-Mode) System Components Location (3 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

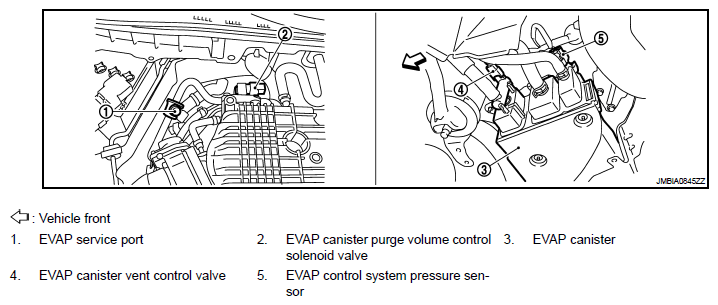

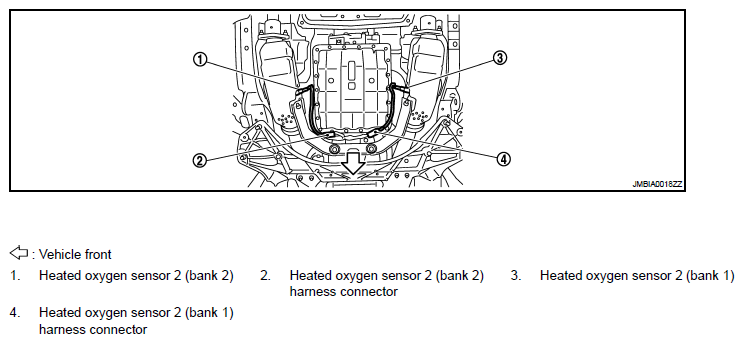

Fig 4: Identifying SynchroRev Match Mode (S-Mode) System Components Location (4 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

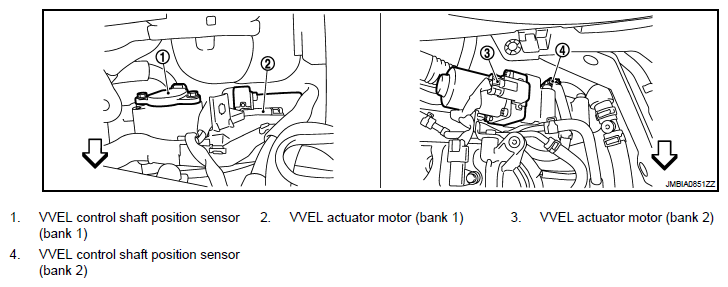

Fig 5: Identifying SynchroRev Match Mode (S-Mode) System Components Location (5 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

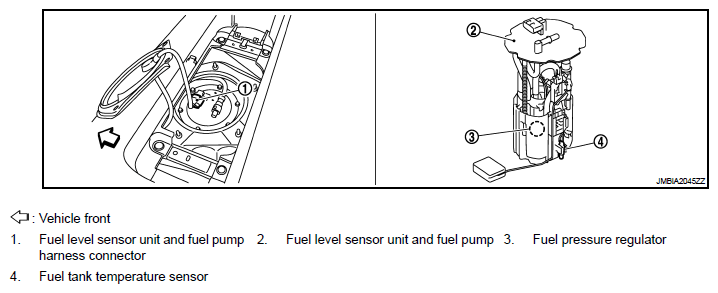

Fig 6: Identifying SynchroRev Match Mode (S-Mode) System Components Location (6 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

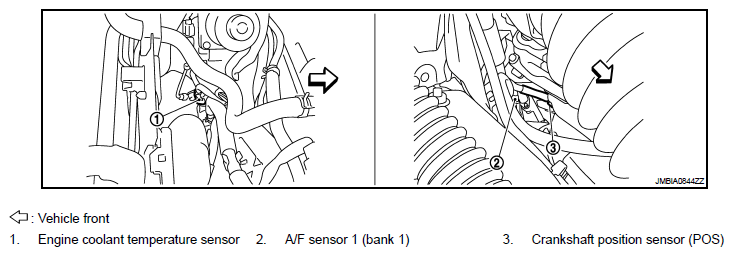

Fig 7: Identifying SynchroRev Match Mode (S-Mode) System Components Location (7 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.

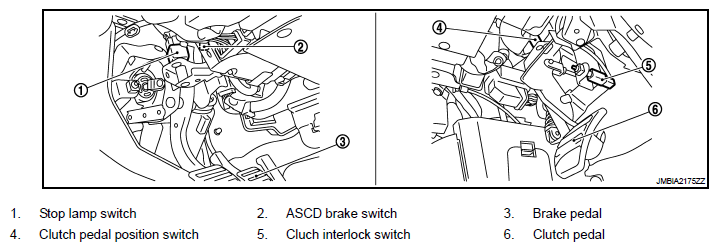

Fig 8: Identifying SynchroRev Match Mode (S-Mode) System Components Location (8 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Identifying SynchroRev Match Mode (S-Mode) System Components Location (9 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Identifying SynchroRev Match Mode (S-Mode) System Components Location (10 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Identifying SynchroRev Match Mode (S-Mode) System Components Location (11 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Identifying SynchroRev Match Mode (S-Mode) System Components Location (12 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 13: Identifying SynchroRev Match Mode (S-Mode) System Components Location (13 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Identifying SynchroRev Match Mode (S-Mode) System Components Location (14 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 15: Identifying SynchroRev Match Mode (S-Mode) System Components Location (15 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 16: Identifying SynchroRev Match Mode (S-Mode) System Components Location (16 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 17: Identifying SynchroRev Match Mode (S-Mode) System Components Location (17 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying SynchroRev Match Mode (S-Mode) System Components Location (18 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying SynchroRev Match Mode (S-Mode) System Components Location (19 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Identifying SynchroRev Match Mode (S-Mode) System Components Location (20 Of 20)
Courtesy of NISSAN MOTOR CO., U.S.A.
